Introduction

Welcome to ThrillTech's technology and integration documentation!

This document is structured as a searchable online book and aims to provide you, our partner, with all the technical information you need to build successful integrations, understand our platform and most importantly, have a readily available reference in the future.

To search from anywhere within the documentation, press s and enter your search term in the search box.

ThrillPots Overview

Welcome to the ThrillPots Integration Guide.

ThrillPots is an advanced standalone Jackpot Platform that allows casinos to offer their players jackpots over "everything". Be it offering a sitewide jackpot across games from various providers, to a seasonal Raffle jackpot for the 12 days of Christmas or even a Bad Beat jackpot for your poker players, ThrillPots can do it all (and more).

The goal of this guide is to make integrating with ThrillPots as painless as possible by providing you, the technical reader, with all the information you need and taking you step by step through a standard integration process.

Release Notes - September 2025

IMPORTANT: As with most of our releases, the intent is that all packages are deployed to their latest versions (stipulated in Docker Images (beta images)).

• General
• New Features
• Changes/Improvements
• Bug Fixes
• Docker Images

General

This release is not mandatory

BREAKING CHANGES

The following updates may represent breaking changes in your existing integration. Please review the release notes carefully and if you have any doubts, feel free to reach out to your technical point of contact.

• ThrillPots:

  • New indexes on large collections. Namely log_contributions collection was upgraded with new indexes that might slow down the booting time of the service. We recommend applying those indexes off-band prior to upgrading to September release. Script for index creation here

  • Previously, contributions where the base_wager was zero would be rejected. This constraint has been relaxed to only reject contributions where the base_wager is less than zero. This has been done to support more intuitive semantics for jackpot contributions that are not driven by wagering or financial activities.

• ThrillConnect:

  • When retrieving instances by source, for jackpots that have specific support for alternate currency minimum bets will now have an additional field contribution_values_alt in the response which contains the minimum bet per alternate currency.

• ThrillGate:

  • Transaction requests have 2 additional fields added to them: bonus_amount and bonus_id:
    • bonus_amount indicates how much of the total bet was funded by bonus money
    • bonus_id indicates the bonus ID that was applied for the transaction. If not bonus was applied, bonus_id will be null.
  • [BETA2] metadata (optional) field added to AuthRequest, AuthResponse and CancelBetRequest.

INFRA + DATABASE CHANGES

• ThrillOffice: New set of ENV variables required to define a secondary, read-only connection to ThrillGate DB. Full list here.
• [BETA2] thrilloffice.top_players collection has had a new index added ("metadata.instance_id", "_id")
• [BETA2] thrillpots.log_contributions collection has had a new index added ("data.brand_id", "timestamp")
• [BETA2] thrillpots.optinout collection has had a new index added ("data.brand_id", "timestamp", "data.player_id")
• [BETA2] thrillgate.player_bonuses collection has had an index change:
  • ("player_id", "operator_id", "brand_id") -> ("operator_id", "brand_id", "player_id")

New Features

ThrillPots

• Added the ability to have all brands in organisation hierarchy beneath the instance's owner as allowed_brands. This is achieved by using the new instance_org_bound flag on the Instantiate Template API and setting it to false (the default is true).
• Added per route request count metrics on thrillpots gateway;
• Jackpots that support multi-currency contain minimum contribution amounts per currency when fetched;
• New V2 API added: [Batch Add/Remove Allowed Brands for Jackpot Instances]
  • Add Allowed Brands:
  • Remove Allowed Brands:
• [BETA2] Advanced Diversion Pools
  • Diversion pools now support targetting multiple targets for funds diversion (before only one target was possible)
  • When diverting funds to another Jackpot Instance, the new system respects the seed and pot funding rulesets
  • Non-progressive and capped-value jackpots are correctly supported

ThrillGate

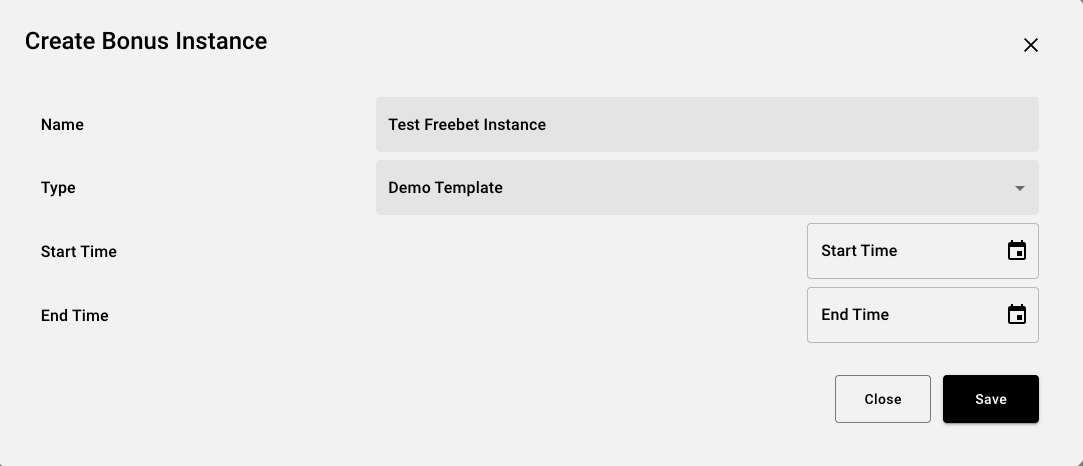

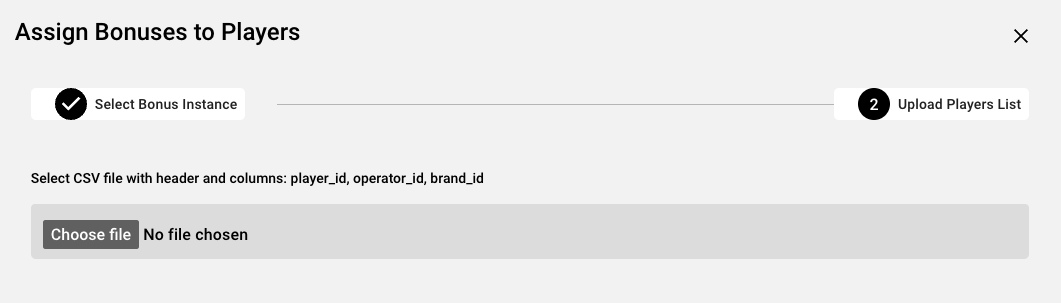

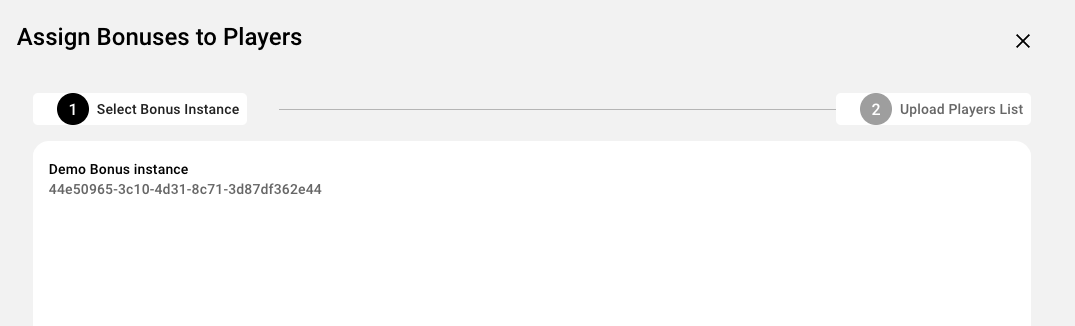

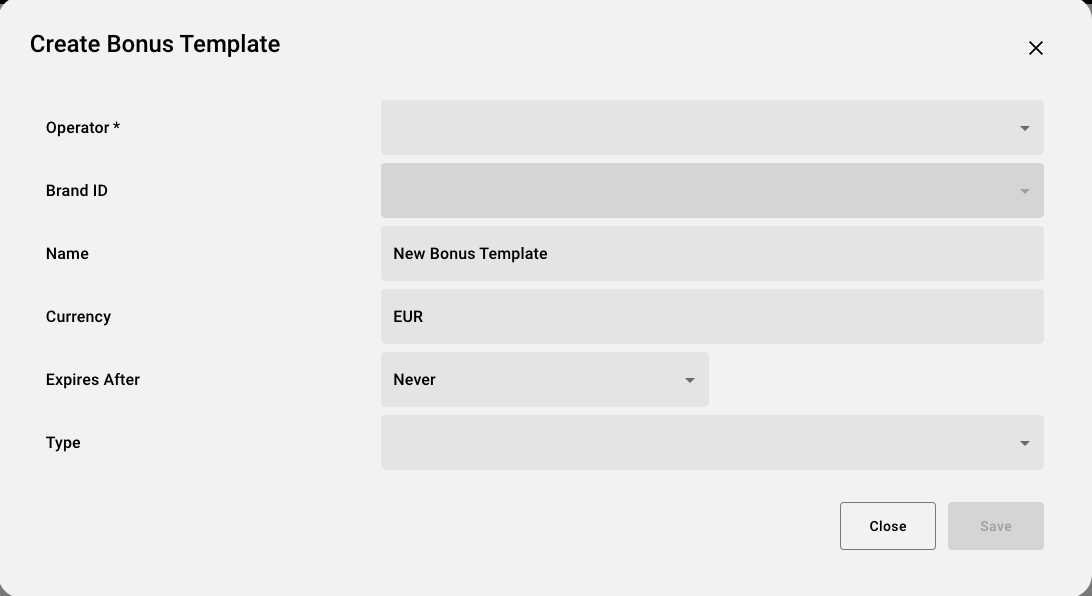

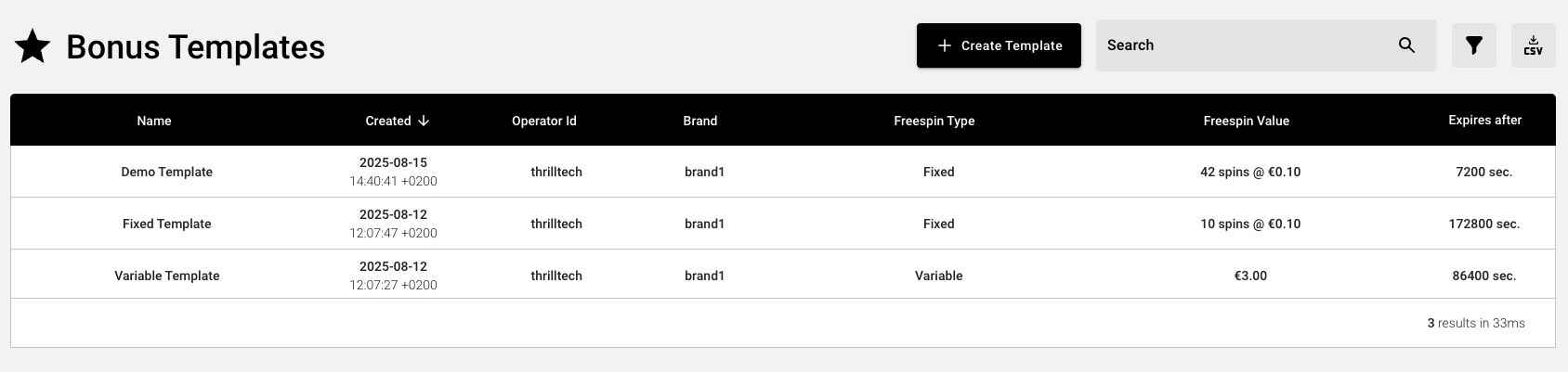

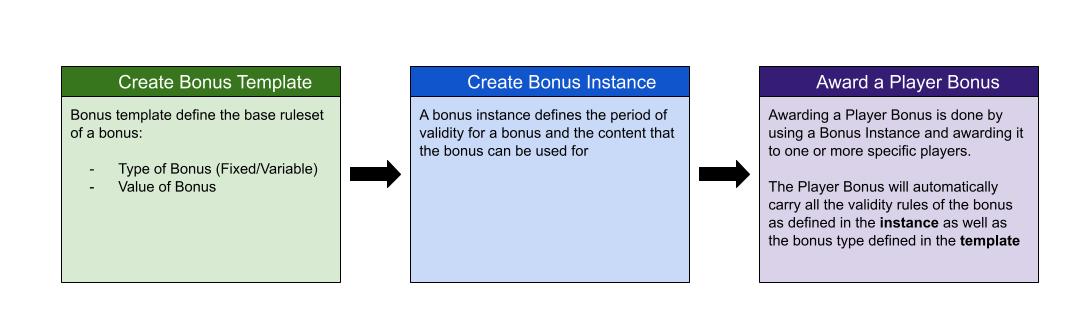

• Jackpot Freebets

  • It is now possible to award Jackpot Freebets to players. These act similar to promotional free spins in a normal game and can be configured in different ways. For more information on the new free bets system, follow this link
  • Transaction requests have 2 additional fields added to them: bonus_amount and bonus_id:
    • bonus_amount indicates how much of the total bet was funded by bonus money
    • bonus_id indicates the bonus ID that was applied for the transaction. If not bonus was applied, bonus_id will be null.
  • The amount field on the Transaction Requests should be treated as usual - it indicates how much money should be debited from the player's wallet.
    • To calculate the total value of the contribution, you must now use:
      • When bonus_id is populated: amount + bonus_amount
      • When no bonus_id is populated: amount

• Raffle Leaderboard-based Payouts

  • Previously raffles would resolve using a standard random ticket selector. This would theoretically improve the chances of players that had high numbers of tickets but the wins would not be guaranteed
  • Raffles now support Leaderboard-style payout mechanics which pay players based on how many tickets they have earned

• [BETA2] Added support for asynchronous credit flows when processing zero-value credit transactions

ThrillOffice

• Support for delegated OAuth based authentication

  • It is now possible to provision accounts to make use of a configured OAuth Provider. Check the API docs for setting up OAuth Provider.
  • Supported providers:
    • Google
    • KeyCloak
  • Providers not tested but expected to work:
    • Microsoft
    • Auth0

• Wallet Integration Tester (beta)

  • An automated wallet integration tester has been added to ThrillOffice > ThrillGate to allow technical team to perform wallet-integration specific testing.
  • To access it, hover over the ThrillGate icon on the left of the screen, and click on the Wallet Configuration menu item
  • You should see a list of configured wallets
  • Click the three dot button on the right of the wallet you wish to test and select the Test Wallet Integration option
  • Fill in the form, providing a valid player token, an invalid player token and a usable wallet currency and then click Run Test
  • You should see the results of the tests shown, giving you an indication of compliance on the integration

• Added Player Country as a filter for Winners, Transactions and Optin reports

• Added Instance and Brand filters for Dashboard view

• Brand filters for reporting views have been completely reworked. Brand selection is now done via the Filters slide and allows multi-select

• Bets distribution widget in Dashboard now features a shortcut to Transactions view

• Reconciliation View now exposes per brand data for all periods via the Download Contribution Data action

• [BETA2] Support for bonus information in the ThrillPots > Transactions reports

• [BETA2] Support for retrieving additional information (including metadata and wallet transaction IDs) for Jackpot Contributions

Changes/Improvements

ThrillPots

• Added validation for empty instance_id on latest winners APIs;
• Added the ability to copy allowed_brands of a jackpot instance when doing model switches;
• Diversion pools now support diverting funds between jackpots and systems of differing currencies
• Percentage-based Jackpots have received some improvements:
  • It is now possible to ensure that a minimum contribution amount is contributed regardless of how low the player's base wager is
  • The variable contribution system now fully supports percentage based jackpots using the exact same approach as the fixed contribution jackpots.
• [BETA3] Improved seed-deficit tracking on a per-pot basis.
• [BETA3] Seed deficits are now part of the RTP calculation

ThrillPots Gateway

• Added additional metrics for the webhook callbacks when using async contributions:
  • contribution_webhook_errors
  • contribution_webhook_time

ThrillGate

• Improved ability for age-restricted bet limits to be specified. In previous versions it was required to send a player's date of birth, which is not ideal when it comes to PII data.
  • In this release, the platform has the capability of specifying what the max bet limit is for any player as part of the SWAuthResponse payload using the newly added (and optional) max_bet field.
• [BETA2] Improved caching strategy for certain "hot objects"
• [BETA2] metadata (optional) field added to AuthRequest, AuthResponse and CancelBetRequest.

ThrillConnect

• If jackpots are configured to support "alternate currencies" to enable the Always Fair Multicurrency system, when retrieving instance details you will now receive the instance with a new field, contribution_values_alt which contains the configured minimum bets per alternate currency.
  • An example may look like this:

  {
      "id": "664c8e3c-055b-4c5d-8645-8e4704ca1176",
      "currency": "EUR",
      "opt_in_required": true,
      "opt_in_per_currency": true,
      "contribution_type": {
          "Fixed": 0.1
      },
      "contribution_values_alt": [
          {
              "currency": "GBP",
              "value": 0.1
          },
          {
              "currency": "USD",
              "value": 0.1
          },
          {
              "currency": "JPY",
              "value": 15.0
          },
          {
              "currency": "SEK",
              "value": 1.0
          }
      ],
      ...
      "timestamp_start": null,
      "timestamp_end": null,
      "status": "Active"
  }



ThrillOffice

• Introduced organization tree filter to replace brand tabs in views
• [BETA3] Improved memory usage and performance for Top Player reports
• [BETA3] Smoother main and submenu navigation.
• [BETA3] Link to Contributors reports added to ThrillPots submenu.
• [BETA3] Player IDs in Dashboard top player widgets are now clickable and lead to Contributors reports, filtered by the player ID.
• [BETA3] Auto refresh button added to Contributors reports.

BitBridge

• Addressed the issue of error log spamming as false negatives from the bitbridge.message_log collection
• [BETA3] Improved support for micro-currency configuration (eg mETH, mBTC, mSOL etc)

Bug Fixes

ThrillPots

• Added validation for empty instance IDs when retrieving latest winners

Docker Images

ThrillPots Terminology

Before you start integrating, it would helpful to understand the terminology that is used in the context of ThrillPots.

System Architecture

The ThrillPots system has 3 primary integration points:

• Betting integration: Event-Processor >> ThrillPots Gateway
• Wallet integration: ThrillGate >> Wallet
• Frontend integration: Frontend << >> ThrillConnect

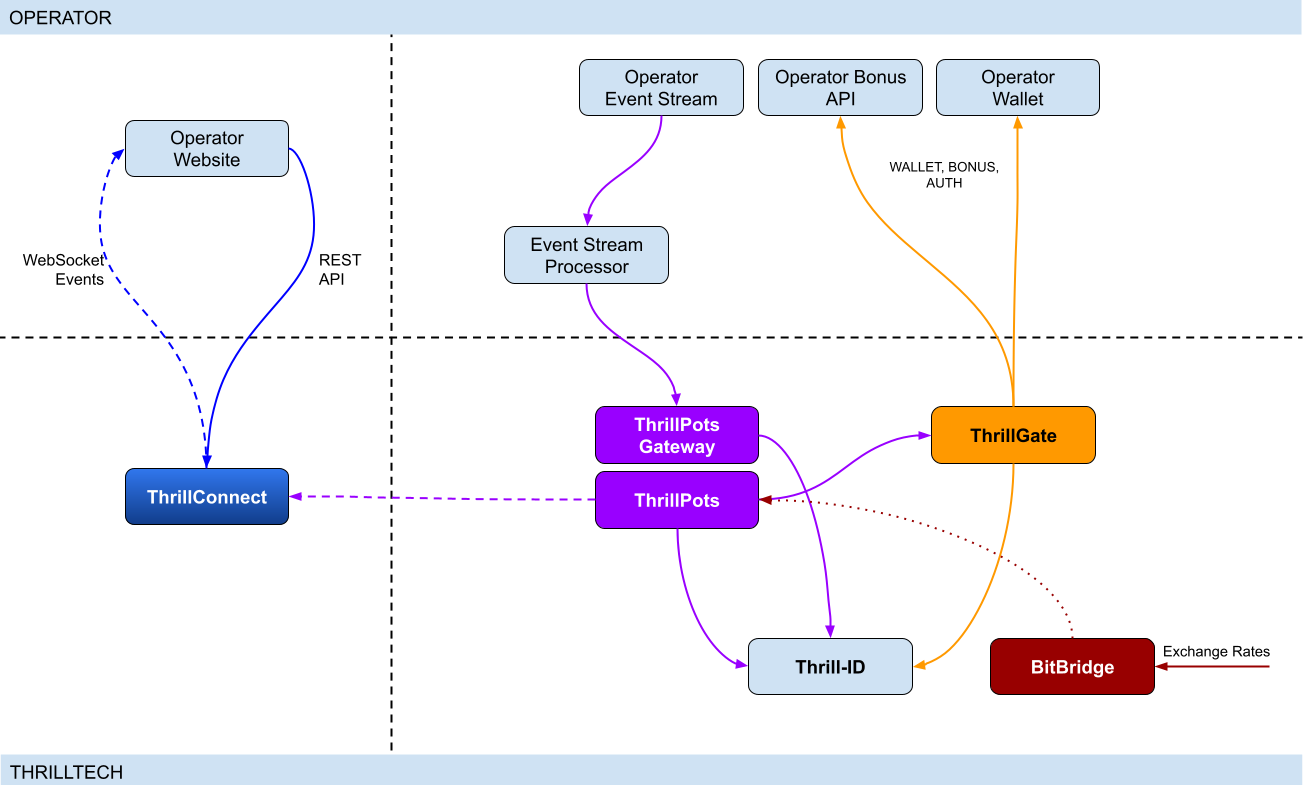

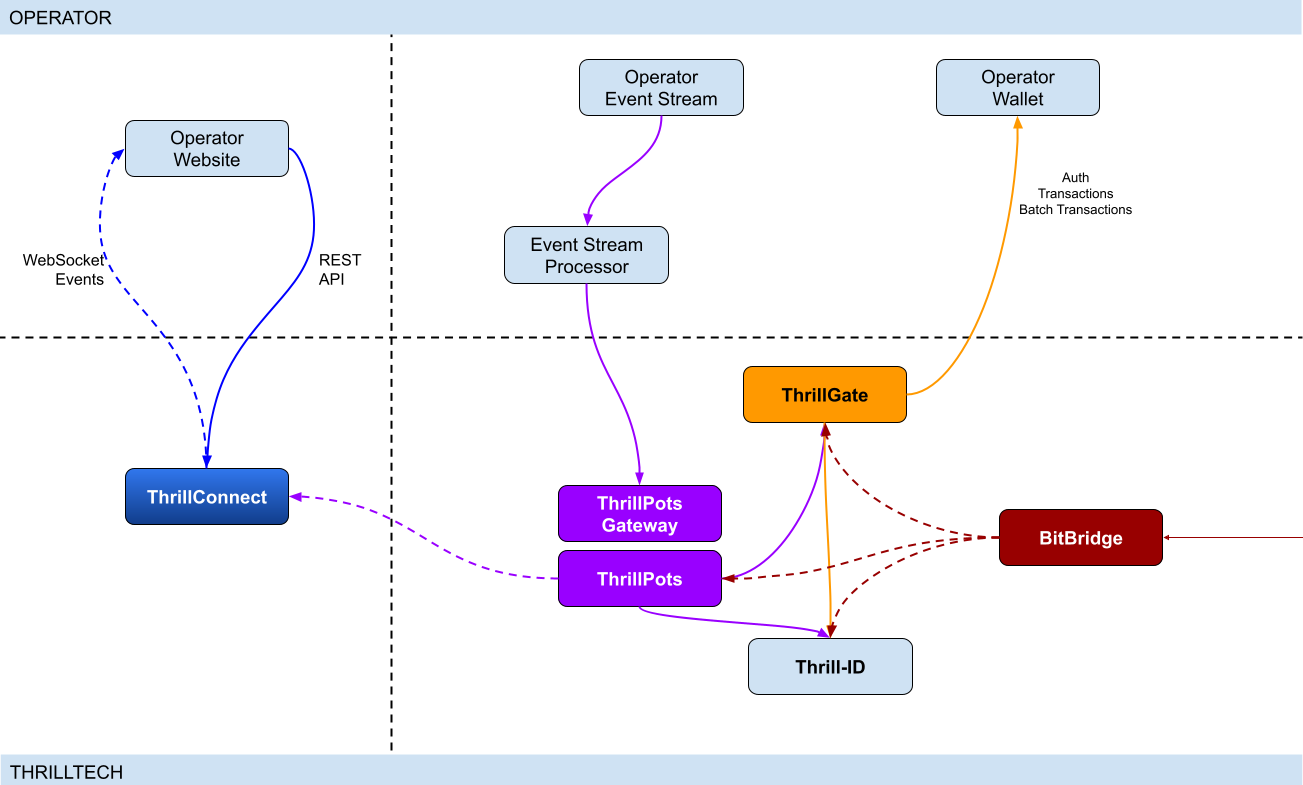

At a high level, the diagram below provides a visual representation of the ThrillPots System Architecture:

Integration points

ThrillPots has 3 primary integration points. This section will discuss each integration point and explain the purpose for each.

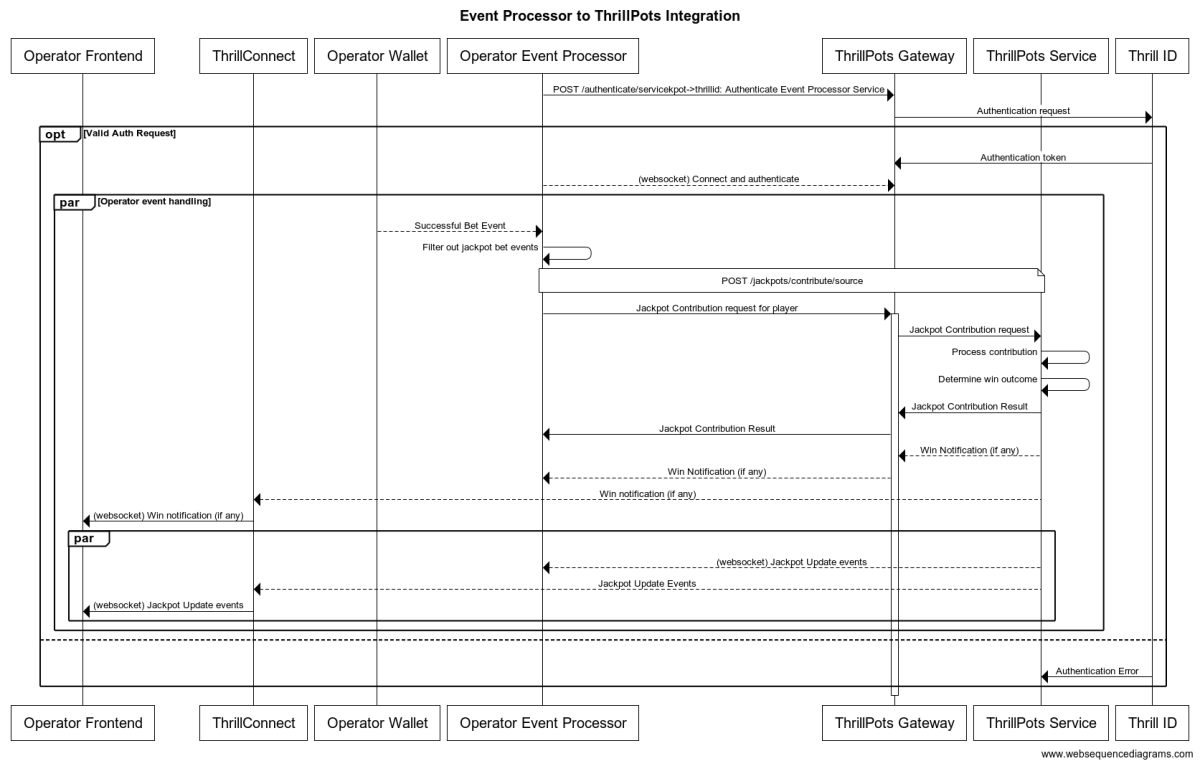

Betting integration

When it comes to Jackpot contributions, unlike normal games, player's do not make direct bets to jackpots. Rather, bets (contributions) are made on behalf of players via the operator's backend system.

Let's imagine a hypothetical casino where the operator has deployed a sitewide jackpot which is available to all players and is active across all casino content available on the site. The jackpot will receive a contribution bet each time a player makes a bet on any of the games on the site.

In order for these contributions to be made on behalf of the player, a simple event processor needs to be deployed that receives player game play / bet events and for each event makes a contribution request to the ThrillPots system.

In most platforms, this can be achieved by building a Kafka, RabbitMQ (or similar) event/stream processor which subscribes to the relevant topic/channel and makes REST API calls for each relevant event received. For platforms that do not have a message or event bus available, these events could be dispatched to the event processor via an alternative RPC mechanism such as REST, gRPC etc. This decision is all up to you, the integrating platform.

To learn more about this part of the integration, go to Event Stream Integration

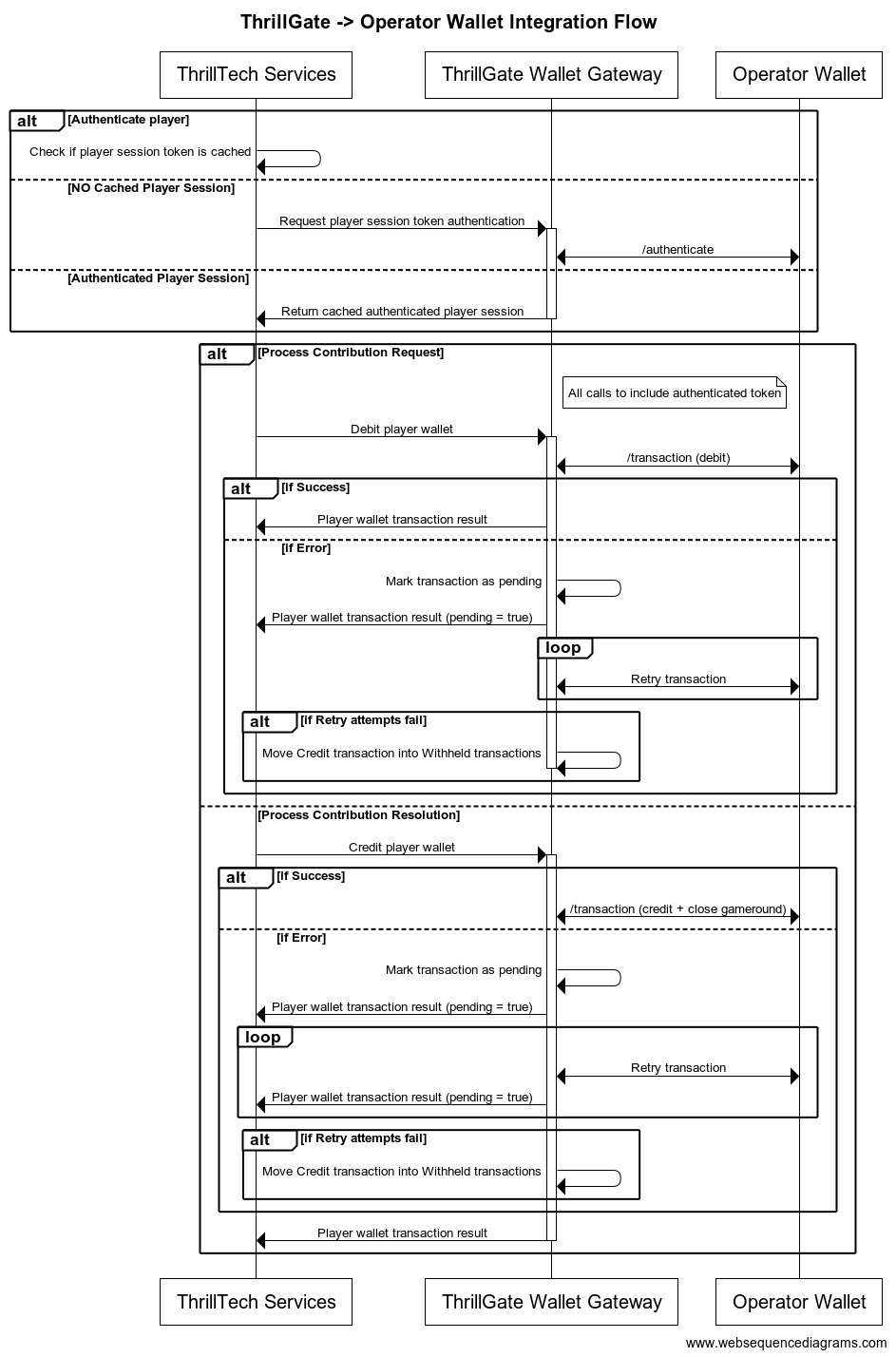

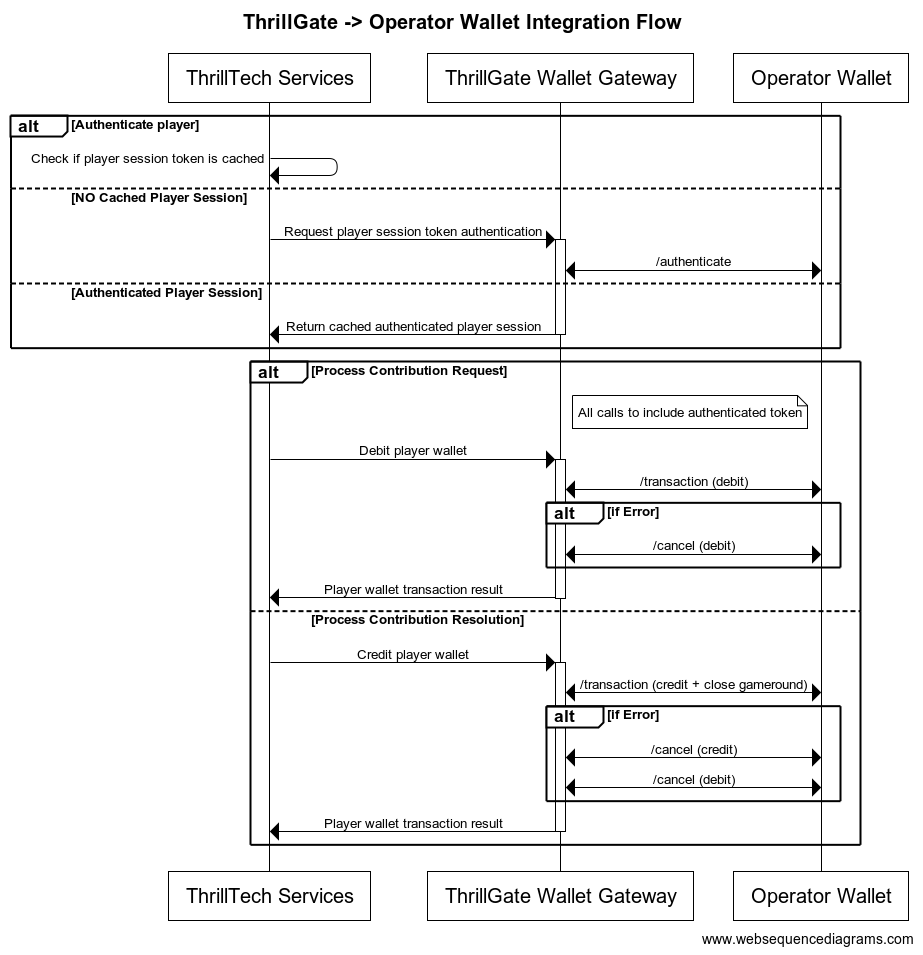

Wallet Integration

When it comes to the wallet integration for ThrillPots, this integration is almost the same as any game provider integration. The wallet integration covers the following flows:

• Player token authentication
• Single Transactions (Debit & Credit)
• Batch Credit transaction (Multi-player payouts)
• Transaction cancellation

Integration is done against the ThrillGate service and can be performed in either direction (operator-to-provider or provider-to-operator).

To learn more about this part of the integration, go to Wallet Integration

Operator-to-Provider

If you decide to do an operator-to-provider integration, you will need to expose the endpoints required by the ThrillGate Standard Wallet Interface. All documentation can be found in the ThrillGate Standard Wallet Integration API documentation.

If you prefer for ThrillTech to integrate to your wallet API (provider-to-operator integration), you will need to provide the APIs and an integration environment for ThrillTech to develop the integration.

Frontend Integration

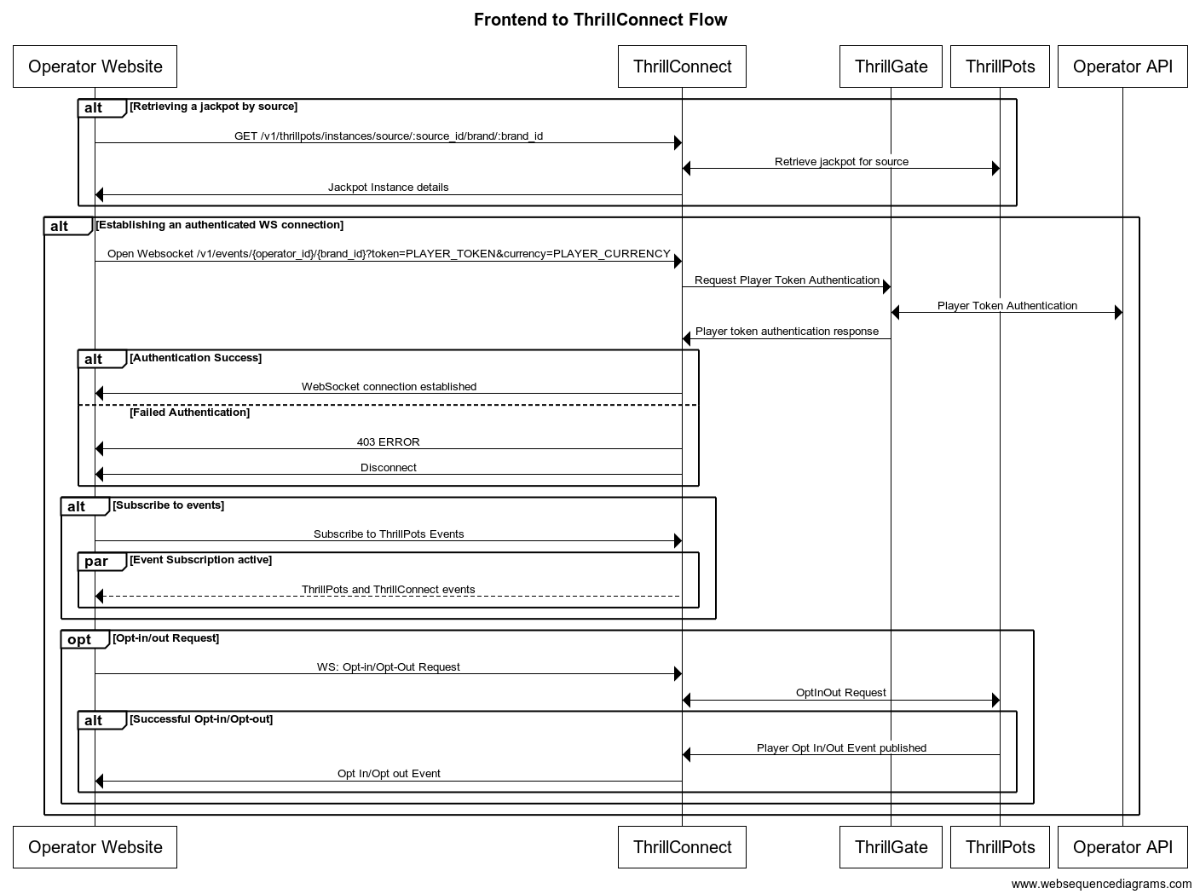

The ThrillConnect service is designed to support all frontend integrations. It exposes both a REST API (for end-user functionality like opt-in) as well as a WebSocket event stream for ad-hoc messaging and event broadcasts.

It is suggested to make use of the ThrillConnect JS API middleware layer which can easily be included in your site's code, freeing you up from the integration details and allowing you to focus on the visual and UX of the presentation layer.

To learn more about this part of the integration, go to Frontend Integration

Integrating ThrillPots Overview

The ThrillPots integration is best described as a 3-step process which is comprised of:

1. The event stream integration
2. The wallet integration
3. The frontend integration

We suggest that before you dig into any of the three sections above, that you take the time to read this overview as it contains important information and pre-requisites that are needed for a smooth integration process.

PRE-REQUISITES

The rest of this guide assumes the following:

1. You have the ThrillPots AIO Development container running and available. See this section for information on how to do this.
2. You have a way to communicate with the services in the AIO Container (for example curl or Postman or similar tool)

Authentication and Authorization

Prior to making any calls to the ThrillPots service APIs, you need to authenticate with the ThrillTech platform using credentials that have been provisioned for you.

The ThrillTech platform uses a centralised authentication technology called Thrill-ID which provides governance over both User and Service accounts.

For integration purposes, you will need to provision a Service account (if one has not been provisioned for you yet). To learn more about provisioning accounts, please refer to the Thrill-ID documentation.

For an example of a Service account that would be suitable for the event stream integration service, see here

Setting up the AIO Container

The ThrillPots AIO Container is comprised of all the services necessary to run the ThrillPots platform from a single docker container.

The services made available are:

• ThrillPots Gateway (integrate your event/stream processor here)
• ThrillPots Service (the heart of the jackpot platform)
• ThrillGate (used to integrate with or to wallet APIs)
• ThrillConnect (integrate your frontend with this service)
• BitBridge (used for external data source integrations like exchange rates providers)
• ThrillTech Backoffice
• MongoDB
• Redis

The AIO container was designed to enable developers to deploy the entire ThrillPots stack on their local development machines on in a development environment quickly and easily.

In-Service Swagger UI

Each service provides access to a Swagger-UI for its API. Apart from ThrillConnect, which is an edge service, Swagger-UI support is compiled in to all the services and accessible via the /swagger-ui path.

ThrillConnect Swagger UI

Since ThrillConnect is an edge service and generally made available to the public internet, swagger-ui needs to be enabled via an environment variable.

In order to enable the /swagger-ui endpoint for the ThrillConnect service, you must set the TCS_ENABLE_SWAGGER environment variable to true.

Setting up the AIO Container: Pre-requisites

This short section explains the pre-requisites you will need in order to be able to setup the AIO container.

Pre-requisites

You will need the following software on your development machine:

Mandatory:

• Docker (or alternatively Docker Desktop)
• Postman

Optional:

Some type of MongoDB UI. We recommend you use MongoDB Compass

GitHub Access

You will need to have a GitHub account that has been granted access to the ThrillTech GitHub Organisation. This step is usually done as part of the initial technical kick off. As part of this access, you are granted access to repositories and packages that are needed.

Once you have provided ThrillTech with your Github account and we have added you as a collaborator, you need to have a Github Personal Access Token (classic) with permissions to read packages.

Go to your account's Settings -> Developer Settings -> Personal Access Tokens -> Tokens (classic) and create one.

(Click your avatar circle on the top right part of Github, click "Settings" and then "Developer Settings" is located at the bottom on the right of the menu of your account)

The only right it needs to have is to read packages.

Log in to our package repo and give your github username and the token your just created as password when prompted

  docker login ghcr.io/thrilltech-io

Setting up the AIO Container: Initial Setup

Setting Up

Once you have provided ThrillTech with your Github account and we have added you as a collaborator, you need to have a Github Personal Access Token (classic) with permissions to read packages.

Go to your account's Settings -> Developer Settings -> Personal Access Tokens -> Tokens (classic)nd create one.

(Click your avatar circle on the top right part of Github, click "Settings" and then "Developer Settings" is located at the bottom on the right of the menu of your account)

The only right it needs to have is to read packages.

Log in to our package repo and give your github username and the token your just created as password when prompted:

docker login ghcr.io/thrilltech-io

Once you have successfully authenticated with the repository, you are ready to continue with the steps to getting the ThrillPots Dev Container running:

1. Clone the https://github.com/thrilltech-io/dev-containers repository
2. Go to the /thrillpots folder in the repository and execute: docker compose up -d

NOTE: If you are running on MacOS on Apple Silicon, you may need to enable x86_64/amd64 emulation. Do this by going to Docker Desktop's settings -> General and finding the option called "Use Rosetta for x86_64/amd64 emulation on Apple Silicon" and enable it.

This will download all the necessary packages and run them via Docker Compose. This process may take a few minutes to complete

3. Import the provided Postman collection (ThrillPots AIO Setup.postman_collection.json) which can be found in the repository into your Postman application
4. You will notice that it contains a number of endpoints, all numbered. The numbering indicates the sequence in which you must execute the calls.

5. Execute all the steps in order

Once complete, you will have a ThrillPots system running and configured in 'standalone mode'. This means that you can make contributions and interact with the system, but there will be no external wallet calls made for player authentication or transactions.

In this mode, valid player IDs are in a range: [player_00000 ... player_00999]

As part of the steps, you will also have created a Jackpot Template, and from this template you created a Jackpot instance. Jackpot Instances are the "running jackpots" that players contribute to. You also made a contribution directly to the jackpot.

You would also have created a Source and mapped the Jackpot Instance to the source and successfully made a contribution to the jackpot via the Source

The final step in the setup was the creation of an Internal mock wallet in ThrillGate. In a later section, where wallet integration is discussed, you will change this configuration to allow connectivity to your own wallet service, but for now, this mock wallet implementation is enough to get started with.

ThrillPots Wallet Configuration

IMPORTANT

Please note that when you change the wallet configuration for the ThrillPots service, you MUST restart the ThrillPots service for the changes to take effect.

Setting up the AIO Container: Admin Accounts

By default, the system is configured with an admin account called admin@thrilltech.io. This account has the ability to control all resources for the thrilltech oorganisation. You will have noticed that in all of the setup steps above, the owner_id or brand_id values were either thrilltech or thrilltech:brand1.

The ThrillPots system implements a "resource ownership" model which ensures that jackpot objects are not modifiable by unauthorized accounts.

Have a look at thrilltech:brand1. The first part before the : is the "organisation" or "operator id". The second part after the : is the "organisational unit" or "brand".

Creating a new ThrillPots admin account for a different organisation

If you want to create and manage ThrillPots resources for a different organisation/operator, you will first need to create a new orgnisation and admin account for that organisation. All of these actions are done through Thrill-ID.

The next steps assume that you are authenticated as admin@thrilltech.io (as per Step 0 in the setup steps)

1. Create a new organisation

We first need to register a new organisation in Thrill-ID. For the purposes of this example, lets create a new organisation called "new-operator" which has 2 casino brands: new-mega-casino and new-mega-sportsbook.

To do this, make the following call to Thrill-ID:

POST http://localhost:9000/admin/organisations

Header: Authorization Value: Bearer AUTH_TOKEN_FOR_ADMIN@THRILLTECH.IO

Body:

{
    "id": "new-operator",
    "units": [
        "new-mega-casino",
        "new-mega-sportsbook"
    ],
    "enabled": true,
}

You should receive a 200 OK.

Now we can create the new admin account for the new organisation

2. Create a new admin account

To create a new administrator account for the new-operator organisation we just created, we need to make another call to Thrill-ID, this time to create the actual account:

POST http://localhost:9000/admin/accounts

• Header: Authorization
• Value: Bearer AUTH_TOKEN_FOR_ADMIN@THRILLTECH.IO

Body:

{
    "account_type": "User",
    "username": "admin@new-operator.com",
    "password": "password",
    "org_unit": {
        "org_id": "new-operator"
    },
    "permissions": [
        {
            "system_id": "thrillpots",
            "permissions": [{
                "resource_id": "*",
                "permission": "Admin"
            }]
        }

    ]
}

You should receive a 200 OK along with a response body showing you the newly created account.

3. Test the new admin account

Go back to Step 0 in the setup instructions and change the username and password to the new accounts username and password and try to authenticate. If everything went right, you should receive a new token for the account and can now proceed with managing ThrillPots resources for the new-operator organisation.

Once you are authenticated with the admin account for the new-operator organisation, you will be able to create Jackpot templates, instances, sources etc for the new-operator organisation.

NOTE: In previous versions of the platform, you also needed to configure the operator and brand separately in ThrillPots and ThrillGate. This is no longer needed since all services synchronise themselves with the Organisational structures defined in Thrill-ID

Event Processor Integration

In this section, we will discuss the Event Processor integration component that is required in order to enable the ability to make contributions to jackpots.

In general, this integration component needs to be able to receive the events that will drive jackpot contributions on behalf of users/players.

In a standard ThrillPots-powered system, it is usually gameplay that causes jackpot contributions to be made on behalf of players, but you are not limited to just this single use case.

From a simplistic perspective, the general logic should look something like this:

Authenticate your integration service with ThrillPots Gateway
Subscribe to gameplay/bet events from your event stream
When an event is received from your event stream:
    - Read the properties of the event for game code, player ID and bet amount
    - Make a contribution call to ThrillPots using these (and other values)

From here, it is relatively easy to see how you could expand the use case to create a Deposit jackpot. Lets imagine that the deposit flow was identified by source DEPOSIT. Lets also assume that when a successful deposit has been made by a player, that an event is published by the operator's platform. For argument's sake, lets call this event DEPOSIT_SUCCESS.

If we wanted to create a deposit jackpot, the logic could look as follows:

Subscribe to DEPOSIT_SUCCESS event
When an event is received:
    - Read the properties of the event for the player ID and deposit amount
    - Make a contribution call to ThrillPots using the DEPOSIT source_id and other properties

Sequence Diagram for the Event Processor integration

Authenticating via ThrillPots Gateway

The ThrillPots Gateway service exposes a REST endpoint which your event stream process can authenticate itself with Thrill-ID. The endpoint is POST /authenticate/service and accepts a payload which contains the connecting service's username and password.

If authentication is successful, you will receive a response which contains token which must be used as a Bearer token in subsequent API requests to the ThrillPots Gateway service. Service tokens do not expire and therefore you do not need to be concerned with refreshing your token once it has been received.

See here for a Service account that you can provision for your Event Processor integration service.

Additional Information

If your event processor service is processing gameplay bet events, you should remember to filter out any and all events related to Jackpot Contributions as this could create loop of contributions on behalf of players

NOTE: For new integrations, we highly recommend that you integrate using the v2 Contribution API

Contributing to Jackpots

Now that you are processing events from your platform, you want to be able to make Contributions on behalf of players to the jackpot. The process of contributing is quite straight forward and does not require your service to be aware of player opt-in status. You will however need to decide which jackpot to contribute to and this can be done in one of two ways:

• Contribute by source
• Contribute direct to jackpot

Sources

A Source can be thought of as an operator-defined identifier for a user journey, a group of games, or even a single game. You can read more about Sources here,

Example: Sitewide Jackpot

If you wanted to create a site-wide jackpot for your casino vertical, you could create a Source named casino-sitewide, map a jackpot to the source and then send all contributions to that specific Source.

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "casino-sitewide",
    "gameround_id": "1",
    "currency": "EUR",
    "base_wager": 1
}

Example: Deposit Jackpot

If you wanted to create a deposit jackpot, you can create a source called deposit, map the relevant jackpot to the source and then send all deposit-based contributions ot that source

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "deposit",
    "gameround_id": "DEPOSIT_TX_ID",
    "currency": "EUR",
    "base_wager": 1
}

Example: Game Group Jackpot

If you wanted to create a jackpot for a specific set of games, for example, a jackpot for all egyptian themed games, you can create a source called egyptian-games and use that for contributions each time a player bets into a game that is egyption themed. This would naturally require your integration service to know which games are matched to which Game Group source.

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "egyptian-games",
    "gameround_id": "1",
    "currency": "EUR",
    "base_wager": 1
}

Example: Game Specific Jackpots

If you want to split your liquidity by game title, you can create sources that correspond to the game codes of games in your system. Each source would need a jackpot mapped to it, but once that is done, you are able to make contributions to the source based on the game code of the base game bet.

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "provider-game-code",
    "gameround_id": "1",
    "currency": "EUR",
    "base_wager": 1
}

Direct to Jackpot Contribution

An alternative to using sources is to make contributions directly to Jackpot Instances by their ID. For example, if you have created a Jackpot instance, you will have its ID available to you. This ID will not change over the lifetime of the jackpot. Making contributions directly to a Jackpot ID incurs less processing cost, but may also reduce the flexibility you may have in changing which jackpot players contribute to based on the content or user flows.

The only difference in the contribution payload is that the source_id is replaced with an instance_id field as seen below:

{
    "instance_id": "0a1cfeea-5b07-4f2b-b2f1-2e4cd2aa991d",
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "MT",
    "gameround_id": "1000",
    "base_wager": 2,
    "currency": "EUR"
}

Idempotent Contributions

If you require the ThrillPots system to prevent duplicate contributions being processed, then you can include the optional idempotency_key on your Contribution Request. The value of the idempotency_key must be a unique value generated by your system (for example a random UUID).

    {
      "token": "token_00001",
      "brand_id": "thrilltech:brand1",
      "player_id": "player_00001",
      "player_country": "UK",
      "source_id": "casino-sitewide",
      "gameround_id": "1",
      "currency": "EUR",
      "base_wager": 1,
      "idempotency_key": "unique_value_generated_by_your_system"
    }

Synchronous vs Asynchronous contribution

The default contribution mechanism is synchronous. However, depending on your system architecture (and system load), you may prefer to make use of asynchronous contribution mechanics. In order to make asynchronous contributions, you need to provide a webhook that the ThrillPots system can call once the result of a contribution has been determined.

In order to make a contribution asynchronously, you simple need to add a callback property to either of the contribution payloads above to specify the webhook to call and which results you are interested in receiving.

The structure of the callback property is as follows:

{
    "web_hook": "https://your.host/webhook",
    "win_result_only": false
}

The web_hook field indicates the fully qualified HTTP path to your webhook and the win_result_only property indicates whether the webhook should only receive win results or all contribution results.

Therefore, an asynchronous contribution for a sitewide casino jackpot would look like this:

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "casino-sitewide",
    "gameround_id": "1",
    "currency": "EUR",
    "base_wager": 1,
    "callback": {
        "web_hook": "https://your.host/webhook",
        "win_result_only": false
    }
}

When making an asynchronous contribution, the ThrillPots system will either return 200 OK with a JSON payload that contains a trace_id for the request when it has successfully accepted the contribution request for processing, or you will receive an error due to the request being malformed.

Any contribution request errors will be send to the webhook. The structure of the webhook payload is defined as follows:

Successful contribution result

{
    "type": "data",
    "contribution_amount": Number,
    "contribution_currency": String,
    "gameround_id": String,
    "instance_id": String,
    "metadata": null | Object,
    "tickets_awarded": null | Number,
    "timestamp": Number,
    "win_amount": Number,
    "win_pot_id": null | String,
    "win_withheld": Boolean
}

Error result

{
    "type": "error",
    "status_code": Number,
    "code": String,
    "message": String,
}

The data portion will either be a ContributionResult structure or an Error structure. You can find more information on these structures in the API documentation.

Examples of payloads sent to the web hook

Contribution Result

{
    "type": "data",
    "contribution_amount": 0.1,
    "contribution_currency": "EUR",
    "gameround_id": "cc83c1cc-6260-44fc-822b-d3c03acf2d89",
    "instance_id": "a49ff35f-6ecd-491f-b373-85e6caabacf1",
    "metadata": null,
    "tickets_awarded": null,
    "timestamp": 1715714218408,
    "win_amount": 0,
    "win_pot_id": null,
    "win_withheld": false
}

Error Result

{
    "type": "error",
    "status_code": 404,
    "code": "GAME_NOT_FOUND",
    "message": "sitewide-casino2",
}

Contribution Request Errors

A contribution request may result in a direct or a downstream error. A direct error is an error that is the result of the ThrillPots system return an error to the contribution request itself. A downstream error is an error that is propogated to the contribution request caller from a downstream system, such as ThrillGate or the operator wallet itself.

List of Direct Errors

For Direct Errors, you can expect:

Passing Metadata

If you need to pass contextual metadata from your event processor to your wallet, you can do so by adding a metadata field to the Contribution Request. This data will be passed through the system and attached to transaction requests to your wallet.

The metadata field can be any valid JSON value, for example:

Metadata containing an Object:

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "casino-sitewide",
    "gameround_id": "1",
    "currency": "EUR",
    "base_wager": 1,
    "metadata": {
        "value1": "some value",
        "value2": 1234
    }
}

Metadata containing a String:

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "casino-sitewide",
    "gameround_id": "1",
    "currency": "EUR",
    "base_wager": 1,
    "metadata": "This is an arbitrary string value"
}

Event metadata

If you need to attach contextual metadata from your event processor to any subsequent JackpotWinEvent , you can do so by adding a event_metadata field to the Contribution Request. This data will be passed through the system and attached any resulting JackpotWinEvent under metadata.

The event_metadata field can be any valid JSON value, for example:

{
  	"instance_id": "ac2aad1d-16b6-4e9b-9e9a-d94f705a38f7",
  	"token": "token_00001",
  	"brand_id": "thrilltech:brand1",
  	"player_id": "player_00001",
  	"player_country": "MT",
  	"gameround_id": "1",
  	"base_wager": 1,
  	"currency": "EUR",
  	"event_metadata": {
			"some": "data"
  	}
}

Will result in a JackpotWinEvent with metadata.

  {
    "event_type": "JackpotWinEvent",
    "event_id": "8b4025fa-b4e7-4bd3-9e8c-3e95a1a2611d",
    "data": {
        "brand_id": "thrilltech:brand1",
        "player_id": "player_00001",
        "source_id": null,
        "instance_id": "ac2aad1d-16b6-4e9b-9e9a-d94f705a38f7",
        "jackpot_name": "QuickHit Instance",
        "jackpot_currency": "EUR",
        "timestamp": 1732010393528,
        "win_pot_id": "major",
        "win_amount": 100.05624999999992,
        "currency_multipliers": {
            "brand_id": "default",
            "base_currency": "EUR",
            "multipliers": {
                "AMD": 430.0904,
        },
        "win_withheld": false,
        "seed_deficit": 99.68125,
        "community_winners": null,
        "games_in_jackpot": [],
        "seed": 100.0,
        "metadata": {
            "some": "data"
        }
    }
  }

Contributing to Jackpots v2

The v2 Contribution API introduces a structured way to submit both source contributions and direct jackpot contributions within a single endpoint. It also enables advanced features such as linked jackpots and bet contexts.

• More information on linked jackpot instances can be found here

Key Enhancements Over V1

• Unified Contribution Model: Supports both source contributions and direct to instance contributions in the same request.
• Linked Jackpot Support: Contributions automatically propagate to all directly linked instances.
• Structured Data Format: Requests follow a more structured schema, ensuring consistency and extendability.
• Expanded Response Structure:
  • Synchronous contributions return an array of results for all contributions made.
  • Asynchronous contributions trigger multiple webhook events, one per contribution.

Propagation Rules

A contribution applies to the target instance (or instance behind source) as well as all instances directly linked to it . Only the links defined for the target instance are honored.

Failure Handling

• If the contribution to the main instance fails, contributions to linked instances will not be attempted.
• If a linked instance contribution fails (e.g., due to missing opt-in or validation failure), other linked instances will still be processed normally.

Opt-in Requirement

Opt-ins do not propagate automatically. If a linked instance requires explicit opt-in and the user has not opted in, the contribution fails for that instance.

API Request structure

{
    // Contribution target
    "target": {
        // Contribution target type, can be either "source" or "instance"
        "type": "source",
        // Contribution target identifier
        // eg. "sitewide-casino" in case of source contribution
        // eg "bdfa6295-d5a5-4c54-98bf-046355ce0252" in case of direct contribution to jackpot
        "id": "sitewide-casino"
    },
    // Jackpot instance owner identifier (operator id)
    "owner_id": "thrilltech",
    // Details of the contributing player
    "player": {
        // Player identifier
        "id": "player_00001",
        // Player authentication token
        "token": "token_00001",
        // Player country
        "country": "UK",
        // Player brand identifier
        "brand_id": "brand1",
        // Any segments that the player might be part of
        "segments": ["vip-1", "regular"],
    },
    // Base game wager
    "base_wager": {
        // Base wager currency
        "currency": "EUR",
        // Base wager value
        "value": 1
    },
    // The contribution source that caused the contribution to happen.
    // For example, if a player made a bet on a game, this would be the game's gameround ID.
    // If a player made a successful deposit, this would be the deposit's identifier.
    // This field is stored by ThrillPots and is used a back-reference to the original user action
    // that caused the contribution to happen.
    "source": {
        // Type of the contribution source. Defaults to `gameround` but can be any value you choose
        "type": "gameround",
        // Identifier of the contribution source
        "id": "gameround_id_1"
    },
    // Opaque data object that contains pass-through data for the caller.
    // The content of this property will be sent back on the JackpotContributionResponse to this request.
    "metadata": {},
    // Opaque data object that contains pass-through data for the caller.
    // The content of this property will be attached to any resulting events. ( win events at that stage )
    "event_metadata": {},
    // Optional contribution request parameters. Each field in this field is optional as well.
    "options": {
        // Optional identifier of the vertical from which the contribution request originated
        "vertical_id": "slots",
        // Optional boolean specifying whether linked jackpots should be honored
        "allow_linked_contributions": true,
        // If you would like ThrillPots to not process duplicate contributions, then specify a unique
        // `idempotency_key` here
        "idempotency_key": "random_uuid_value",
        // Specify the webhook to call and which results you are interested in receiving
        "callback": {
            "web_hook": "https://your.host/webhook",
            "win_result_only": false
        }
    },
}

Synchronous Contribution

If you do not specify a callback in the options.callback field, your contribution request will be processed synchronously. In this case, the response will be an array of JackpotContributionResponse structures. Normally, the array will only contain 1 result, however when the initial jackpot is linked to other jackpots, the array will contain more than one element, one for each jackpot that was linked.

• Returns results for the target jackpot instance and all of its linked instances.
• Result structure remains the same with the only difference it being an array.

[
    {
        "instance_id": "bdfa6295-d5a5-4c54-98bf-046355ce0252",
        "timestamp": 1739972162307,
        "gameround_id": "bb2a5277-1f00-47cf-b62c-9f639ddff146",
        "win_amount": 0.0,
        "win_pot_id": null,
        "tickets_awarded": null,
        "win_withheld": false,
        "contribution_currency": "EUR",
        "contribution_amount": 0.0775,
        "metadata": null
    },
    {
        "instance_id": "3c90cb1e-a594-437e-a695-e76acb0e6809",
        "timestamp": 1739972162394,
        "gameround_id": "7eab0af4-1477-44d9-88f0-a9b7763a6d30",
        "win_amount": 0.0,
        "win_pot_id": null,
        "tickets_awarded": null,
        "win_withheld": false,
        "contribution_currency": "EUR",
        "contribution_amount": 0.1,
        "metadata": null
    }
]

• If contribution to a linked instance fails (e.g., due to missing opt-in or regulatory restrictions), the response details which instances succeeded and which failed.

[
    {
        "instance_id": "bdfa6295-d5a5-4c54-98bf-046355ce0252",
        "timestamp": 1739972093142,
        "gameround_id": "0860e92b-6d75-45ab-a520-39ab511e18c1",
        "win_amount": 0.0,
        "win_pot_id": null,
        "tickets_awarded": null,
        "win_withheld": false,
        "contribution_currency": "EUR",
        "contribution_amount": 0.0775,
        "metadata": null
    },
    {
        "status_code": 400,
        "code": "CONTRIBUTION_REJECTED",
        "message": "PlayerNotOptedIn"
    }
]

Asynchronous Contributions & Webhooks

For asynchronous contributions, the API does not return immediate results. Instead, a webhook event is triggered for each contribution, providing its final outcome.

• win_result_only Option
  • If win_result_only is enabled, the webhook will only be triggered for contributions that result in a win.
  • If disabled (default behavior), a webhook is sent for every contribution, regardless of the outcome.
  • The webhook payload structure remains unchanged from v1 contributions.

{
    "type": "data",
    "instance_id": "bdfa6295-d5a5-4c54-98bf-046355ce0252",
    "timestamp": 1739972634263,
    "gameround_id": "0174c60b-f827-4e9c-8f66-8d5444732071",
    "win_amount": 0.0,
    "win_pot_id": null,
    "tickets_awarded": null,
    "win_withheld": false,
    "contribution_currency": "EUR",
    "contribution_amount": 0.0775,
    "metadata": null
}

OAS and Swagger documentation

For more details on using this functionality, refer to ThrillPots Service and ThrillPots Gateway API documentation

Contribution Sources

Contribution Sources are a concept in ThrillPots that allow operators create well-known identifiers for one or more Jackpot Instances. A contribution source is bound to an operator and brand ID.

Contribution Sources are valid targets/identifiers for jackpot contribution bets (as described in the Contributing to Jackpots section).

Why use sources instead of Jackpot Instance IDs

Sources provide a mechanism of indirection to Jackpot Instances. Since a Source will usually have a well-known and human-defined identifier, and can represent one or more Jackpot Instances at any point in time, they provide a very convenient way for Integrating services and frontends to work with Jackpot Instances.

For example, instead of hard coding a specific Jackpot Instance ID into your frontend or backend services, you can simply configure the more human-readable source_id and use the Source to determine at runtime which Jackpot Instance ID is being used. This is especially useful when Jackpot models are changed over time since your integrated product will not need to be modified unless there is a fundamental structural change to the jackpot itself (which is rarely the case).

Example

An early, but very common use-case Contribution Source can be seen below, where a Source has been created for Operator thrilltech, Brand brand1 and is the source for the "site wide casino jackpot".

In this case, the contribution flow would look like this:

┌──────────────────────────────┐
│Contribution to Source Request│   (POST https://thrillpots_gateway_host/jackpots/contribute/source)
└──────────────┬───────────────┘
               │
               │
               │
               ▼
           ┌────────┐
           │ Source │
           └────────┘
               │
               │
               │
               ▼
      ┌──────────────────┐
      │ Jackpot Instance │
      └──────────────────┘

Under the covers (in the data), this Contribution Source will most probably look something like this:

{
  "owner_id": "thrilltech:brand1",
  "source_name": "Casino Sitewide Source",
  "source_id": "sitewide-casino",
  "jackpots": [
    {
      "priority": {
        "$numberLong": "0"
      },
      "owner_id": "thrilltech:brand1",
      "instance_id": "12231b6a-a774-4a93-8f16-f8af9aee2076"
    }
  ]
}

The jackpots array in this Contribution contains a single Jackpot Instance ID because in this case, there is only one Jackpot Instance required. We will discuss use cases where having multiple Jackpot Instances in this array can be useful.

Creating a Contribution Source

To create a Contribution Source, we follow a 2 step process:

1. Create the new source
2. Assign the desired Jackpot Instance to the Source

1. Create the new source

To create a source, we use the POST /config/sources endpoint on ThrillPots Service (link to API).

An example to create a "Site-wide Jackpot" source for the thrilltech:brand1 operator-casino would look like this:

POST http://<thrillpots-service-host>/config/sources

Payload

[
    {
        "owner_id": "thrilltech:brand1",
        "source_name": "Casino Sitewide Source",
        "source_id": "sitewide-casino"
    }
]

FYI: If you have downloaded the ThrillPots AIO Setup Postman collection, an example of this step will be in the Basic Setup > Create a Source endpoint.

2. Assign the desired Jackpot Instance to the Source

Once you have created a source, you can now assign a pre-existing Jackpot Instance to the source. This can be done using the POST /config/sources/assignjackpot endpoint on the ThrillPots Service (link to API).

POST http://<thrillpots-service-host>/config/sources/assignjackpot

Payload

{
    "owner_id": "thrilltech:brand1",
    "source_id": ["sitewide-casino"],
    "instance_id": "{{instance_id}}"
}

Retrieving the Jackpot Instance from a source

To retrieve that relevant Jackpot Instance for a specific source, you can use the following methods:

ThrillPots Gateway

GET /jackpots/instances/source/:source_id/brand/:brand_id?player_id=:player_id

The parameters in the url above are:

ThrillConnect (used by the Frontend)

GET /v1/thrillpots/instances/source/:source_id/brand/:brand_id?player_id=:player_id

The parameters in the url above are the same as for ThrillPots Gateway:

Retrieving all sources in the System

To retrieve a list of sources for a specific operator brand, you can use one of the following methods:

ThrillPots Gateway

GET /sources?owner_id=:brand_id

The brand_id parameter in the URL is once again comprised of the operator_id:brand_id pair which identifies a specific brand. If any sources have been configured for the operator_id:brand_id specified, they will be returned in a response which contains a list of Source JSON objects and will look similar to this example:

[
    {
        "owner_id": "thrilltech:brand1",
        "source_name": "Casino Sitewide Source",
        "source_id": "sitewide-casino",
        "jackpots": [
            {
                "priority": 0,
                "owner_id": "thrilltech:brand1",
                "instance_id": "12231b6a-a774-4a93-8f16-f8af9aee2076"
            }
        ]
    }
]

ThrillConnect (used by the Frontend)

GET /v1/thrillpots/sources?owner_id=:brand_id

As in the ThrillPots Gateway example above, the brand_id parameter in the URL is once again comprised of the operator_id:brand_id pair which identifies a specific brand. The response payload will look exactly the same as the response from the ThrillPots Gateway service above.

ThrillPots Events

ThrillPots publishes a number of events which your integration service can subscribe to. There are a number of reasons you may want to consume these events, for example:

• Synthesizing related Kafka/RabbitMQ events
• Storing the events for BI / Analysis purposes

The following events are currently published by ThrillPots Gateway:

• JackpotUpdateEvent - contains the latest jackpot values for the specified Jackpot Instance
• Reference

{
    "event_type": "JackpotUpdateEvent",
    "event_id": "d6f05820-1da2-4152-bcba-6c0186f6cd77"
    "data": {
        "id": "jackpot instance ID",
        "status": String,
        "jackpot_type": "Jackpot" | "Raffle",
        "currency": String,
        "allowed_brands": [String],
        "allowed_sources": [String],
        "pots": [
            {
                "id": String,
                "is_progressive": Boolean,
                "current_value": Number
            }
        ],
        "timestamp_start": Number | null,
        "timestamp_end": Number | null
        "last_updated": Number
    }
}

• JackpotWinEvent - contains the details of a jackpot win
• Reference

{
    "event_type": "JackpotWinEvent",
    "event_id": "3fe809f4-c94f-4950-9b86-5f2d0b8f604f"
    "data": {
        "brand_id": String,
        "player_id": String,
        "source_id": String | null,
        "instance_id": String,
        "jackpot_name": String,
        "timestamp": Number,
        "win_pot_id": String,
        "win_amount": Number,
        "currency_multipliers": {
            "brand_id": String,
            "base_currency": String,
            "multipliers": {
                "EUR": Number,
                "GBP": Number,
                "ZAR": Number,
                ...
                "NZD": Number,
                "SEK": Number
            }
        }
        "games_in_jackpot": [String],
        "seed": Number,
        "win_withheld": Boolean,
        "seed_deficit": Number,
        "community_winners": null | [{
            "player_id": String,
            "brand_id": String,
            "currency": String,
            "win_amount": Number
        }],
		"metadata": null | Object,
    }
}

• RaffleWinEvent - contains the details of a Raffle Win
• Reference

{
    "brand_id": String,
    "instance_id": String,
    "jackpot_name": String,
    "jackpot_currency": String,
    "currency_multipliers": {
        "brand_id": String,
        "base_currency": String,
        "multipliers": {
            "EUR": Number,
            "GBP": Number,
            "ZAR": Number,
            ...
            "NZD": Number,
            "SEK": Number
        }
    }
    "timestamp": Number,
    "winners": [
        {
            "player_id": String,
            "brand_id": String,
            "currency": String,
            "win_amount": Number
        }
    ],
    "win_withheld": bool
}

• OptInEvent - contains the details of a player opt-in or opt-out into a Jackpot Instance Reference

{
    "event_type": "OptInEvent",
    "event_id": "27045bf8-78d2-4f99-97f1-e7d2e3aa434d"
    "data": {
        "instance_id": String,
        "player_id": String,
        "player_brand_id": String,
        "preferred_contribution_value": Number,
        "preferred_contribution_currency": String.
        "opted_in": Boolean,
        "requested_optin": Boolean,
        "contribution_preferences: {
            "EUR": Number | null,
            "USD": Number | null
            ..
        },
        "last_updated": Integer
    }
}

• CommunityPayoutErrorEvent - sent in case of an error that is encountered when processing community payouts Reference

{
    "event_type": "CommunityPayoutErrorEvent",
    "event_id": "c034a751-cf91-4722-bc89-a2f8af472805"
    "data": {
        "instance_id": String,
        "gameround_id": String,
        "tx_credit_id": String,
        "failed_payouts": [
            {
                "player_id": String,
                "brand_id": String,
                "currency": String,
                "win_amount": Number
            }
        ]
    }
}

• RafflePayoutErrorEvent - sent in case of an error that is encountered when processing raffle payouts Reference

{
    "event_type": "RafflePayoutErrorEvent",
    "event_id": "e981296b-199f-4454-b4ec-b3f36910c2cc"
    "data": {
        "instance_id": String,
        "failed_payouts": [
            {
                "player_id": String,
                "brand_id": String,
                "currency": String,
                "win_amount": Number
            }
        ]
    }
}

The ThrillPots events are published via the WebSocket endpoint /events.

Authenticating the Websocket connection to receive events

Once you have established a WebSocket connection from your event processor service to ThrillPots Gateway, you will need to send an Authenticate message which contains your Thrill-ID JWT token to authenticate your service to receive events.

{
    "action": {
        "Authenticate": {
            "auth_token": "{{thrill-id-jwt}}"
        }
    }
}

If the authentication fails, the connection will be closed. Once you have authenticated, you should start receiving the events from the ThrillPots service.

Wallet Integration

Introduction

When integrating ThrillPots to your wallet, you will need to implement what is known as the "Standard Wallet API". This API has been defined by ThrillTech and is what our ThrillGate services uses to communicate with your backend to process:

• Player Authentication
• Transactions
• Transaction cancellations
• Batch transactions# Wallet Integration

ThrillPots Wallet Configuration

IMPORTANT

Please note that when you change the wallet configuration for the ThrillPots service, you MUST restart the ThrillPots service for the changes to take effect. In this section, we will discuss how ThrillPots performs player authentication and jackpot contribution transactions.

When running in a non-development environment (such as staging or production), ThrillPots uses the ThrillGate Service as an integration layer to an operator's wallet API.

NOTE:

ThrillPots also supports an internal, in-memory wallet for development or isolated testing purposes. This wallet is enabled by default in the AIO development container

Types of Wallet Integrations

There are two types of wallet integrations that can be developed:

• Provider-to-Operator integration
• Operator-to-Provider integration (Standard Wallet Integration)

This section is been written for operators that have chosen to do an Operator-to-Provider integration. For a Provider-to-Operator integration, ThrillTech are responsible for implementing the integration to your wallet API and that topic is out of scope for this book.

• Batch transaction cancellations

All communications from ThrillGate are conducted over secure SSL REST calls to your system.

As part of all calls to your system, ThrillGate sends an HMAC in the X-Server-Authorization header which is calculated from the body of the request only. You can use this HMAC value to verify that the request is coming from the expected ThrillGate server.

NOTE: During integration you will receive the secret key that you can use to verify the HMAC value with.

Enabling Wallet Integration Mode in the AIO Container

In order to configure the container to support external wallet integration mode, some additional API calls need to be made.

In the provided Postman collection, you will find a folder called Wallet Integration Mode. In this folder you will find additional API calls that you need to make in order to configure the container to run in this mode.

The first API call (1. Create Wallet Configuration) makes a call to the ThrillGate service and sets up the "Standard Wallet API" connnector.

It is very important that you do NOT change the details in Step 2a or 2b as these are specific for the AIO container.

PLEASE NOTE:

When building your wallet integration, the ThrillGate service will attempt to connect to your wallet service on your localhost:8201. This is configured via Docker networking as:

Host: "host.docker.internal"
Port: 8201

You can change the port, but we would recommend not changing the host unless you are absolutely sure you know what you are doing.

Once you have executed step 1, you can Enable or Disable the external wallet mode using steps 2a or 2b respectively.

Once you have completed the configuration, you will need to restart the ThrillPots service in the AIO container.

IMPORTANT

Each time you change the wallet configuration of ThrillPots, you must restart the ThrillPots Service for the configuration changes to take effect

Standard Wallet Integration

What is the Standard Wallet?

The Standard Wallet is a REST API definition (designed by ThrillTech) which an operator needs to implement support for. The ThrillGate service uses the Standard Wallet API (as a client) to communicate with the operator's wallet to perform the following actions:

• Player token authentication
• Debit / Credit transactions (single)
• Credit transaction batches
• Transaction cancellation

Standard Wallet Sequence flows

Below is a sequence diagram of the expected data flow between ThrillGate and the operator wallet API:

Configuring a Standard Wallet Integration in ThrillGate

To configure the ThrillGate Service to connect to your Standard Wallet API compliant service, you need to configure a Wallet resource.

To configure a wallet:

• URL: POST http://localhost:8100/admin/wallets
• Headers:
  • Authorization: Thrill ID Bearer token
• Body:

{
    "id": "Brand1Wallet",
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "wallet_type": "StandardWallet",
    "connection_details": {
        "protocol": "http",
        "host": "host.docker.internal",
        "port": 8201
    },
    "endpoints": {
        "auth": {
            "POST": "/wallet/authenticate"
        },
        "balance": {
            "GET": "/wallet/balance"
        },
        "cancel_bet": {
            "DELETE": "/wallet/cancel"
        },
        "transaction": {
            "POST": "/wallet/transaction"
        },
        "transaction_batch": {
            "POST": "/wallet/transaction/batch"
        },
        "cancel_batch": {
            "DELETE": "/wallet/transaction/batch"
        }
    },
    "config": {
        "secret_key": "12345",
        "accept_zero_value_credits": true,
        "must_close_gamerounds": false
    }
}

NOTE: If you need to change the definition of the endpoints, feel free to do so. Make sure that you use the correct HTTP verb and specify the endpoints as needed by your system.

Next Steps

Once you have understood the purpose of each of the Standard Wallet API calls as well as the flows around transaction and transaction batch handling, you are ready to start integrating the Standard Wallet API into your system. Refer to the provided API reference documentation and OpenAPI specs that have been provided to you.

Standard Wallet API: Player Authentication

In order for the ThrillPots system to take wagers (debit the player's wallet) and payout winnings (credit the player's wallet), it needs to be able to authenticate the player with the operator wallet.

This is done by calling the Standard Wallet's auth endpoint, passing in the provided player token and game code to the operator wallet and receiving the required player details (including the token that should be used for transaction calls)

This is done by ThrillGate calling the endpoint defined in endpoints.auth of the Standard Wallet's configuration. An example call's payload would look as follows:

{
    "operator_id": "your_operator_id",
    "brand_id": "your_brand_id",
    "player_token": "token_00001",
    "source_id": "AwesomeJackpotGameCode",
    "currency": "EUR"
}

If successful, the operator wallet must respond with a valid session token and player details that can be used for future transaction calls for this player.

Response example:

{
    "id": "player_00001",
    "token": "session_token_00001",
    "currency": "EUR",
    "balance": 100001927.79,
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "nickname": null,
    "gender": "?",
    "country": "MT",
    "jurisdiction": null,
    "segments": null
}

Standard Wallet API: Transactions

Transactions

Once the player token has been authenticated, the ThrillPots system can start making transaction calls through ThrillGate.

In standard operation, the first transaction call will be a Debit transaction request to fetch funds from a player's wallet for the Jackpot Contribution bet. This call is also intended to open the game round for the jackpot contribution.

If successful, ThrillPots will process the jackpot contribution and determine if a win occurred.

The next transaction call that will be made will be a Credit transaction request. This call is intended to pay any winnings to the player account and to close the game round that was opened with the Debit transaction.

Transaction Errors

If an error occurs while executing transactions with the operator wallet, ThrillGate and ThrillPots cooperate to ensure that the transaction error is handled correctly.

When an error occurs, ThrillGate will attempt to retry the transaction request a set number of times. If all retries fail, the error will be sent to ThrillPots for further handling.

If there are certain wallet errors that you do not wish ThrillGate to perform its retry logic, you can configure that as part of the wallet configuration in ThrillGate.

Once an error has been sent back to ThrillPots, ThrillPots will decide whether a transaction needs to be cancelled or not. Transaction cancellation is discussed next.

Transaction Failure Handling

In certain situations (as described in the errors section above), it is necessary for transactions to be cancelled or put into a Pending state.

NOTE: ThrillPots will only cancel Debit transaction

Debit transactions

In the case of a failed Debit transaction, ThrillPots will send a cancellation request for the Debit transaction using the Debit transaction ID.

Credit transactions

A credit transaction will never be cancelled. If it fails after a certain number of retries, ThrillGate will make the transaction as pending and will continue to retry sending the transaction to the operator's wallet. This will continue for a fairly long period of time (configurable). If the transaction fails after all the configured attempts, it will be marked as Withheld and will require manual reconciliation by the operator via the Backoffice.

Transaction Batches (Credit only)

ThrillPots uses Transaction Batch requests to communicate payouts to multiple players.

These types of payouts are only relevant to jackpots that are either:

• Multi-player payouts (community payouts)
• Raffle jackpot payouts

In both situations, since multiple players are considered winners from a single jackpot win, ThrillPots needs a way to credit wins to multiple players. Since these players are not guaranteed to be online at the time of the win, ThrillPots will not have access to any session token information for all the winners.

Transaction Batches are used in these special situations to communicate a set of credit operations that need to be applied to multiple players accounts.

Although unlikely, it is possible that not all the specified player accounts will be able to be credited with the winnings. Such a situation may arise if, for example, the player account has been banned/blocked or is self-excluded at the time of the jackpot win.

In these cases, the operator wallet is expected to flag the player account as an exception and continue to pay the remaining players in the transaction batch.

It is not considered an error if a player account in a transaction batch cannot be paid. The operator wallet should simply indicate this exception in the response and attempt to pay all other players.

Transaction Batch Failures

Since Transaction Batches are only applicable to Credit transactions, the same retry -> pending failure flow as described above is applied.

There is another limited set of errors that require Transaction Batches to be retried as Pending transactions.

These errors are typically (but not limited to) errors such as network errors and timeouts. When an error occurs that leads ThrillGate to not be sure whether the operator's wallet has handled the transaction batch request, the request will first be retried, but after failing a specific number of times, the transaction batch will be marked as pending and continue to be retried in the background.

Frontend Integration

The final piece of the ThrillPots integration puzzle is the frontend integration. The frontend is responsible for displaying the Jackpot Ticker widget, showing players what the value of the various pots within the Jackpot are, the opt-in widget, allowing players to opt-in or opt-out of participation in the jackpot and so on.

The ThrillConnect Service has been specifically developed to provide an API and event stream over WebSockets to frontend clients to be able to interact with the ThrillPots system.

Integration Options

When integrating the frontend, there are two options that you can take:

1. Use the existing libraries/components that ThrillTech has built to ease the effort of frontend integration:
   • ThrillConnect JS Client
   • Animation Driver
2. Develop your own integration with ThrillConnect and your own animation layer for the win animations

The sections below will detail the low level integration approach to help you understand how things work. You can then decide which of the options mentioned above you wish to take.

Sequence Diagram for the frontend to ThrillConnect integration

Integration Flow in detail

Fetching a Jackpot's details

One of the first things your frontend will most likely need to do is to retrieve jackpot details for your jackpot widget to display.

If you have followed the section on settings up the AIO container, you would have created a Source called sitewide-casino.

If you haven't gone through the process of setting up a source, we suggest that you review and understand sources and how they are used before continuing

To retrieve the jackpot for the sitewide-casino source, you will need to call:

GET /v1/thrillpots/instances/source/:source_id/brand/:brand_id?player_id=:player_id

replacing the :source_id and :brand_id values with the appropriate values that have been configured. If you used the default values from the Postman collection, you can use sitewide-casino for the source_id and thrilltech:brand1 for the brand_id.

If the player is already logged in, you can also pass the ID of the player via the query parameter player_id. Doing so will ensure that the player's opt-in status is returned in the jackpot instance information.

Establishing a WebSocket connection

In order to receive ThrillPots events and be able to opt players in or out of the jackpot, you will need to establish a websocket connection.

Once a player is logged into an operator's site, you can establish a WebSocket connection with ThrillConnect, passing in the player's session token.

NOTE

WebSocket connections are protected and can only be established by logged in players to prevent unauthorized and potentially dangerous abuse by attackers. Requiring a player a valid player session token in order to establish a WebSocket connection is a security-driven decision

To establish a WebSocket connection with ThrillConnect, open a WebSocket to:

/v1/events/{operator_id}/{brand_id}?token=PLAYER_TOKEN&currency=PLAYER_CURRENCY

ThrillConnect will authenticate the token (the Player session token) from the query parameters with the operator's platform via ThrillGate. If the token is valid, the websocket connection will be established. If the token is invalid, the connection will receive a 403 FORBIDDEN error.

Subscribing to ThrillPots events

Once you have successfully established a WebSocket connection, you can now subscribe to ThrillPots events. This is done by sending a subscription request via the WebSocket to ThrillConnect. See below for the SubscribeRequest message that should be sent to subscribe to all ThrillPots events:

{
	"SubscribeRequest": {
		"events": [{
			"source": "thrillpots",
			"event_type": "*"
		}]
	}
}

If you would like to subscribe to only certain events, you can do so by explicitly specifying the events by source one-by-one.

ThrillPots currently publishes the folliowing event types:

• JackpotUpdateEvent
• WinEvent
• RaffleWinEvent
• OptInEvent

For more information about the structure of each of these events, see ThrillPots Event Structures

Player Opt-in / Opt-out

To opt a player in or out of a jackpot, you must send a PlayerOptInRequest message via the WebSocket connection.

Below are a few examples of opting a player in and out of a jackpot instance (please note, you will need to have the jackpot instance ID):

Opting in

{
	"PlayerOptInRequest": {
		"instance_id": "8dcc9f5a-f1c5-466f-83e9-928277d8bfb7",
		"player_country": "MT",
		"opt_in": true
	}
}

Opting in with a preferred contribution value of 0.20

{
	"PlayerOptInRequest": {
		"instance_id": "8dcc9f5a-f1c5-466f-83e9-928277d8bfb7",
		"player_country": "MT",
		"opt_in": true,
		"contribution_value": 0.2
	}
}

Opting out of a Jackpot

{
	"PlayerOptInRequest": {
		"instance_id": "8dcc9f5a-f1c5-466f-83e9-928277d8bfb7",
		"player_country": "MT",
		"opt_in": false
	}
}

Opting in with a preferred contribution value and preferred contribution currency

{
	"PlayerOptInRequest": {
		"instance_id": "8dcc9f5a-f1c5-466f-83e9-928277d8bfb7",
		"player_country": "MT",
		"opt_in": true,
		"contribution_value": 0.2
		"contribution_currency": "USD"
	}
}

Opting out from a preferred contribution currency

{
	"PlayerOptInRequest": {
		"instance_id": "8dcc9f5a-f1c5-466f-83e9-928277d8bfb7",
		"player_country": "MT",
		"opt_in": false,
		"contribution_currency": "USD"
	}
}

Retrieving Exchange Rates

You may need to convert the values of a jackpot instance from the Jackpot currency to a player's currency. To help facilitate this, ThrillConnect exposes a currency endpoint which allows you to fetch the exchange rates used by ThrillPots.

To retrieve the 202408-1 exchange rates, you can call:

GET /v1/currencies

Retrieving a player's raffle ticket count

If player's are contributing to a Raffle jackpot, you may want to show the player how many tickets they have earned so far in the raffle. You can retrieve the player's current ticket count by requesting it via the WebSocket connection:

To retrieve a player's ticket count, send a PlayerRaffleTicketsRequest message:

{
	"player_id": String,
	"instance_id": String,
	"brand_id": String
}

The instance_id is the instance ID of the Raffle jackpot, and the brand_id is in the format operator_id:brand_id.

If the request can be serviced, you should received a PlayerRaffleTicketsResponse message back:

{
	"msg_type": "Message",
	"source": "thrillpots",
	"msg_name": "PlayerRaffleTicketResponse",
	"operator_id": "OPERATOR_ID",
	"brand_id": "BRAND_ID",
	"player_id": "PLAYER_ID",
	"data": {
		"ticket_count": 4
	},
	"timestamp": 1711452762485
}

If there was an error processing the request, you will receive an Error message in response which will contain the message name that errored, as well as any relevant error details. For example:

{
	"msg_type": "Error",
	"source": "thrillpots",
	"msg_name": "PlayerRaffleTicketRequest",
	"operator_id": "OPERATOR_ID",
	"brand_id": "BRAND_ID",
	"player_id": "PLAYER_ID",
	"data": {
		"status_code": 404,
		"code": "",
		"message": "Error 404 Not Found from http://localhost:8084/instances/raffle/e0dee1ae-6231-458a-ad6d-4dc0c941e5c3/tickets/player_00001/brand/thrilltech:brand1"
	},
	"timestamp": 1711452757807
}

In this case, the request Jackpot instance ID could not be found.

ThrillConnect JS Client

ThrillConnect Client is the glue that connects your Portal and ThrillTech systems to provide seamless experience for your players. It is designed with minimialistic, yet powerful API, that can be easily consumed and covers all the narrow and tricky edgecases of the frontend integration. It's purpose is to make your frontend development trivial and expose the full API surface with minimum effort.

On this page you can find all the relevant details on how to use the Client, as well as examples and use cases.

Client version will be aligned with service version and just like that you'll be subscribed to all the latest and greatest features of our platform.

Source

Source code is avaiable for review & fork for all ThrilTech customers. You can find the client at https://github.com/thrilltech-io/connect-client.

Initialization

Client constructor needs the host address and BrandContext. Player context can optionally be passed on initialization or later on via authenticate method. Additionally one can specify dev options, like the use of unsecure http/ws and client internal logs for dev convenience.
All the events of interest must be passed on to the constructor in the events array so that client can subscribe to relevant systems on the WS channel.

Player context

Player context type provides all necessary player details for establishing the WSS connection and interacting with the Jackpots from player perspective.

type PlayerContext = {
    id: string,
    token: string,
    currency: string,
    country: string,
}

Initialization without player context

Prior to having a valid player session and auth token, one can initialize the client without PlayerContext. In this limited mode the WS events will not be available and only public REST endpoints can be used to make requests. ( see API section for what is available )

import { ThrillConnect, ConnectEvents } from "./thrillconnect.js"

const client = new ThrillConnect({
    host: "localhost:11000",
    brand: {
        operator_id: "thrilltech",
        brand_id: "brand1",
    },
    dev: {
        secure: false
    },
    events: [
        ConnectEvents.JackpotUpdateEvent,
        ConnectEvents.RaffleWinEvent,
        ConnectEvents.JackpotWinEvent,
        ConnectEvents.OptInEvent,
    ]
})

Later on, once we have player details, we can authenticate and subscribe to full functionality of the client.

client.authenticate({
    id: "player_id_token_00001",
    token: "token_00001",
    country: "USA",
    currency: "USD",
})

Initialization with player context

Alternatively, if player details are known from the start, those can be passed directly to the client constructor.

const client = new ThrillConnect({
    host: "localhost:11000",
    player: {
        id: "player_00001",
        token: "token_00001",
        country: "USA",
        currency: "USD",
    },
    brand: {
        operator_id: "thrilltech",
        brand_id: "brand1",
    },
    dev: {
        secure: false
    },
    events: [
        ConnectEvents.JackpotUpdateEvent,
        ConnectEvents.RaffleWinEvent,
        ConnectEvents.JackpotWinEvent,
        ConnectEvents.OptInEvent,
    ]
})

API

Following is a list of all the available methods on connect client.

Adding an event listener

	client.on(ConnectEvent, handler)

Adding an once off event listener

	client.once(ConnectEvent, handler)

Removing an event listener

	client.off(ConnectEvent, handler)

Passing player context

	client.authenticate(PlayerContext)

Fetching the currency multipliers

	const multipliers = await client.request().getCurrencies()

Fetching the list of defined sources for the provided BrandContext

	const sources = await client.request().getSources()

Getting the Jackpot instance that maps to a source

	const sourceId = "sitewide-jackpot"
	const instance = await client.request().getJackpotForSource(sourceId)

Getting the player OptIn status for a source

Note: PlayerContext is required for this request.

	const sourceId = "sitewide-jackpot"
	const status = await client.request().getOptInStatusForSource(sourceId)

Opting in/out from a source

Note: PlayerContext is required for this request. This request uses the authenticated WS channel. When jackpot allows for variable contribution, preferred contribution value can be passed as 3 parameter.

	const sourceId = "sitewide-jackpot"
	const optIn = true
	const preferredContributionValue = undefined

	client.request().optIntoSource(sourceId, optIn, preferredContributionValue)

Opting in/out from an instance

Note: PlayerContext is required for this request. This request uses the authenticated WS channel. When jackpot allows for variable contribution, preferred contribution value can be passed as 3 parameter.

	const instanceId = "dd7243ea-9992-47ae-a2a6-531b3f0e2197"
	const optIn = true
	const preferredContributionValue = undefined

	client.request().optIntoInstance(instanceId, optIn, preferredContributionValue)

Events

Client receives events via the WS connection. In order to receive an event, it needs to explicitly be listed in the list of events in the Client constructor. All the available events are listed in ConnectEvents.

import { ConnectEvents } from "./thrillconnect.js"

function updateTickers(e:JackpotUpdateEvent) {
    console.log(e.status)
}
// subscribe to Jackpot updates
client.on(ConnectEvents.JackpotUpdateEvent, updateTickers)
// unsubscribe from Jackpot updates
client.off(ConnectEvents.JackpotUpdateEvent, updateTickers)

withSource helper

Jackpot source serves as alias for the instance, however properly handling the events, as well as parts of the API requires frontend to keep a reference to the instance identifier. To address this inconvinience, connect-client now supports internal caching of instance ID. Source bound client internally filters events and only fires those matching the jackpot instance id corresponding to the source.

const sourceBoundClient = await client.withSource("put-source-id-here")

await sourceBoundClient?.getJackpot()
await sourceBoundClient?.getTickers()
await sourceBoundClient?.getOptInStatus()
await sourceBoundClient?.optIn(true, 50)

sourceBoundClient?.on(ConnectEvents.JackpotUpdateEvent, handleUpdate)

Animation Driver

ThrillTech supplies a default set of Jackpot win animations to enrich the player experience during a Jackpot win. The animations driver is a JS library that takes care of win animations loading and playback. Animations are easily customizable and the driver allows for flexible cusomizations of the playback.

Source

Source code is avaiable for review & fork for all ThrilTech customers. You can find the driver at https://github.com/thrilltech-io/animations-driver.

Overview

The JS driver exposes two functions:

• preload(config, tier, muted) - loads the required assets per pased configuration object. When muted, sounds will not be loaded.
• run(config, tier, amount, muted) - starts the animation sequence defined in the configuration. Run will do load if assets are not already loaded.

The preload function is intended to provide separation of the loading phase, so that in case of unreasonably slow connection, stale loading can be detected and acted upon (for example using a fallback alert / win message if assets load didnt complete in a certain period).

Mute state cannot be controlled after the animation is run. The current sound preference should be passed to the run ( and optionally preload ) and based on that the defined in configuration sfx are either loaded or not.

Usage

import { preload, run } from "./main.js"

const config = "/configs/example.json"
const tier = "super"
const amount = 10000
const muted = false

preload(config, tier, muted).then(()=>{
    run(config, tier, amount, muted)
})

Configuration

See example configurations in ./public/configs in the driver repository.

Following is a full possible configuration with all settings commented inline.

{
    "dom": {
        // optional - skip "top" section if no header is required
        "top": {
            // id of top container
            "id": "top-container",
            // messages to display during presentation phase
            "message": {
                "id":"top-message",
                // message during wheel spin
                "wheel": "Stop the wheel and win BIG! BIG!",
                // message during tickup
                "tickup": "Congratulations!"
            }
        },
        // optional - skip "bottom" section if no footer is required
        "bottom": {
            // id of bottom container
            "id": "bottom-container",
            // action button
            "button": {
                // id of the action button
                "id": "action-button",
                // actions during wheel phase
                "wheel": {
                    "stop": "STOP THE WHEEL",
                    "skip": "SKIP THE WHEEL"
                },
                // actions during tickup phase
                "tickup": {
                    "skip": "SKIP TICKUP"
                },
                // actions after tickup
                "end": {
                    "close": "CLOSE"
                }
            }
        },
        // enable touch controls during phase
        "touch": {
            // touch during wheel acts as stop / skip
            "wheel": {
                "stop": true,
                "skip": true
            },
            // touch during tickup acts as skip
            "tickup": true
        }
    },
    // ticker skin and font settings -
    // skin provided and customised by thrilltech
    "ticker": {
        "skin": "/ticker/Win_BG.skel",
        "font": "/fonts/rubik.woff",
        "fontFamily": "rubik",
        // maximum font size for the tickup
        "maxFontSize": 80,

        // https://developer.mozilla.org/en-US/docs/Web/JavaScript/Reference/Global_Objects/Intl/NumberFormat
        // the currency for the win amount as per ISO 4217 currency codes
        // optional, leave empty for no currency or monetary amount format
        "currency":"JPY",
        // A string with a BCP 47 language tag, optional
        "currencyFormat":"en-US"
    },
    // wheel skin and segments settings -
    // skin provided and customised by thrilltech
    "wheel": {
        "rotate": 0,
        "base": "/wheel/Wheel_of_Fortune.skel",
        // wheel has 8 segments, following is the order of tiers per segments
        "segments": [
            "mini",
            "super",
            "mini",
            "epic",
            "mini",
            "super",
            "epic",
            "super"
        ],
        // map of segment textures
        "skins": {
            "mini": "/skins/demo/mini.png",
            "super": "/skins/demo/super.png",
            "epic": "/skins/demo/epic.png"
        }
    },
    // jackpot animation skin -
    // skin provided and customised by thrilltech
    "pots": {
        "mini": {
            // path of the spine export containing the mini tier animation
            "source": "/pots/mini/Thrillpot.skel",
            // prefix of the animation for this tier
            "prefix": "",
            // sound clips for all animation phases
            "sfx": {
                "intro": ["/sfx/base/mini/intro.mp3"],
                "particles": ["/sfx/base/mini/confetti.mp3"],
                "tickup_start": ["/sfx/base/mini/tickup-start.mp3"],
                "tickup_loop": ["/sfx/base/mini/tickup-loop.mp3"],
                "outro": ["/sfx/base/mini/outro.mp3]"
            }
        },
        "super": {
            // path of the spine export containing the mini tier animation
            "source": "/pots/super/Thrillpot.skel",
            // prefix of the animation for this tier
            "prefix": "",
            // sound clips for all animation phases
            "sfx": {
                "intro": ["/sfx/base/super/intro.mp3"],
                "particles": ["/sfx/base/super/confetti.mp3"],
                "tickup_start": ["/sfx/base/super/tickup-start.mp3"],
                "tickup_loop": ["/sfx/base/super/tickup-loop.mp3"],
                "outro": ["/sfx/base/super/outro.mp3]"
            }
        },
        "epic": {
            // path of the spine export containing the mini tier animation
            "source": "/pots/epic/Thrillpot.skel",
            // prefix of the animation for this tier
            "prefix": "",
            // sound clips for all animation phases
            "sfx": {
                "intro": ["/sfx/base/epic/intro.mp3"],
                "particles": ["/sfx/base/epic/confetti.mp3"],
                "tickup_start": ["/sfx/base/epic/tickup-start.mp3"],
                "tickup_loop": ["/sfx/base/epic/tickup-loop.mp3"],
                "outro": ["/sfx/base/epic/outro.mp3]"
            }
        },
    },
    // particles animation skin -
    // skin provided and customised by thrilltech
    "particles": {
        "mini": {
            "source": "/particles/confetti/Thrillpot.skel",
            "prefix": ""
        },
        "super": {
            "source": "/particles/confetti/Thrillpot.skel",
            "prefix": ""
        },
        "epic": {
            "source": "/particles/confetti/Thrillpot.skel",
            "prefix": ""
        }
    }
}

SFX

Config contains sound definitions for various phases of the animation. All sounds are optional. Sounds per animation phase are defined as an array. All elements of the phase array refer to the same sound effect. The intention is to provide multiple sfx formats and the runtime will automatically pick the one supported on the client system. Recommended formats to use are webm, wav and mp3. wav has the widest support accross devices, but is not as optimal as webm and mp3 in terms of filesize.

"sfx": {
    "intro": ["/sfx/base/epic/intro.webm", "/sfx/base/epic/intro.wav"],
    "particles": ["/sfx/base/epic/confetti.webm", "/sfx/base/epic/confetti.wav"],
    "tickup_start": ["/sfx/base/epic/tickup-start.webm", "/sfx/base/epic/tickup-start.wav"],
    "tickup_loop": ["/sfx/base/epic/tickup-loop.webm", "/sfx/base/epic/tickup-loop.wav"],
    "outro": ["/sfx/base/epic/outro.webm", "/sfx/base/epic/outro.wav"]
}

Metrics

The ThrillPots system exposes Prometheus metrics per service via the /metrics endpoint.

Below is the list of metrics exposed per service:

ThrillPots Gateway

ThrillPots Service

Thrillpots Gateway

OpenAPI Spec: Download Open

Swagger API: Download Open

ThrillPots Service

OpenAPI Spec: Download Open

Swagger API: Download Open

ThrillGate Bonus API

OpenAPI Spec: Download Open

Swagger API: Download Open

ThrillGate (Standard Wallet API)

OpenAPI Spec: Download Open

Swagger API: Download Open

ThrillConnect

OpenAPI Spec: Download Open

Swagger API: Download Open

Thrill-ID

OpenAPI Spec: Download Open

Swagger API: Download Open

BitBridge

OpenAPI Spec: Download Open

Swagger API: Download Open

ThrillOffice

OpenAPI Spec: Download Open

Swagger API: Download Open

Multi-Currency Support

The ThrillPots Platform provides advanced multi-currency support. It uses bespoke a bespoke system of algorithms known as the Always Fair Multi-Currency system to provide operators with fine grained control over the multi-currency configuration aspects of their jackpots.

The Basics

At a basic level, every Jackpot has a base currency. This is the currency that the jackpot operates in at the lowest level.

In order to process contributions for players that may be using wallet currencies that are different from the jackpot's base currency, the platform uses exchange rates that are updated frequently by the system.

In this basic scenario, all contributions are based on the jackpot's base currency.

Example

A Jackpot is configured to have a base currency of EUR and accept a minimum contribution of €0.10. An opted-in player is using GBP as their wallet currency.

We know that EUR:GBP is not 1:1. For the purposes of this example, we will assume an exchange rate of 1:0.85.

Therefore, the GBP account player will be contributing a minimum of €0.10 to the jackpot, but in their transaction history, they will correctly see £0.085 being deducted from their account.

In this simple example, although the GBP player does not see an aesthetically pleasing bet amount for each contribution, they are wagering the correct amount into the jackpot. There are a few downsides with this approach, one of which is that the contribution amount in GBP may fluctuate over time depending on the prevailing exchange rate.

Always Fair Multi-currency Support

The Always Fair Multi-currency system allowed operators to define both minimum and maximum contributions on a per supported currency basis without compromising on the fairness and integrity of their jackpot maths.

With the system, the operator can specify more appealing and intuitive minimum (and maximum) contribution values as follows:

While this table of Jackpot Contribution sizes may look much better than if we simply used exchange rates to calculate the contribution value, a question of fairness does need to be raised.

What is the problem?

Lets imagine a EUR player is wagering €0.10 into a jackpot while a JPY player is wagering 10 JPY. Based on the above configuration, this will be accepted by the system. But what about fairness. If we simply "accepted" bets of different sizes into the jackpot, the JPY player would have an unfair advantage over the EUR player since the real world value of 10 JPY is not equal to €0.10 (based on the exchange rate at the time of writing, 10 JPY = ~€0.06). This would mean that there would be greater value to be contributing in JPY than in EUR.

This is where the Always Fair technology comes into play.

What does Always Fair actually do?

The Always Fair Multi-Currency system ensures that the maths of the jackpot is scaled proportionally to the currency being used for contributions. Therefore, in the example above, the Always Fair algorithms ensures that the JPY player has their probabilities of hitting the jackpot scaled based on the value of their contribution in relation to the base currency of the jackpot. (Yes, we know thats a lot!)

While the detailed workings of the algorithm are beyond the scope of this document, here are the important take aways about what the Always Fair Multi-currency system enables:

• Allowed minimum and maximum contribution values to bet set per currency
• Ensuring that regardless of currency, contributions are always processed fairly - no player will receive an unfair advantage

Multi-Currency Opt-ins

The system supports two distinct modes of operation when it comes to player opt-ins.

1. Simple Opt-in/Opt-out

In this mode (which is default), if a player opts-in with Currency A, they are opted in. If they are able to change their currency to Currency B, they will still be opted in. If the Jackpot has a minimum contribution size defined for the player's currency (Currency B), then the contribution will be based on that configured minimum. If the jackpot does not have a minimum contribution defined for Currency B, the players contribution will be the value of minimum contribution of the jackpot's base currency.

If the jackpot does support Currency B as an alternate currency and the player opts out while using Currency B, they will also be opted out for Currency A.

2. Per-Currency Opt-In/Opt-out

In this mode, players are required to opt-in on a per currency basis. For example, if Player A opts in while using Currency A, but later on changes to using Currency B, they will not be considered opted in while using Currency B. In this mode, the player will need to explicitly opt-in for Currency B as well.

This logic extends to opting out as well. If a player has opted in for Currency A and separately for Currency B and then layer opts out for Currency B, they are still considered opted in (but only for Currency A). This is an important factor when it comes to community payout jackpots where only opted-in players are considered when picking the community winners.

Jackpot Freebets

The Jackpot Freebets feature provides operators with a way to promote their jackpot product by way of awarding players with free jackpot contributions.

Jackpot Freebets can be configured in two ways:

• Either entirely in the ThrillTech system using ThrillGate FreeBets
• In the operator's reward system, with a single additional integration point to award the freebets to a player

Example Use Cases

Jackpot Freebets can be used to:

• introduce newplayers to your player-funded jackpot to "try it out". For example, players who were never opted in could accept an introductory offer which grants them 10 Jackpot Freebets (valued at €0.10 each) if they opt-in.

• incentivise players that used to be opted in but no longer are to re-optin.

• as rewards to valued players

Jackpot Freebets > Types of Freebets

There are two types of freebets available:

• Fixed Freebets
• Variable Freebets

Fixed Freebets

Fixed Freebets are configured to have a set number of "bets" at a specific value for each bet. For example:

10 contributions @ €0.10 per contribution
15 contributions @ €0.20 per contribution

When using Fixed Freebets, the ThrillPots system will lock the player's contribution (regardless of their selected opt-in amount) to the value of the freebets for the duration of the awarded freebets. Once the freebets is consumed, any further contributions will be made using the player's opted-in contribution value

Variable Freebets

Variable Freebets are configured as a single monetary value which the player can choose to use as they want. For example:

€0.50 worth of freebets
€2.00 worth of freebets
€5.00 worth of freebets

When using Variable Freebets, the system will use the smaller value of the player's opt-in amount and the remaining value in the freebet.

For example, if a player is opted in for €0.20 and has been awarded for €1.50 worth of Variable Freebets, the player will be able to make 7 contribution at €0.20 and then a final contribution of €0.10 to consume the remaining freebet.

This dynamic adjustment of the contribution value for the freebet is done automatically by the system.

Jackpot Freebets > Freebet Mechanics

In this section, you will find an explanation of how Freebets work.

• Configuring Freebets
  • Configuring using ThrillOffice
    • 1. Create a Freebet Template
    • 2. Instantiate the Template
    • 3. Assign the Freebet Instance to Players
• Player CSV File Format

Configuring Freebets

Freebets can be configured using the built-in functionality in the ThrillOffice platform or, if you already have a 3rd party or internal reward system, by using the Create Player Bonus API.

Configuring using ThrillOffice

Freebets are configured using the ThrillGate section of the ThrillOffice. When you hover over the ThrillGate icon on the left of the screen, you will see 3 options: Bonus Templates, Bonus Instances and Player Bonuses

1. Create a Freebet Template

• Click on Bonus Templates

• Click the Create Template button near the top right of the screen

• Populate the form with the required details.

• Click Save

Your new template should now be visible in the list of Bonus Templates

2. Instantiate the Template

• Hover over the ThrillGate icon again and select Bonus Instances

• Click the New Instance button near the top right of the screen
• Populate the form, selecting the Bonus Template you created in the previous step

• Click Save

3. Assign the Freebet Instance to Players

Now that we have a Bonus Template and a Bonus Instance Created, you can now assign Freebets to players. You can reuse the Bonus Instnace created in Step 2 above multiple times.

• Hover over the ThrillGate icon one more time and click on the Player Bonuses menu item

• Click the Assign Bonus button near the top right of the screen
• Select the bonus instance you wish to use

• Click the Next button

• Click the Choose file button and select the CSV which contains the players you wish to assign bonuses to

NOTE: The format of the CSV file is detailed below here

• If the file is successfully imported, you will see an overview of the total cost

• Review the costs and once you are ready to proceed, click the Assign Bonuses button at the bottom right of the form.
  • This will assign bonuses to the players in the CSV file you uploaded and the bonuses will be instantly available to these players

** You're done! You've successfully created a Bonus Template which can be used to create one or more Bonus Instances, which in turn can be used multiple times to assign bonuses to specific players **

Player CSV File Format

In order to specify which players should receive freebet bonuses, you need to upload a CSV file which contains the following information:

• The player's ID
• The player's Operator ID
• The player's Brand ID

The CSV file can contain other fields as well, but they will be ignored.

A correctly structured CSV contains a header row with the following headers (in any order):

• player_id
• operator_id
• brand_id

An example CSV file is available for download here

Jackpot Freebets > Configuring Freebets

This section will discuss 2 ways of configuring Freebets using the API.

Freebets via ThrillGate

You will use this if you wish to manage all freebet configurations via the ThrillTech system. The only downside to this approach is that the system does not support the flow of offering a freebet offer to a player and only awarding it if a player accepts.

IMPORTANT When creating Bonus Templates and Instances, if you support multiple player wallet currencies, you will need to create a Template (and instance) for each supported currency. If a player that uses EUR is awarded a NOK bonus, they will be unable to use the bonus unless they can change their account currency to NOK.

Freebets for external reward systems

Use this approach if you wish to make use of your existing rewards or bonusing system to creating freebets for players.

Jackpot Freebets > Configuring Freebets > ThrillGate

ThrillGate provides all the necessary functionality to configure Freebet templates, instances and finally, award freebets to players. This is useful for operators that do not have their own rewards management system or would prefer not to use their current bonusing system for Jackpot Freebets.

This section will discuss the process of configuring Jackpot Freebets at a more technical level. It is worth noting that the ThrillOffice system provides all this configuration in the user interface.

Process of configuring Jackpot Freebets

1. Create a FreeBets Iemplate

The first step of creating a template allows you to create re-usable rulesets for freebets in the system. Below is an example of creating both a Fixed Freebet template as well as a Variable Freebet template.

Fixed Freebets Template

• Endpoint: POST thrillgate/bonus/templates
• Payload: JSON

{
    "name": "10 Freebets @ €0.10",
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "freespin_type": {
        "type": "FixedFreeSpins",
        "count": 10,
        "currency": "EUR",
        "value": 0.1
    },
    "expires_after_ms": 0
}

Variable Freebets Template

{
    "name": "€1.00 Freebets bonus",
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "freespin_type": {
        "type": "VariableFreeSpins",
        "currency": "EUR",
        "amount": 1.0
    },
    "expires_after_ms": 86400000 // awarded bonuses will expire after a day
}

The response from these calls will look something like this:

{
    "id": "2ee990d6-84fd-43d4-909e-859312291135",
    "name": "10 Freebets @ €0.10",
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "freespin_type": {
        "type": "FixedFreeSpins",
        "count": 10,
        "currency": "EUR",
        "value": 0.1
    },
    "expires_after_ms": 0,
    "created_by": null,
    "timestamp_created": 1753795763112
}

Once the template is created, you can create one or more Freebet instances. Take note of the id value as we will use it in the next step.

2. Create a Freebets Instance

Now that we have a valid template available, we can create one or more instances, adding constraints (if needed) on which jackpots or games the freebet can be used for. You can also specify the validity of this instance by setting the timestamp_start and timestamp_end fields. If a Jackpot instance expires, it can no longer be used to award freebets to players.

• Endpoint: POST thrillgate/bonus/templates
• Payload: JSON

{
    "template_id": "2ee990d6-84fd-43d4-909e-859312291135",
    "instance_name": "Fixed Freebets: 10 bets @ €0.10 per bet for instance",
    "available_for": [
        {
            // limit the bonus to a specific provider
            "provider_id": "thrilltech",
            "game_ids": []

            // limit the bonus to specific game codes/source ids
            // "provider_id": "thrilltech",
            // "game_ids": [
            //     "903b26eb-3393-4784-a524-baacbba3a8ed"
            // ]
        }
    ],
    "timestamp_start": 0,
    "timestamp_end": 0
}

If successful, the response will look something like this:

{
    "id": "9a1a696c-4011-473f-b950-49f7a39f3b0c",
    "name": "Fixed Freebets: 10 bets @ €0.10 per bet for instance",
    "operator_id": "thrilltech",
    "brand_id": null,
    "freespin_type": {
        "type": "FixedFreeSpins",
        "count": 10,
        "currency": "EUR",
        "value": 0.1
    },
    "template_id": "2ee990d6-84fd-43d4-909e-859312291135",
    "available_for": [
        {
            "provider_id": "thrilltech",
            "game_ids": []
        }
    ],
    "expires_after_ms": 0,
    "timestamp_start": 0,
    "timestamp_end": 0
}

Once again, remember to take note of the id value as we will use it in the 3rd and final step to award freebets to players.

3 Awarding Freebets to Players

In this step, we can now award Freebets to one or more players based on a specific Freebets Instance. It is worth noting that the request_id field is the value that will be used for idempotency purposes. Ensure that each unique request uses a different value for the request_id.

• Endpoint: POST thrillgate/bonus/playerbonus/assign-instance
• Payload: JSON

{
    "request_id": "1",
    "instance_id": "9a1a696c-4011-473f-b950-49f7a39f3b0c",
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "players": [
        "player_id_token_00001",
        "player_id_token_00002",
        "player_id_token_00003",
        "player_id_token_00004",
        "player_id_token_00005",
        "player_id_token_00006",
        "player_id_token_00007",
        "player_id_token_00008"
    ],
    "promo_id": "jp_freebets_promo1"
}

Here we are awarding freebets to 8 players in the system. The players array contains the IDs of the players as they are in the operator's platform.

If successful, the response will look similar to this:

[
    {
        "id": "331f781e-e0a3-4d15-92e5-078d9d38c894",
        "player_id": "player_id_token_00001",
        "operator_id": "thrilltech",
        "brand_id": "brand1",
        "promo_id": "jp_freebets_promo1",
        "bonus_instance_id": "9a1a696c-4011-473f-b950-49f7a39f3b0c",
        "available_for": [
            {
                "provider_id": "thrilltech",
                "game_ids": []
            }
        ],
        "bonus_data": {
            "Freespins": {
                "id": "9a1a696c-4011-473f-b950-49f7a39f3b0c",
                "name": "Fixed Freebets: 10 bets @ €0.10 per bet for instance",
                "freespin_type": {
                    "type": "PlayerFixedFreeSpins",
                    "count": 10,
                    "used": 0,
                    "currency": "EUR",
                    "value": 0.1
                }
            }
        },
        "state": "Available",
        "timestamp_bonus_awarded": 1753796209614,
        "timestamp_bonus_expires": 0,
        "timestamp_bonus_consumed": null
    }
	// ..additional entries for each of the players
	// ..
]

At this point, you have successfully awarded jackpot freebets to 8 players and they will take effect on the next contributions that the players make.

Jackpot Freebets > Configuring Freebets > External Reward System

If you would like to use your own Reward System to manage the offering and awarding of Jackpot Freebets, you are able to do so if you implement an integration with a new endpoint to award freebets directly to players.

Using this mechanism, you are able to create freebets with dynamic values, based on your internal system calculations (for example) without needing to use the Freebet Templates and Freebet Instances that were discussed in the Thrillgate section.

To create a Freebet for one or more players directly (without using Freebet instances), you can use the following mechanism.

Please note that the request_id field is used for idempotency purposes and should always be unique for each distinct call to the endpoint.

• Endpoint: POST thrillgate/bonus/playerbonus/create
• Payload:

{
    "request_id": "2",
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "players": [
        "player_id_token_00001",
        "player_id_token_00002",
        "player_id_token_00003",
        "player_id_token_00004",
        "player_id_token_00005",
        "player_id_token_00006",
        "player_id_token_00007",
        "player_id_token_00008",
        "player_id_token_00009",
        "player_id_token_00010"
    ],
    "bonus_name": "Dynamic Freebets 1",
    "bonus": {
        "type": "FixedFreeSpins",
        "count": 15,
        "currency": "EUR",
        "value": 0.25
    },
    // "available_for": [
    //     {
    //         "provider_id": "thrilltech",
    //         "game_ids": []
    //     }
    // ],
    // "timestamp_bonus_expires": 0,
    "promo_id": "jp_freebets_dynamic1"
}

In the above example, we are awarding the Dynamic Freebets 1 to 10 players. Each player will receive 15 freebets, with each freebet valued at €0.25. If you wanted to put an expiry time for the bonus, you could do so by using the timestamp_bonus_expires field and set the timestamp (unix epoch in milliseconds) for the absolute time for when the bonus will expire.

If the request was successful, you will receive a response similar to the following:

[
    {
        "id": "61668185-d21f-4db1-9217-5181514b97a4",
        "player_id": "player_id_token_00001",
        "operator_id": "thrilltech",
        "brand_id": "brand1",
        "promo_id": "jp_freebets_dynamic1",
        "bonus_instance_id": "DYNAMICALLY_CREATED_1753802620622",
        "available_for": [],
        "bonus_data": {
            "Freespins": {
                "id": "DYNAMICALLY_CREATED_1753802620622",
                "name": "Dynamic Freebets 1",
                "freespin_type": {
                    "type": "PlayerFixedFreeSpins",
                    "count": 15,
                    "used": 0,
                    "currency": "EUR",
                    "value": 0.25
                }
            }
        },
        "state": "Available",
        "timestamp_bonus_awarded": 1753802620622,
        "timestamp_bonus_expires": 0,
        "timestamp_bonus_consumed": null
    },
	// ... additional eleemnts for every other player will follow here
]

Jackpot Freebets > Freebet Events

The following events have been added to the system to support the Freebets feature:

Each of these events carries the exact same payload, which has the following structure:

{
    "msg_type": "Event",
    "source": "thrillgate",
    "msg_name": "PlayerBonusAdded" | "PlayerBonusRemoved" | "PlayerBonusUpdated" | "PlayerBonusConsumed" | "PlayerBonusExpired",
    "operator_id": String,
    "brand_id": String,
    "player_id": String,
    "data": {
        "id": String,
        "promo_id": String | null,
        "bonus_instance_id": String,
		"available_for": [
			{
				"provider_id": String,
				"game_ids": [String]
			}
		],
        "bonus_data": {
            "Freespins": {
                "id": String,
                "name": String,
                "freespin_type": FreeSpinType, // see below for structure details
            }
        },
		"state": "Available" | "Consumed" | "Expired",
		"timestamp_bonus_awarded": Integer,
		"timestamp_bonus_expires": Integer,
		"timestamp_bonus_consumed": Integer | null
    },
    "timestamp": Integer
}

The FreeSpinType structure is an enumerated structure and can contain one of the following structures:

Fixed Freebets

{
	"type": "PlayerFixedFreeSpins",
	"count": Integer,
	"used": Integer,
	"currency": String,
	"value": Number
}

Variable Freebets

{
	"type": "PlayerVariableFreeSpins",
	"amount": Decimal,
	"amount_used": Decimal,
	"currency": String,
}

Your frontend widgets can use the payload of these events along with the event context to decide what to display to the user.

Environment Variables

Each service has a list of environment variables which define its configuration for runtime. Use this reference to understand what each environment variable does, what it is used for and the possible values it can contain.

Quick Links

• ThrillPots Gateway
• ThrillPots Service
• ThrillGate Service
• ThrillConnect Service
• Thrill-ID Service
• BitBridge Service
• ThrillOffice Service

ThrillPots Gateway

Back to Top

ThrillPots Service

Back to Top

ThrillGate Service

Back to Top

ThrillConnect Service

Back to Top

Thrill-ID Service

Back to Top

BitBridge Service

Back to Top

ThrillOffice Service

Back to Top

ThrillPots Event Structures

This section provides the data definitions (in JSON) for each of the ThrillPots events.

Event: JackpotUpdateEvent

{
    "id": String,
    "jackpot_type": "Jackpot" | "Raffle",
    "currency": String,
    "pots": [PotTicker],
    "allowed_brands": [String],
    "allowed_sources": [String],
    "status": String,
    "timestamp_start": Number | null,
    "timestamp_end": Number | null,
    "last_updated": Number
}

References:

• PotTicker

Event: WinEvent

{
    "brand_id": String,
    "player_id": String,
    "source_id": String,
    "instance_id": String,
    "jackpot_name": String,
    "jackpot_currency": String,
    "timestamp": Number,
    "win_pot_id": String,
        "currency_multipliers": {
            "brand_id": String,
            "base_currency": String,
            "multipliers": {
                "EUR": Number,
                "GBP": Number,
                "ZAR": Number,
                ...
                "NZD": Number,
                "SEK": Number
            }
        }
    "win_withheld": bool,
    "community_winners": [PayoutRecord],
    "games_in_jackpot": [String],
    "seed": Number,
	"metadata": null | Object,
}

References:

• CurrencyValue
• PayoutRecord

Event: RaffleWinEvent

{
    "brand_id": String,
    "instance_id": String,
    "jackpot_name": String,
    "jackpot_currency": String,
    "currency_multipliers": {
        "brand_id": String,
        "base_currency": String,
        "multipliers": {
            "EUR": Number,
            "GBP": Number,
            "ZAR": Number,
            ...
            "NZD": Number,
            "SEK": Number
        }
    }
    "timestamp": Number,
    "winners": [
        {
            "player_id": String,
            "brand_id": String,
            "currency": String,
            "win_amount": Number
        }
    ],
    "win_withheld": bool
}

References:

• CurrencyValue

The winners field contains an array of tuples. The structure of each tuples is (String, CurrencyValue). The first element in the tuple contains the ID of a winning player and the second element contains the amount that the player won.

Event: OptInEvent

{
    "instance_id": String,
    "player_id": String,
    "ext_player_id": String,
    "player_brand_id": String,
    "preferred_contribution_value": Number,
    "contribution_count": Number,
    "contribution_value": Number,
    "opted_in": Boolean,
    "last_updated": Number,
}

Event: CommunityPayoutErrorEvent

{
    "instance_id": String,
    "gameround_id": String,
    "tx_credit_id": String,
    "failed_payouts": [
        {
            "player_id": String,
            "brand_id": String,
            "currency": String,
            "win_amount": Number
        }
    ]
}

Event: RafflePayoutErrorEvent

{
    "instance_id": String,
    "failed_payouts": [
        {
            "player_id": String,
            "brand_id": String,
            "currency": String,
            "win_amount": Number
        }
    ]
}

Structure References

PotTicker

{
    "id": String,
    "is_progressive": Boolean,
    "current_value": Number,
    "community_split": Number | null
}

CurrencyValue

{
    "currency": String,
    "value": Number
}

PayoutRecord

{
    "player_id": String,
    "brand_id": String,
    "currency": String,
    "win_amount": Number,
    "reason": String,
}

Linked Jackpots

This feature allows jackpot instances to be linked together so that a contribution to one instance automatically results in a contribution to all linked instances. It is particularly useful in scenarios where multiple jackpots exist within a single game, for example Daily, Weekly, and Monthly raffles.

Previously, contributions had to be submitted individually for each jackpot instance. With this feature, links can be predefined, allowing a single request to result in a contribution to all associated instances.

API Version Compatability

Linked instances are supported only by the v2 contribution APIs, as this feature introduces a breaking change in the synchronous contribution response structure.

Automatic Contribution Propagation

A contribution to an instance is automatically applied to all directly linked jackpots. Only the links defined for the target instance (the instance being contributed to) are honored.

Failure Handling

• If the contribution to the main instance fails, contributions to linked instances will not be attempted.
• If a linked instance contribution fails (e.g., due to missing opt-in or validation failure), other linked instances will still be processed normally.

Opt-in Requirement

Opt-ins are not automatically propagated to linked instances. If a linked instance requires explicit opt-in, and the opt-in has not occurred, the contribution to that instance will fail with an error.

Example Scenarios

• Scenario 1: Weekly and Monthly raffles are linked to Daily raffle.
  • A contribution to Daily raffle propagates to Daily, Weekly, and Monthly.
• Scenario 2: Weekly is linked to Daily, and Monthly is linked to Weekly.
  • A contribution to Daily applies to Daily and Weekly, but not Monthly, since Monthly is not directly linked to Daily.
• Scenario 3: Weekly requires explicit opt-in, and the user has not opted in.
  • A contribution to Daily would result in an error for Weekly, but other linked instances (e.g., Monthly) would still process normally.

Managing Instance Links

Instance links are defined in linked_instances collection in thrillpots service database and can be managed via the following CRUD APIs:

• Retrieve links for an instance
  • Returns all linked jackpots defined for a given instance
• Set links for an instance
  • Updates an instance's links based on the provided input.
• Delete links for an instance
  • Removes all existing links for a given instance.

OAS and Swagger documentation

For more details on using this functionality, refer to the API documentation

NOTE: This is early documentation for the scheduling system and the documentation will be further extended over time with additional examples and more details

Advanced Scheduling

The ThrillPots system provides a relatively sophisticated sub-system which allows you to create schedules for your jackpot products.

It is important to understand what a schedule is in the context of ThrillPots.

At its core, a schedule is always bound to a Jackpot Instance. A schedule can be as simple as defining the date and time that a jackpot starts at, or defining an end date and time for jackpot.

Here are some interesting use cases that can be solved with schedules as well:

• Happy Hour Jackpot: Creating a jackpot that only accepts contributions during 17:00 and 18:00
• Promotional Jackpots: Creating a jackpot that only accepts contributions at peak times of site activity or to encourage players during low activity times
• Weekend Jackpots: Creating a jackpot that is only available on weekends

Schedules become even more powerful when used together with Raffle Jackpots. Raffle Jackpots are jackpots that resolve at the end of a predefined period of time. While players participate in the Raffle Jackpot by way of contribution (as with any other jackpot), raffle jackpots issue tickets to players based on either their Contribution or the base wager that they make into games.

Recurrence Rulesets

All the rules for the scheduling system revolve around "recurrence rules". Currently, recurrence rules are implemented for "Daily" and "Weekly" rulesets.

Daily rules

Daily rules define a set of hours within which the jackpot is available in. Traditionally, jackpot contributions are allowed during all hours of the day, but lets imagine that you wanted to create a jackpot that was only available during your site's "Happy Hour" which was between the hours of 7pm to 9pm UTC.

For such a rule to exist, you would only need to define a Daily recurrence rule which stipulated that the hours of 19:00 to 21:00 UTC were valid.

Weekly rules

Taking the example from above, lets imagine that we wanted to further constrain the available days of the raffle to be from Monday to Friday (no weekend contributions allowed!). In this case, we would create a "Weekly" ruleset which define the following days as being valid: Monday through to Friday.

As a last minute change, business might want to allow contributions to happen on a Saturday, but only between 08:00 UTC to 20:00 UTC. To allow this specificity of ruleset, we can apply an additional override for Saturday for those specific hours at the Weekly schedule level.

Technical Example

For a technical example of what a complete schedule as described above would look like, the following JSON structure accurately describes the ruleset. For arguments sake, we will define the schedule to start on the 1st of January 2024 UTC, with no end to the schedule.

To summarise, we will be creating a schedule that:

• Allows contributions to occur Monday, Tuesday, Wednesday, Thursday, Friday and Saturday
• From Monday to Friday, contributions will be allowed between 19:00:00 UTC and 21:00:00 UTC
• On Saturdays, contributions will be allowed between 08:00:00 UTC and 20:00:00 UTC

{
	"timestamp_start": 1704067200000,
	// No `timestamp_end` is specified since the schedule has no end
	"recurrence_rules": [
		{
			"frequency": {
				"Daily": {
					"hours": [
						[
							{ "hour": 19, "minute": 0, "sec": 0 }.
							{ "hour": 21, "minute": 0, "sec": 0 }
						]
					]
				}
			},
			"interval": 1, // 1 means "every day". 2 would mean "every second day"
		},
		{
			"frequency": {
				"Weekly": {
					"days": [
						["Mon", null].
						["Tue", null],
						["Wed", null],
						["Thu", null],
						["Fri", null],
						["Sat", {
							"Daily": {
								"hours": [
									[
										{ "hour": 8, "minute": 0, "sec": 0 },
										{ "hour": 20, "minute": 0, "sec": 0 }
									]
								]
							}
						}]
					]
				}
			}
		}
	]
}

As can be seen from this example, when defining the Weekly rule, each day of validity needs to be specified, along with any overrides to the underlying Daily rules that may exist.

Order of Precendence

It is important to note that any hourly overrides present in the Weekly ruleset will take precedence over those specified in the Daily rules.

How Scheduled Jackpots work

When a schedule is applied to a normal Jackpot Instance, the system performs some rudimentary initial checks (making sure that when the jackpot is created with a schedule in the future, that the status is correctly set to Pending).

Once the Jackpot Instance is Active, the applied schedule defines the periods of time during which contributions will be accepted by the Jackpot Instance. When the schedule is not accepting contributions, the Jackpot Instance will continue to be Active (this behaviour may change in the future).

How Scheduled Raffles work

When instantiating Raffle Jackpots, a schedule must be provided during instantiation time

The reason for this is due to the fact that raffles are fundamentally time-based entities with at least a start time and duration-per-raffle.

Raffles have an explicit duration which is defined as part of the Raffle Rules. Durations can be defined in units of Seconds, Minutes, Hours, Days or Weeks.

Raffles that have a schedule that is longer than a raffles duration are considered "recurring raffles" while raffles that have a schedule equal to their duration are considered "once-off raffles".

Lets examime a few examples to explore this concept:

Once off Raffles

Lets imagine a scenario where an operator wants to run a once-off raffle for the Festive season (Xmas) period which start from 00:00:00 UTC on the 1st of December 2024 and the raffle resolves (pays out) at 09:00:00 UTC on the 25th of December 2024.

Additional requirements for the raffle are that the raffle should only accept contributions between the hours of 8am CET until the end of each day.

In order to create a schedule for this type of raffle, we need to create rules that specify the hourly restrictions as well as the start and end of the raffle.

Example

{
	// Sunday, 1 December 2024 00:00:00
	"timestamp_start": 1733011200000,
	// Wednesday, 25 December 2024 09:00:00
	"timestamp_end": 1735117200000
	"recurrence_rules": [
		{
			"frequency": {
				"Daily": {
					"hours": [
						[
							{ "hour": 8, "minute": 0, "sec": 0 }.
							{ "hour": 23, "minute": 59, "sec": 59 }
						]
					]
				}
			},
			"interval": 1,
		}
	]
}

As can be seen in the example, the timestamp_start and timestamp_end have been set to the period of the Festive Season (December 1st, 2024 to December 25th 2024 respectively) and the hours of availability are set from 08:00:00 UTC to 23:59:59 UTC.

Since the jackpot is available on all days through the period, there is no need to define the Weekly ruleset.

In addition to the schedule, the raffle will also need to be configured to run for the duration of the schedule. In this case, the duration will be 24 days and 9 hours.

NOTE In general, you as an operator do not need to worry about the duration configuration as this is configured as part of the Jackpot template by the ThrillTech Jackpot Model design team and not something you as an operator need to worry about.

Daily Raffles

In this example, we will be configuring a Raffle jackpot that is available on all days of the week and will resolve (pay prizes to players) at 10pm UTC (22:00:00 UTC) each day. The raffle will start at 00:00:00 of each day and end when it resolves daily.

Example:

In this example, the raffle started on August 1st, 2024 at 00:00:00 UTC:

{
	// Thursday, 1 August 2024 00:00:00
	"timestamp_start": 1722470400000,
	"recurrence_rules": [
		{
			"frequency": {
				"Daily": {
					"hours": [
						[
							{ "hour": 0, "minute": 0, "sec": 0 }.
							{ "hour": 22, "minute": 0, "sec": 0 }
						]
					]
				}
			},
			"interval": 1,
		}
	]
}

In addition to the schedule, the raffle's duration will be defined to last 22 hours.

ThrillPots: Common Tasks / SOPs

** IMPORTANT NOTE **

This section only applies to Self-Hosted clients. SaaS customers will need to speak to their technical point-of-contact or customer success representative to request configuration changes to their service

This section will provide some Standard Operator Procedures for how to achieving various common tasks (both basic and advanced) within the ThrillPots system.

Basic Tasks

This section outlines various basic tasks that will be useful to you during the operation of the ThrillPots System.

Add a brand to the System

This process requires you to have a valid Thrill-ID token which can retrieved by authenticating with Thrill-ID. For more information, see the Thrill-ID section.

Overview

1. Add the new brand to the relevant organisation in Thrill-ID
2. Authenticate to retrieve a new token
3. Add the new brand to the relevant jackpot instance(s)

Example Data

• New brand ID: my-new-brand
• Existing brand IDs: ["brand1", "brand2"]
• Organisation ID: my-organisation
• Existing Jackpot Instance ID: 321e9e1b-8e7f-4329-bace-b8ec20b7543a

Steps

We need to add the brand to the relevant Organisation in Thrill-ID so that accounts associated with that organisation become aware of the new brand.

1. Add the new brand to the relevant organisation in Thrill-ID

• Service: Thrill-ID
• Method: PUT
• Path: /admin/organisations/my-organisation
• Content-Type: application/json
• Body:

{
	"units": [
		"brand1",
		"brand2",
		"my-new-brand"
	]
}

2. Authenticate to retrieve a new token

• Service: Thrill-ID
• Method: POST
• Path: https://thrillid.yourorg.com/accounts/auth
• Content-Type: application/json
• Body:

{
	"username": "example-account@yourorg.com",
	"password": "some_really_random_password"
}

Upon successful authentication, the response will look as follows (although the value of the tokens and access entities will be probably be different) and will contain the new brand that you added:

{
    "token": "eyJhbGciOiJIUzI1NiJ9...KydTfNYUSZFDEVNrQnWtKXNX_QYJ46RHn9tLu9qu5n",
    "refresh_token": "eyJhbGciOiJUzI1NiJ9...4lsmg2MWa3TGh6J_g51Q",
    "access_to": {
        "org_id": "my-organisation",
        "unit_ids": [
            "brand1",
            "brand2",
			"my-new-brand"
        ]
    }
}

4. Add the new brand to the relevant jackpot instance(s)

• Service: ThrillPots Service
• Method: POST
• Path: /instances/allowed_brand
• Content-Type: application/json
• Body:

{
    "instance_id": "321e9e1b-8e7f-4329-bace-b8ec20b7543a",
    "brand_id": "my-organisation:my-new-brand"
}

Create a new Jackpot Template and Jackpot Instance

This process requires you to have a valid Thrill-ID token which can retrieved by authenticating with Thrill-ID. For more information, see the Thrill-ID section.

Overview

1. Create a new Jackpot Template
2. Publish the Jackpot Template
3. Instantiate a Jackpot Instance from the Jackpot Template

Example Data

• Operator ID: my-operator
• Brand ID: my-brand

Steps

NOTE: The Operator and Brand must already exist in the system

1. Create a new Jackpot Template

• Service: ThrillPots Service
• Method: POST
• Path: /templates
• Content-Type: application/json
• Body:

{
    "name": "Quick Hit Template for Developers",
    "owner_id": "my-operator:my-brand",
    "currency": "EUR",
    "contribution_rules": {
        "opt_in_required": true,
        "contribution_type": {
            "Fixed": 0.1
        },
        "operator_contribution_percentage": 0
    },
    "house_hold_contribution": {
        "Percentage": 0.3
    },
    "win_selector_strategy": "Highest",
    "pots": [
        {
            "id": "minor",
            "contribution": {
                "Percentage": 0.25
            },
            "seed_contribution": {
                "Percentage": 0.85
            },
            "seed_strategy": {
                "initial_seed_value": 10,
                "min_reseed_value": 10,
                "fund_strategy": "CollectToMinReseed",
                "reseed_strategy": "Full"
            },
            "max_instantiation_count": null,
            "is_progressive": true,
            "supports_external_trigger": false,
            "pot_types": [{
                "HitRate": {
                    "max_magic_number": 5,
                    "cost_per_attempt": 0.1
                }
            }],
            "criteria": null,
            "max_pot_value": null
        },
        {
            "id": "major",
            "contribution": {
                "Percentage": 0.25
            },
            "seed_contribution": {
                "Percentage": 0.85
            },
            "seed_strategy": {
                "initial_seed_value": 100,
                "min_reseed_value": 100,
                "fund_strategy": "CollectToMinReseed",
                "reseed_strategy": "Full"
            },
            "max_instantiation_count": null,
            "is_progressive": true,
            "supports_external_trigger": false,
            "pot_types": [{
                "HitRate": {
                    "max_magic_number": 25,
                    "cost_per_attempt": 0.1
                }
            }],
            "criteria": null,
            "max_pot_value": null
        },
        {
            "id": "mega",
            "contribution": {
                "Percentage": 0.2
            },
            "seed_contribution": {
                "Percentage": 0.85
            },
            "seed_strategy": {
                "initial_seed_value": 1000,
                "min_reseed_value": 1000,
                "fund_strategy": "CollectToMinReseed",
                "reseed_strategy": "Full"
            },
            "max_instantiation_count": null,
            "reseed_amount": null,
            "is_progressive": true,
            "supports_external_trigger": false,
            "pot_types": [{
                "HitRate": {
                    "max_magic_number": 50,
                    "cost_per_attempt": 0.1
                }
            }],
            "criteria": null,
            "max_pot_value": null
        }
    ]
}

The response to this request, if successful, will contain the newly created template. Take a note of the id field for the next steps (We will refer to this as template-id)

NOTE If you want to control the ID assigned to the Jackpot Template, you can specify it by adding an id field to the root of the JSON object and giving it a custom identifier.

2. Publish the Jackpot Template

• Service: ThrillPots Service
• Method: POST
• Path: /templates/publish
• Content-Type: application/json
• Body:

{
    "owner_id": "my-operator",
    "template_id": "template-id",
    "publish": true
}

3. Instantiate a Jackpot Instance from the Jackpot Template

• Service: ThrillPots Service
• Method: POST
• Path: /templates/instantiate
• Content-Type: application/json
• Body:

{
    "template_owner_id": "my-operator",
    "template_id":  "template-id",
    "instance_owner_id": "my-operator",
    "instance_name": "New Jackpot Instance"
}

The response to this call will contain the details of the newly created Jackpot Instance. Take a note of the id field as this is the Jackpot Instance ID and is used in other calls like Adding a new Contribution Source

Add a new Contribution Source

This process requires you to have a valid Thrill-ID token which can retrieved by authenticating with Thrill-ID. For more information, see the Thrill-ID section.

Overview

1. Create a Contribution Source
2. Assign a Jackpot Instance to the Contribution Source

Example Data

• Operator ID: my-operator
• Brand ID: my-brand
• New source ID: my-new-source
• Existing Jackpot Instance ID: 321e9e1b-8e7f-4329-bace-b8ec20b7543a

Steps

NOTE: The Jackpot Instance, Operator and Brand must already exist in the system

1. Create a Contribution Source

• Service: ThrillPots Service
• Method: POST
• Path: /config/sources
• Content-Type: application/json
• Body:

[
    {
        "owner_id": "my-operator:my-brand",
        "source_name": "My New Source",
        "source_id": "my-new-source"
    }
]

2. Assign a Jackpot Instance to the Contribution Source

• Service: ThrillPots Service
• Method: POST
• Path: /config/sources/assignjackpot
• Content-Type: application/json
• Body:

{
    "owner_id": "my-operator:my-brand",
    "source_id": ["my-new-source"],
    "instance_id": "321e9e1b-8e7f-4329-bace-b8ec20b7543a"
}

Switching Jackpot Models

Jackpot model switching API handles the creation of new jackpot instances from a template combined with the process of transfering pot values, optins, sources, etc. from an existing one, while doing a number of validations on whether the result of the switch is appropriate.

This process requires you to have a valid Thrill-ID token which can retrieved by authenticating with Thrill-ID. For more information, see the Thrill-ID section.

Overview

1. Create a new Jackpot Template
2. Publish the Jackpot Template
3. Switch existing jackpot to the new model

Example Data

• Operator ID: my-operator
• Brand ID: my-brand
• Existing Jackpot Instance ID: 321e9e1b-8e7f-4329-bace-b8ec20b7543a
• New Jackpot Template ID: d4b6b464-79a7-4c2e-8982-b5781fc49020

Steps

NOTE: The Operator and Brand must already exist in the system

1. Create a new Jackpot Template

NOTE: Make sure to have the initial seed values for pots you are transfering money to set to zero. If not, an error will occur when attempting to switch models

2. Publish the Jackpot Template

3. Switch existing jackpot to the new model

• Service: ThrillPots Service
• Method: POST
• Path: /instances/switchmodel
• Content-Type: application/json
• Body:

{
    "source_instance_id": "321e9e1b-8e7f-4329-bace-b8ec20b7543a",
    "template_id": "d4b6b464-79a7-4c2e-8982-b5781fc49020",
    "template_owner_id": "my-operator:my-brand",
    "target_instance_owner_id": "my-operator:my-brand",
    "target_instance_name": "Example Instance 2",
    "pot_rules": [{
        "source_pot": "minor",
        "target_pot": {
            "minor": 1
        }
    }, {
        "source_pot": "major",
        "target_pot": {
            "minor": 0.05
            "major": 0.95
        }
    }, {
        "source_pot": "mega",
        "target_pot": {
            "minor": 0.2,
            "major": 0.1,
            "mega": 0.7
        }
    }],
    "transfer_optins": true,
    "reason": "Redistributing pot values",
    "dry_run": true
}

NOTES:

• Model switching does not support Raffle type jackpots;
• Transfer to pots with non zero initial seed is not allowed and will result in an error;
• All source pots must have a target and the whole pot amount value must be transferred;
• Transfer of opt-ins can only happen if the jackpot shape is not changed (number of pots, pot names, etc.);
• No changes will be persisted if the dry_run flag is set;

General Services

Thrill-ID

Thrill-ID is a centralised authentication and authorization rights used by the entire ThrillTech technology ecosystem. It manages authentication and authorisation for both User and Service accounts.

There are 3 main sub-systems within the Thrill-ID service:

• Systems
• Organisations
• Accounts

Systems describe the ThrillTech systems which comprise the ThrillTech technology platform (for example ThrillPots, Thrill-ID, ThrillPots Gateway, ThrillGate are all "systems"). Each system exposes its own unique set of Resources which are defined as part of the system.

Organisations define the organisations and units to which Accounts are related. Within the iGaming realm, an Organisation describes the operator and its underlying brands. Accounts can then be bound to either the Organisation as a whole, or a brand/organisational unit.

For example, lets take an example of an Operator called MegaBet which has 2 brands, namely MegaSportsBet and MegaCasinoBet. This organisation structure is defined as follows:

{
    "id": "megabet",
    "units": [
        "megasportsbet",
        "megacasinobet"
    ],
    "enabled": true
}

Finally, an Account describes either a User or Service account which can access and interact with the ThrillTech platform. Accounts can be restricted to specific System interactions, or have broad permissions across a number of System types. Accounts can be restricted not only to specific systems, but also to a subset of each system's exposed Resources.

IMPORTANT For the next sections, assume that all calls need to be authenticated. Authentication is done by passing your issued JWT token as a Bearer token in the Authorization header.

Creating a new Organisation in Thrill-ID

To create a new organisation in Thrill-ID, we use the POST /admin/organisations endpoint on Thrill-ID.

Example:

Request: POST http://localhost:9000/admin/organisations

Body:

{
    "id": "new_org_id",
    "enabled": true,
    "units": [
        "org_unit1",
        "org_unit2"
    ]
}

Once your new organisation is created, you are able to create user accounts for that organisation. It is important to note that if the organisation does not exist, attempts at creating accounts for the organisation will fail

Example: Backoffice User Account

A backoffice user account for user jackpot-manager@megabet.com which has access to both brands would most like have Write access to the ThrillPots system.

An example of such an account could look as follows:

Request: POST http://localhost:9000/admin/accounts

Body:

{
    "account_type": "User",
    "username": "jackpot-manager@megabet.com",
    "password": "password of your choosing",
    "org_unit": {
        "org_id": "megabet"
    },
    "permissions": [
        {
            "system_id": "thrillpots",
            "permissions": [
                {
                    "resource_id": "Instances",
                    "permission": "Write"
                },
                {
                    "resource_id": "Reports",
                    "permission": "Read"
                }
            ]
        }
    ],
    "enabled": true
}

Example: ThrillPots Integration Service Account

Now lets have a look at what a service account would look like if the service was intended to integrate with the ThrillPots Gateway service. This account will need Write access to jackpot Instances as well as Config access for the defined sources.

Request: POST http://localhost:9000/admin/accounts

Body:

{
    "account_type": "Service",
    "username": "thrillpots-integration-service@megabet.com",
    "password": "password of your choosing",
    "org_unit": {
        "org_id": "megabet"
    },
    "permissions": [
        {
            "system_id": "thrillpots",
            "permissions": [
                {
                    "resource_id": "Instances",
                    "permission": "Write"
                },
                {
                    "resource_id": "Config",
                    "permission": "Read"
                }
            ]
        }
    ],
    "enabled": true
}

Thrill-ID: Authenticating

In order to communicate with most APIs within the ThrillTech system you will need an authenticated token issued by Thrill-ID.

This section assumes that you have either been provided an account or have created an account as shown in the previous section.

Once you have the username and password for a valid account created in Thrill-ID, you will need the authenticate that account with Thrill-ID to retrieve a Bearer token for future use.

Example: Authenticating

In this example, we will assume that you have created an account with the following credentials:

username: "example-account@yourorg.com"
password: "some_really_random_password"

In order to authenticate with Thrill-ID and retrieve the account's token for use with other APIs, you need to make a call to POST /accounts/auth. For example, if the Thrill-ID service is hosted at https://thrillid.yourorg.com, the call would look like this:

• Request: POST https://thrillid.yourorg.com/accounts/auth
• Content-Type: application/json
• Body:

{
	"username": "example-account@yourorg.com",
	"password": "some_really_random_password"
}

Upon successful authentication, the response will look as follows (although the value of the tokens and access entities will be probably be different):

{
    "token": "eyJhbGciOiJIUzI1NiJ9...KydTfNYUSZFDEVNrQnWtKXNX_QYJ46RHn9tLu9qu5n",
    "refresh_token": "eyJhbGciOiJUzI1NiJ9...4lsmg2MWa3TGh6J_g51Q",
    "access_to": {
        "org_id": "thrilltech",
        "unit_ids": [
            "brand1",
            "brand2",
        ]
    }
}

Response Details

Using the Bearer Token

Once you have authenticated with Thrill-ID, you can pass the received token to future API calls within the ThrillTech system by setting the Authorization header to contain the token as a Bearer token, for example:

Authorization: Bearer eyJhbGciOiJIUzI1NiJ9...KydTfNYUSZFDEVNrQnWtKXNX_QYJ46RHn9tLu9qu5n

Refreshing tokens

To refresh a token for a User account, you can use the POST /accounts/refresh endpoint. Simply pass in the current token and refresh_token that you received from the initial authentication call and you will receive updated, valid tokens:

Example

• Request: POST https://thrillid.yourorg.com/accounts/refresh
• Content-Type: application/json
• Body:

{
	"token": "eyJhbGciOiJIUzI1NiJ9...KydTfNYUSZFDEVNrQnWtKXNX_QYJ46RHn9tLu9qu5n",
	"refresh_token": "eyJhbGciOiJUzI1NiJ9...4lsmg2MWa3TGh6J_g51Q"
}

If successful, the response will be the same as when you authenticated (just with new tokens):

{
    "token": "eyJhbGciOiJIUzI1NiJ9...KydTfNYUSZFDEVNrQnWtKXNX_QYJ46RHn9tLu9qu5n",
    "refresh_token": "eyJhbGciOiJUzI1NiJ9...4lsmg2MWa3TGh6J_g51Q",
    "access_to": {
        "org_id": "thrilltech",
        "unit_ids": [
            "brand1",
            "brand2",
        ]
    }
}

ThrillConnect Service

The ThrillConnect Service is designed to be an "edge" service, meaning that it can be deployed to the edge of your hosting environment and service requests from your frontend(s) as well as other services (both internal or 3rd party).

ThrillConnect provides the following API interfaces for your frontend to use:

• REST API (for information retrieval purposes)
• Authenticate WebSocket interface (for authenticated requests and ad-hoc event delivery)

ThrillConnect: ThrillPots REST API

ThrillConnect provides a REST API for your applications (frontend or otherwise) to safely retrieve information about jackpots that are running in the environment.

Retrieving a Jackpot for a particular Source

If you want to retrieve a jackpot for a specific source_id, you can call the following endpoint:

GET /v1/thrillpots/instances/source/:source_id/brand/:brand_id

This request will use the provided parameters to retrieve the most appropriate jackpot for the source_id, brand_id, player_id and country_code combination.

If you specific the player_id, you will also receive the opt-in status for that player in the response.

HINT: Once you have retrieved the Jackpot for a source, you can use the id of the Jackpot instance for when you need to opt a player in or out

Retrieving Currency Exchange Rates

If you need to retrieve the active exchange rates in use by the ThrillPots system, you can call the currencies endpoint:

GET /v1/currencies

This will retrieve the current exchange rates from the base currency of the system, for example:

{
    "last_updated": 1715126401000,
    "base_currency": "EUR",
    "multipliers": {
        "EUR": 1.0,
        "USD": 1.0762,
        "GBP": 0.8592,
        "CAD": 1.4753,
        "PLN": 4.311,
        ...
        "NZD": 1.7921,
        "AUD": 1.6303,
        "RON": 4.9753,
        "SGD": 1.4567,
        "SEK": 11.6761,
    }
}

Retrieving ThrillPots Sources

You can retrieve all configured sources for a specific brand by using:

GET /v1/thrillpots/sources?owner_id=XXX

The response to this query, if any sources have been configured for the owner_id will look something like this:

[
    {
        "owner_id": "thrilltech:brand1",
        "source_name": "site-wide",
        "source_id": "site-wide-source",
        "jackpots": [
            {
                "priority": 0,
                "owner_id": "thrilltech",
                "instance_id": "209cc142-ccb2-4e28-a763-0a031b560d74"
            }
        ]
    },
    {
        "owner_id": "thrilltech:brand1",
        "source_name": "Deposit jackpot",
        "source_id": "deposit-source",
        "jackpots": [
            {
                "priority": 0,
                "owner_id": "thrilltech",
                "instance_id": "0a031b56-4e28-a763-ccb2-2090d74cc142"
            }
        ]
    }
]

ThrillConnect: WebSocket API

ThrillConnect exposes an authenticated WebSocket API for use by your frontend or service applications.

Connecting to the WebSocket endpoint

In order to connect to the ThrillConnect WebSocket endpoint, create a WebSocket client and connect to:

ws://thrillconnect_service_host/v1/events/:operator_id/:brand_id

Example

ws://thrillconnect_service_host/v1/events/casino-group/awesome-brand?token=session_token_00001&currency=USD

Once a connection is established, ThrillConnect will attempt to authenticate the player using the token provided with your wallet/account system. This authentication will take place using the Authentication endpoint via ThrillGate.

If authentication is successful, the connection will remain open. If authentication fails, the connection will be closed with a 401 error.

WS Message Structure

All messages that you receive from the ThrillConnect WebSocket connection have the following structure:

{
    "msg_type": String, ("Event" | "Message" | "Error"),
    "source": String,
    "msg_name": String,
    "operator_id": String,
    "brand_id": String,
    "player_id": String,
    "data": Object,
    "timestamp: Number
}

ThrillConnect: Event Subscription

• Subscribing for Events
• Basic Event Structure
• ThrillPots Event Types
  • JackpotUpdate
  • OptInEvent
  • WinEvent
  • RaffleWinEvent
• ThrillGate Event Types
  • PlayerBonusUpdateData
    • GameBonusDetails
    • PlayerFixedFreeSpins
    • PlayerVariableFreeSpins

Subscribing for events

Once you have a connection established, you will usually want to subscribe for events. The ThrillTech event system allows you to specify which systems, and which events from those systems, you wish to subscribe to.

To subscribe for events from the ThrillPots system, you must send a SubscribeRequest message via the websocket connection. For example, to subscribe to all events from the thrillpots system, you can send the following message:

{
    "SubscribeRequest": {
        "events": [{
            "source": "thrillpots",
            "event_type": "*"
        }]
    }
}

If you want to subscribe to specific events only, for example if you only want to subscribe to JackpotUpdateEvents, you could send the following request:

{
    "SubscribeRequest": {
        "events": [{
            "source": "thrillpots",
            "event_type": "JackpotUpdate"
        }]
    }
}

Subscribing for Freebet Events

Freebet events are sent by the ThrillGate service, and you will need to specifically subscribe to those events. You can do this by adding the thrillgate source to the subscription:

{
    "SubscribeRequest": {
        "events": [{
            "source": "thrillpots",
            "event_type": "*"
        },
        {
            "source": "thrillgate",
            "event_type": "*"
        }]
    }
}

Basic Event Structure

All events have the following base structure:

{
    "msg_type": String,
    "source": String,
    "msg_name": String,
    "operator_id": String,
    "brand_id": String,
    "player_id": String,
    "data": Object // This is where the pertinent event data resides (described below)
}

ThrillPots Event Types

The following events are available to be subscribe to for ThrillPots:

JackpotUpdate

JackpotUpdate events are sent periodically to keep your application informed of the latest jackpot values.

An example JackpotUpdate event could look like this:

{
    "msg_type": "Event",
    "source": "thrillpots",
    "msg_name": "JackpotUpdate",
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "player_id": null,
    "data": {
        "id": "f689317d-81c8-4395-b689-10ce6f88089e",
        "currency": "EUR",
        "pots": [
            {
                "id": "minor",
                "is_progressive": true,
                "current_value": 10.0,
                "community_split": null
            },
            {
                "id": "major",
                "is_progressive": true,
                "current_value": 100.21749999999994,
                "community_split": null
            },
            {
                "id": "mega",
                "is_progressive": true,
                "current_value": 1000.045,
                "community_split": 0.5
            }
        ],
        "allowed_brands": [
            "thrilltech:brand1",
            "thrilltech:brand2",
        ],
        "allowed_sources": [],
        "status": "Active",
        "last_updated": 1715154276442
    },
    "timestamp": 1715191298453
}

OptInEvent

When a player opts-in or opts-out of a jackpot, an event will be sent to that player's WebSocket connection. An structure of the data for an OptInEvent looks like this:

{
    "instance_id": String,
    "player_id": String,
    "player_brand_id": String,
    "preferred_contribution_value": Number,
    "preferred_contriubtion_currency": String,
    "opted_in": Boolean,
    "requested_optin": Boolean,
    "last_updated": Number,
}

WinEvent

When a Jackpot is won, the ThrillPots system publishes a WinEvent which contains the details of the win. This message is sent to all connections that are subscribed to the receive the event. The structure of the data portion of the Event message looks like this:

{
    "brand_id": String,
    "player_id": String,
    "source_id": Option<String>,
    "instance_id": String,
    "jackpot_name": String,
    "jackpot_currency": String,
    "timestamp": u64,
    "win_pot_id": String,
    "win_amount": Number,
    "currency_multipliers": {
        "brand_id": String,
        "base_currency": String,
        "multipliers": {
            "EUR": Number,
            "GBP": Number,
            "ZAR": Number,
            ...
            "NZD": Number,
            "SEK": Number
        }
    }
    "win_withheld": bool,
    "community_winners": null | [
        {
            "player_id": String,
            "brand_id": String,
            "currency": String,
            "win_amount": Number,
            "reason": String,
        }
    ],
    "games_in_jackpot": Vec<String>,
    "seed": Decimal
}

RaffleWinEvent

When a Raffle Jackpot resolves and winners are determines, a RaffleWinEvent which contains the details of the wins will be sent. The message is sent to all connections that are subscribed to receive the event. The structure of the data portion of the Event message looks like this:

{
    "brand_id": String,
    "instance_id": String,
    "jackpot_name": String,
    "jackpot_currency": String,
    "currency_multipliers": {
        "brand_id": String,
        "base_currency": String,
        "multipliers": {
            "EUR": Number,
            "GBP": Number,
            "ZAR": Number,
            ...
            "NZD": Number,
            "SEK": Number
        }
    }
    "timestamp": Number,
    "winners": [
        {
            "player_id": String,
            "brand_id": String,
            "currency": String,
            "win_amount": Number
        }
    ],
    "win_withheld": bool
}

ThrillGate Event Types

The following Freebet/Bonus events are available to be subscribe to for ThrillGate:

Freebet/Bonus events

All the PlayerBonusXXX events carry the same payload (defined below).

PlayerBonusUpdateData

{
    "bonus_data": {
        "id": String,
        "player_id": String,
        "operator_id": String,
        "brand_id": String,
        "promo_id": String | null,
        "bonus_instance_id": String,
        "available_for": [GameBonusDetails],
        "bonus_data": {
            "Freespins": {
                "id": String,
                "name": String,
                "freespin_type": PlayerFixedFreeSpins | PlayerVariableFreeSpins
            }
        }
        "state": "Available" | "Consumed" | "Expired",
        "timestamp_bonus_awarded": Integer,
        "timestamp_bonus_expires": Integer,
        "timestamp_bonus_consumed": Integer | null
    }
}

GameBonusDetails

{
    "provider_id": String,
    "game_ids": [String]
}

PlayerFixedFreeSpins

{
    "type": "PlayerFixedFreeSpins",
    "currency": String,
    "count": Integer,
    "used": Integer,
    "value": Number
}

PlayerVariableFreeSpins

{
    "type": "PlayerFixedFreeSpins",
    "currency": String,
    "amount": Number,
    "amount_used": Number
}

ThrillConnect: ThrillPots Requests

You can use the authenticated WebSocket connection to send requests that are relevant to the authenticated player.

Opt-In/Out Request

In order to opt a player into or out of a jackpot, you use the PlayerOptInRequest message. This allows you to send not only standard opt-in / opt-out requests, but also to specify the contribution value that the player wishes to opt-in with.

Example: Opting a player in with the default contribution value

{
    "PlayerOptInRequest": {
        "instance_id": "209cc142-ccb2-4e28-a763-0a031b560d74",
        "brand_id": "thrilltech:brand1",
        "player_country": "MT",
        "opt_in": true
    }
}

Example: Opting a player in with a specific contribution value (0.30)

{
    "PlayerOptInRequest": {
        "instance_id": "209cc142-ccb2-4e28-a763-0a031b560d74",
        "brand_id": "thrilltech:brand1",
        "player_country": "MT",
        "opt_in": true,
        "contribution_value": 0.3
    }
}

Example: Opting a player out of a jackpot

{
    "PlayerOptInRequest": {
        "instance_id": "209cc142-ccb2-4e28-a763-0a031b560d74",
        "brand_id": "thrilltech:brand1",
        "player_country": "MT",
        "opt_in": false
    }
}

If the opt-in or opt-out request was successful, you will receive an OptInEvent

Opt-In/Out Request V2

V2 api allows to opt in via either source or instance identifier. Additionaly, opt_linked can be passed to opt in/out to any jackpot linked instances.

Example: Opting a player in with the default contribution value using source identifier

{
    "PlayerOptInRequestV2": {
        "target": {
            "type": "source",
            "id": "sitewide-casino"
        },
        "country": "MT",
        "segments": ["vip-1", "regular"]
        "opt_in": true
    }
}

Example: Opting a player in with a specific contribution value (0.30) using instance identifier

{
    "PlayerOptInRequestV2": {
        "target": {
            "type": "instance",
            "id": "209cc142-ccb2-4e28-a763-0a031b560d74"
        },
        "country": "MT",
        "contribution_preference": {
            "value": 0.3
        },
        "opt_in": true,
    }
}

Example: Opting a player in with a preferred contribution value and currency

{
    "PlayerOptInRequestV2": {
        "target": {
            "type": "instance",
            "id": "209cc142-ccb2-4e28-a763-0a031b560d74"
        },
        "country": "MT",
        "contribution_preference": {
            "value": 0.3
            "currency": "EUR"
        },
        "opt_in": true,
    }
}

Example: Opting a player in to all linked instances

{
    "PlayerOptInRequestV2": {
        "target": {
            "type": "instance",
            "id": "209cc142-ccb2-4e28-a763-0a031b560d74"
        },
        "country": "MT",
        "opt_in": true,
        "opt_linked": true
    }
}

You will receive an OptInEvent for each instance the opt-in/out was successful

Retrieving a player's raffle tickets for a specific instance

To retrieve a player's raffle ticket count for a specific Raffle Jackpot, send the PlayerRaffleTicketsRequest message:

{
    "PlayerRaffleTicketsRequest": {
        "player_id": "player_00001",
        "instance_id": "f0dee1ae-6231-458a-ad6d-4dc0c941e5c3",
        "brand_id": "thrilltech:brand1"
    }
}

If the request was valid, you will receive a PlayerRaffleTicketResponse message:

{
    "msg_type": "Message",
    "source": "thrillpots",
    "msg_name": "PlayerRaffleTicketResponse",
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "player_id": "player_00001",
    "data": {
        "instance_id": "f0dee1ae-6231-458a-ad6d-4dc0c941e5c3",
        "ticket_count": 8
        "timestamp_start": 134857982371,
        "timestamp_end": 14384723487,
    },
    "timestamp": 1715191298453
}

Retrieving all of a player's raffle tickets for active raffles

To retrieve all the raffle tickets for all active raffles for a player (in other words, not specific to a particular raffle), you can use a modified version of the above PlayerRaffleTicketsRequest request (omitting the instance_id on the request):

{
    "PlayerRaffleTicketsRequest": {
        "player_id": "player_00001",
        "brand_id": "thrilltech:brand1"
    }
}

If the player has earned any raffle tickets on any active raffles, the response will be a PlayerRaffleTicketListResponse and will look something like this:

{
    "msg_type": "Message",
    "source": "thrillpots",
    "msg_name": "PlayerRaffleTicketListResponse",
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "player_id": "player_00001",
    "data": {
        "instance_tickets": [
            {
                "instance_id": "raffle_instance_a_id",
                "ticket_count": 8
                "timestamp_start": 134857982371,
                "timestamp_end": 14384723487,
            },
            {
                "instance_id": "raffle_instance_b_id",
                "ticket_count": 3
                "timestamp_start": 134857982371,
                "timestamp_end": 14384723487,
            },

        ]
    },
    "timestamp": 1715191298453
}

In the case that a player has not earned any raffle tickets for active raffles, the list will be empty. For example:

{
    "msg_type": "Message",
    "source": "thrillpots",
    "msg_name": "PlayerRaffleTicketListResponse",
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "player_id": "player_01010",
    "data": {
        "instance_tickets": []
    },
    "timestamp": 1715191298453
}

Service Configuration

By default, ThrillConnect will create default configurations for its dependencies and you will usually need to change these.

NOTE You will need to have an authenticated Bearer token in order to use the APIs described in this section

Authenticating

Authenticate using an administrative account via Thrill-ID. You can refer to the Thrill-ID documentation for more information, but below is an example:

• Request: POST https://thrill-id.hostname/accounts/auth
• Body (JSON):

{
    "username": "admin@thrilltech.io",
    "password": "password"
}

Once you have your token, you can proceed with updating the service configuration.

Updating Service Configuration

There are currently 2 service dependencies that can be configured for ThrillConnect:

• ThrillPots
• BitBridge

Updating the configuration for either of these services follows the same process as outlined below.

Example: Updating ThrillPots service host

In this example, we will update the host for the ThrillPots service which allows ThrillConnect to successfully communicate with ThrillPots. Let us imagine that we wish to change the host to host.docker.internal:8084, we would send the following message to ThrillConnect:

• Request: POST https://thrillconnect.host-name/v1/admin/service
• Headers:
  • Authorization: Bearer [TOKEN]
• Body (JSON):

{
    "id": "thrillpots",
    "host": "http://host.docker.internal:8084",
}

ThrillGate Service

ThrillGate is the service used to integrate with an operator's wallet and bonus APIs. It supports both Provider-to-Operator and Operator-to-Provider integration models, meaning that either ThrillTech can integrate to an operator's APIs or the operator can integrate to ThrillTech's "Standard" integration API.

At its core, ThrillGate provides a standard approach to authenticating player session tokens, performing transactions (both single and batches of transaction) as well as transaction cancellation mechanics.

Standard Wallet API

When doing an Operator-to-Provider integration, ThrillGate provides a definition of an API that should be exposed by the operator wallet. This definition is called the "Standard Wallet API" and supports all the functionality that ThrillTech services require from an integration with the operator platform.

Security

The Standard Wallet API uses HMAC to secure its payloads and allow the operator system to verify that the request has been sent from the expected ThrillGate source service.

Integrating

Refer to the product specific section(s) on integrating ThrillGate's Standard Wallet API with your platform.

ThrillPots Wallet Integration

Configuring Wallet Connectivity

Self-hosted operators have the ability to customize certain aspects of how ThrillGate integrates and operates when integrated with one or more operator wallet systems. This section describes the general configuration options available.

Customizing ThrillGate integration behaviour

NOTE: For all the API calls below, you will need to have a valid authenticated token issued by Thrill-ID and attach it as a Bearer token on the Authorization header

Each brand must have a wallet definition created in ThrillGate. These wallet configurations are made via the POST thrillgate_server/admin/wallets Admin API.

Example

{
    "id": "CasinoWallet",
    "operator_id": "thrilltech",
    "brand_id": "casino1",
    "connection_details": {
        "protocol": "https",
        "host": "your_wallet_server_host",
        "port": 443
    },
    "endpoints": {
        "auth": "/auth",
        "balance": "/balance",
        "debit": "/debit",
        "credit": "/credit",
        "cancel_bet": "/cancel"
    },
    "config": {
        "secret_key": "this_is_the_hmac_secret"
    }
}

The ThrillGate wallet configuration supports customization of behaviour via the config field which is an object that supports the following properties:

Configuring Wallet Error Behaviour

NOTE: Self-Hosted customers have the ability to define these conditions themselves within ThrillGate. If you are a SaaS customer, you will need to request any specific rules that you wish you to have via your Account Manager

It is possible to configure the way ThrillGate reacts to specific wallet errors.

The standard wallet error structure is defined as:

{
    "code": String,
    "message": String
}

Therefore, if your wallet need to respond with a 403 error (for example), the response would be:

HTTP Error Code: 403 Body:

{
    "code": "FORBIDDEN",
    "message": "",
}

Now, if you wanted to configure ThrillGate to never retry when your wallet returns a 403 error, you could add the following sub-document to your wallet's config field:

{
    ...
    "config": {
        "error_response_rules": {
            "403:FORBIDDEN": {
                "must_retry": false
            }
        }
    }
}

From this example, you can see that you can also specialise specific errors based on their code value in the error response.

In other words, you could create different rules for handling a 400 error with code set to INVALID_STRUCTURE and separate rules for 400 with code set to INVALID_PROPERTY_VALUE.

This type of control can be useful if your wallet has specific requirements for retry or cancellation handling from ThrillGate.

The error_response_rules object structure is defined as:

{
    "HTTP_ERROR_CODE:ERROR_CODE_VALUE": {
        "must_retry": Boolean,
        "must_cancel": Boolean,
    }
}

Both must_retry and must_cancel are optional values and default to true if not set.

BitBridge

BitBridge is a service that connects external data sources to the ThrillTech platform. Currently, it is primarily used for fetching (or receiving) updated exchange rates from either an operator's platform or an external feed provider and synchronising all services with these rates.

The default external provide we use as www.exchangerate-api.com. In order to make use of this exchange rate feed, you will need to create an API key with the provider and with that, BitBridge can be configured to use the provider.

If BitBridge is configured to retrieve exchange rates, it will do so hourly.

Configuring BitBridge for ExchangeRate-API.com

You will need to visit www.exchangerate-api.com and create a new API key for your organisation or environment. Once you have the key, go through these steps to configure BitBridge correctly. In this example, we are using MongoDB Compass:

1. Connect to your MongoDB database and open the bitbridge.config collection
2. Click the ADD DATA button (assuming that you're using Compass)
3. Select Insert Document
4. Paste the following document into the dialog that opens up:

{
  "doc_type": "job-config",
  "job_type": "ExchangeRateAPI",
  "config": {
    "host": "https://v6.exchangerate-api.com",
    "path": {
      "GET": "/v6/:key/latest/:base_currency"
    },
    "response": "exchange",
    "parameters": [
      {
        "location": "Path",
        "key": "key",
        "value": "YOUR_API_KEY_GOES_HERE"
      },
      {
        "location": "Path",
        "key": "base_currency",
        "value": "EUR"
      }
    ]
  },
  "active": true
}

5. In the first element of parameters, change the value field to be your API KEY that you created on exchangerate-api.com
6. Save the document and restart bitbridge

Other Exchange Rate Providers

If you need BitBridge to be integrated with another internal or 3rd party exchange rate provider, please speak to your ThrillTech contact person or account manager about doing the integration.

Pushing Exchange Rates

If you would like to push exchange rates periodically to BitBridge from your own source of exchange rates, this is possible using the POST /currencies API endpoint available on BitBridge.

Each time you push new exchange rates to BitBridge, the rest of the ThrillTech services will be synchronised with the new exchange rates.

Example

In this example, we will be pushing currency exchange rates for the EUR base currency:

POST /currencies

{
  "base_currency": "EUR",
  "rates": {
    "HNL": 26.6701,
    "DJF": 192.0955,
    "SCR": 15.3367,
    "KHR": 4372.5658,
    "GMD": 72.8486,
    "BWP": 14.8547,
    "GBP": 0.8578,
    "BYN": 3.5272
  }
}

As soon as the call is successfully complete, BitBridge will ensure that all other ThrillTech services are updated with the new exchange rates.

Retrieving latest exchange rates

If you would like to retrieve the latest exchange rates that BitBridge has, you can do so by calling the following endpoint:

GET /currencies/:base_currency

base_currency defines the base currency of the exchnage rate table that you want to retrieve. In a typical setup, BitBridge is only configured to fetch exchange rates for one base currency (eg base currency EUR). In this case, to retrieve the exchange rates for the EUR base currency, you would make the following call:

GET /currencies/EUR

If the exchange rates for the EUR base currency exist, you should receive a response that looks like this:

{
    "last_updated": 1711396353136000,
    "base_currency": "EUR",
    "multipliers": {
        "GYD": 226.0646,
        "SBD": 8.9604,
        "XAF": 655.957,
        "MAD": 10.9099,
        ...
        "KID": 1.6587,
        "SLE": 24.4312,
        "ARS": 923.8843,
        "SAR": 4.0533,
        "AFN": 77.2238
    }
}

BitBridge messaging setup

BitBridge can be configured to use ThrillTech system events in order to dispatch messages to various channels. In order to do so, there are two required elements of configuration - dispatchers and templates.

NOTE: We provide a Postman collection which contains complete examples of payloads for the concepts described in this document here. We suggest reviewing the relevant payloads for complete examples of structures while working through this documentation

Dispatchers

Dispatchers are the entities that define the transport layer.

Currently, we support two types of transport - SMTP and Telegram.

Dispatchers explicitly list the events that they can handle.

• If an event matches more than one dispatcher, the highest priority one is selected.
• If multiple dispatchers have the same priority, they all attempt to handle the event. operator_id and brand_id can be used to further narrow the list of available dispatchers for events carrying brand dimension.

This is what a SMTP dispatcher configuration looks like in the DB:

{
  "id": "gmail.smtp.thrilltech",
  "dispatcher_type": "Smtp",
  "operator_id": "thrilltech",
  "brand_id": "brand1",
  "event_types": [
    "ForgotPasswordStarted"
  ],
  "enabled": true,
  "config": {
    "host": "smtp.gmail.com",
    "user": "username",
    "pass": "password"
  },
  "priority": 0,
  "created": {
    "$date": "2025-06-27T13:21:26.727Z"
  },
  "updated": {
    "$date": "2025-06-27T13:21:26.727Z"
  },
  "owner_id": "thrilltech"
}

Dispatchers filtering

Dispatchers can optionally be bound to operator_id and brand_id allowing the use of different dispatchers ( email address, telegram bot ) per operator / operator:brand.

Dispatchers config

Config (defined in the .config field) is specific to the dispatcher type. Following are the examples of the two currently supported types.

SMTP:

"config": {
    "host": "smtp.host.com",
    "user": "username",
    "pass": "password"
  }

Telegram:

"config": {
    "token": "xx-xx-xx"
  }

Templates

Once an event matches a dispatcher, we need a suitable template to render the event. If an event matches more than one template, the highest priority one is selected. If multiple templates have the same priority, they all attempt to render the event and this results in multiple messages being sent.

Templates filtering

A template can optionally be bound to a single dispatcher, making it exclusive for that dispatcher.
A template can optionally define additional filtering rules, matching on the event data - e.g. matching a list of brands on the WinEvent. Template filters can contain multiple nested And/Or conditions. Below you'll find common examples of such filters. When you have a use-case not covered by the examples, please contact us for assistance.

Example - filter matching only withheld wins.

	"event_filter": {
    "items": [
      {
        "Rule": {
          "input_key": "data.win_withheld",
          "target_value": true,
          "match_mode": "BoolMatch"
        }
      }
    ],
    "mode": "And"
  },

Example - filter matching only wins greater than 100.

	"event_filter": {
    "items": [
      {
        "Rule": {
          "input_key": "data.win_amount",
          "target_value": 100,
          "match_mode": "Gt"
        }
      }
    ],
    "mode": "And"
  },

Example - filter matching only wins that caused seed deficit.

	"event_filter": {
    "items": [
      {
        "Rule": {
          "input_key": "data.seed_deficit",
          "target_value": 0,
          "match_mode": "Gt"
        }
      }
    ],
    "mode": "And"
  },

Example - filter matching only wins from brand A.

	"event_filter": {
    "items": [
      {
        "Rule": {
          "input_key": "data.brand_id",
          "target_value": "A",
          "match_mode": "Exact"
        }
      }
    ],
    "mode": "And"
  },

Template subscribers

A template can explicitly list the message recipients. Depending on the template type those are:

• Telegram: chat / room identifiers
• e-mail: e-mail addresses

Template context

In some scenarios a template needs extra context, e.g. when the user triggers the Forgot Password flow and needs to receive the message on their user contact. A recipient context is then used. That context then provides the destination of the message.
Example recipient context, based on the Forgot Password event:

"context": {
    "recipient": {
      "Relative": "data.ForgotPasswordStarted.contacts.email"
    }
  },

Context can be either Relative or Absolute. Relative context uses data from the event payload. Absolute context provides its value as it is.

Template config

SMTP Template config

SMTP Template config consists of 3 values, the HTML content, plaintext content and e-mail subject. All the values do interpolation with the event payload.

"config": {
    "template_html": "<html>A win was withheld! player: {{ data.player_id }}, amount: {{ data.win_amount }}, brand:{{ data.brand_id }}, withheld: {{ data.win_withheld }}</html>",
    "template_plain": "Withheld win plaintext",
    "template_subject": "Player {{ data.player_id }} had their win withheld!"
  },

Telegram Template config

Telegram template config defines a list of messages. All messages will be sent, in the defined order. Possible message types and their corresponding data:

• Image: image url
• Video: video url
• Plaintext: text without any formatting
• Markdown: markdown formatted text, as per Telegram Markdown v2 spec
• Html: html formatted text, as per Telegram HTML rendering capabilities

All message types interpolate their data. You can use this to generate dynamic URLs for the Image / Video message types.

"config": {
    "messages": [
      {
        "message_type": "Plaintext",
        "message_data": " Player {{ data.player_id }} won the Jackpot!"
      },
      {
        "message_type": "Video",
        "message_data": "https://host.com./storage/jp_win_animation.gif"
      },
      {
        "message_type": "Image",
        "message_data": "https://host.com/storage/jp_win_{{ data.win_pot_id }}.png"
      }
    ]
  },

Template interpolation

Custom helpers functions are available in any template and can be used to transform values before they are inserted:

• mask – masks sensitive strings with * characters
• format_decimal – formats numeric values with a desired precision

mask

{{mask value mask_length=4 show_first=0 show_last=0}}

• mask_length - number of * characters inserted (default 4)
• show_first - number of characters to keep from the start of the original string (default 0)
• show_last - number of characters to keep from the end of the original string (default 0)

Examples:

{{mask data.username}}                          => ****
{{mask data.username mask_length=6}}            => ******
{{mask data.username show_first=2}}             => my****
{{mask data.username show_last=2}}              => ****er
{{mask data.username show_first=2 show_last=2}} => my****er

format_decimal

{{format_decimal value precision=0}}

value may be a number or a numeric string. The helper converts it to a floating point number and formats it with the desired precision.

Examples:

{{format_decimal data.amount}}             => 10
{{format_decimal data.amount precision=3}} => 10.000

ThrillPots Overview

Welcome to the ThrillPots Integration Guide.

ThrillPots is an advanced standalone Jackpot Platform that allows casinos to offer their players jackpots over "everything". Be it offering a sitewide jackpot across games from various providers, to a seasonal Raffle jackpot for the 12 days of Christmas or even a Bad Beat jackpot for your poker players, ThrillPots can do it all (and more).

The goal of this guide is to make integrating with ThrillPots as painless as possible by providing you, the technical reader, with all the information you need and taking you step by step through a standard integration process.

Release Notes - June 2025

IMPORTANT: As with most of our releases, the intent is that all packages are deployed to their latest versions (stipulated in Docker Images (final images)).

• General
• New Features
• Changes/Improvements
• Bug Fixes
• Docker Images

General

This release brings with it a number of important features and changes:

• The Always-Fair MultiCurrency system has been extended to provide support for currency-specific optin logic. Operators who support players changing their active currencies can now choose to require that players opt-in for each currency. If this is enabled, then players opted in for currency A will not automatically be opted in when switching to currency B.

• A new OptInEvent for both ThrillConnect -> Frontend and ThrillPots Gateway -> Event Processor. This has been done to provide comprehensive and intentionally backward compatibility for existing integrations consuming the OptInEvent. This is related to the Always-Fair MultiCurrency Opt-Ins feature in ThrillPots.

• A new credit transaction handling flow which reduces the number of cancel requests for credit transactions to operator platforms (ideally to 0), while also ensuring that credit transactions (wins) are given the best chance to be processed to the player's wallet.

• A new contribution constraint to limit jackpot contribution values to not be larger than the bet made into the underlying game.

BREAKING CHANGES

The following updates may represent breaking changes in your existing integration. Please review the release notes carefully and if you have any doubts, feel free to reach out to your technical point of contact.

• Changes to OptInEvent
• Retrieving opt-in status for a player via the "Get Instance by Source" APIs (v1 and v2) may create a breaking change due to an update in the shape of the OptInRecord. Please review the latest schema documentation for OptInRecord to determine if you need to make changes.
• ThrillConnect REST Opt-In endpoint (deprecated since 0.1.26) has been removed.
• New set of ENV variables required for Redis on ThrillOffice. Full list here.
• Extra data projected on Reconciliation Report API on ThrillOffice. API docs here.

New Features

ThrillPots

• Always-Fair MultiCurrency Opt-Ins

  • In the April 2025 Release, we introduced the *Always Fair Multicurrency solution which allowed minimum and maximum bets to be defined per currency while maintaining the integrity and fairness of the underlying jackpot maths and mechanics.
  • This release brings a further enhancement to the platform, allowing operators which support multiple wallets per player account to allow players to opt-in and out for specific bet sizes per currency.
  • Operators can also choose to treat each currency as a unique opt-in, meaning that if a player is opted in for EUR but then switches their account to a different currency, they will need to re-optin for the new currency at a new bet value. This is a configuration item and can be configured on a per-jackpot level.

• Enhanced Community Payout Strategies: Random winner selection

  • The Highest Contributor and Highest Contributor per Pot strategies can now be configured to randomly select winners from their list of potential winners. This allows operators to make use of the respective strategies as before, but also specify that winners should be randomly picked from a fixed size pool of the resulting list of candidates.
  • For example, the strategy could now be defined to say:
    • From the list of the top 500 highest contributors, randomly select 50 winners.

• Contribution constraints based on Base Wager

  • As of this release, it is possible to define the maximum allowed contribution to be relative to the base wager placed by players in the base game.
  • The constraint is defined as a percentage of the base wager.

  Example 1

  • If you would like to prevent jackpot contributions from being larger than base wager bets, you can define that the contribution-to-base-wager cap is 100%.
    • This means that if a player is staking €0.50, the player's contribution cannot be greater than €0.50 (regardless of their opt-in preference)

  Example 2

  • If you would like to limit jackpot contributions to being a maximum of 50% of the base wager, then the contribution-to-base-wager cap to be 50%
    • eg Player bets €0.50 into a game, therefore the largest contribution allowed would be €0.25.

ThrillGate

• Standard Wallet:
  • Player Session Token is now sent on the X-TT-PLAYER-TOKEN header for the following calls:
    • Balance
    • Transaction
    • Cancel Transaction

ThrillPots Gateway

• Latest Winners API v2
  • It is now possible to retrieve the latest winners for a jackpot by its source_id.
  • The latest winners v2 API is available at:
    • POST /v2/jackpots/latest_winners - latest winners for all pots
    • POST /v2/jackpots/pot_winners - latest winners by pot
    • Both endpoints accept the following payload:

    {
      "target": {
        "id": "source_id" | "instance_id",
        "type": "source" | "instance"
      },
      "operator_id": "operator_id", // eg "thrilltech"
      "player": {
        "brand_id": "brand_id", // eg "brand1"
        "id": "player_id", // optional
        "country": "country-code", // optional
        "segments": [list of segment identifiers] // can be empty
      },
      "limit": 15, // Default = 10, min = 1, max = 20,
      "winners_for_player_brand": `true` | `false` // if `true`, will limit wins to players from the specific brand
    }


BitBridge

• Added support for fetching configured crypto exchange rates from CoinMarketCap
  • Desired crypto exchange rates can be set as part of the exchange rate fetching job
• Telegram integration now supports media. Any ThrillTech system event can result in multiple messages, including images and video messages.
• Added message template interpolation helper functions. For details on usage read Template Interpolation

Changes/Improvements

ThrillPots

• To support the new Credit Retry logic in ThrillGate (described below), Credit transaction requests can now be flagged as being in a pending state. This allows the system to continue processing further transactions after a win while ThrillGate takes care of ensuring that the credit transactions kept getting retried in the background.

ThrillGate

• Debit Transaction cancellation requests now support carrying an optional gameround_id for convenient lookups in certain platforms.

  • This can be enabled on the Wallet configuration by adding the following key:
    • must_send_gameround_on_cancellation: true
    • If you need assistance with configuring this, please reach out to the ThrillTech Engineering team for guidance.
  • The new payload for Cancel Transaction is defined as:

  {
    "transaction_id": "TRANSACTION_ID_TO_CANCEL",
    "gameround_id": "GAMEROUND_ID_OF_TRANSACTION", // optional if configured
    "player_id": "PLAYER_ID_FOR_TRANSACTOIN", // optional
  }


• Credit Transaction changes

  • As of this release, all credit transactions will now be retried as usual and then put onto an on-going retry queue of Pending Transactions in the background. This change has been made to provide broader support of platforms that do not support cancellation of credit transactions.
  • The Pending Transactions are retried over a longer period of time until a high limit of retries has been reached, at which point, they are moved to being Withheld Transactions and need to be handled manually through the ThrillOffice.
  • This means that there will no longer be cancellations for any batch transactions or credit transactions.

  NOTE The batch cancellation API on the standard wallet will be deprecated in the future. It is recommended to keep it available (if implemented) for the meanwhile.

ThrillConnect

• If a jackpot is configured to be identified by a game_code, the Jackpot Instance returned by "Get Jackpot By Source" calls will now return the game_code identifier as part of the result data.

• When fetching Jackpot Instances by source, the instance data has now had the opt_in_per_currency flag included in its data.

ThrillOffice

• The winners reports now have a new Community Win column which shows the value of community payouts (if the jackpot tier supported a community payout).
• A completely revamped approach to calculating contributions, GGR and Seed Deficits for various reports, including the Reconciliation Report.
  • This approach will not only deliver accurate reporting for GGR, Hold and Seed Deficits going forward, but will also produce reconciliation reports for the lifetime of the system.
  • NOTE: When the service starts up it will start a long-running migration to recalculate and regenerate the data for the Reconciliation Report. During this time, we advise that you do not use the reconciliation report.
• Winners report now includes the players brand in both web and download view.
• Current user is now displayed in Profile Settings.
• Transactions & Winners Reports now allow filtering on debit and credit transaction ids.
• The Opt-in report now includes the player's opted in currency per record
• ThrillOffice service has moved to using the jemalloc memory allocator (like other services) to improve memory consumption monitoring.
• ThrillOffice now exposes the ability to modify the allowed brands of a Jackpot Instance via the BackOffice UI.
• User modal now allows creation of Service accounts via BackOffice UI.
• New set of ENV variables required for Redis on ThrillOffice. Full list here.
• Extra data projected on Reconciliation Report API on ThrillOffice. API docs here.

Bug Fixes

ThrillPots

• Fixed a bug where contributions were counted against constrained jackpot tiers even if the player/contribution did not qualify for the tier.

Thrill-ID

• Fixed a bug which resulted in login events being sent for every account. This has been restricted to sending login events only for User accounts.

ThrillOffice

• Fixed a bug where the password policy was not being validated on user create / edit modal.
• Fixed resource access for organizations with hierarchy

BitBridge

• Improved Exchange Rate API error handling to prevent quota exhaustions.

Final Images

ThrillPots Terminology

Before you start integrating, it would helpful to understand the terminology that is used in the context of ThrillPots.

System Architecture

The ThrillPots system has 3 primary integration points:

• Betting integration: Event-Processor >> ThrillPots Gateway
• Wallet integration: ThrillGate >> Wallet
• Frontend integration: Frontend << >> ThrillConnect

At a high level, the diagram below provides a visual representation of the ThrillPots System Architecture:

Integration points

ThrillPots has 3 primary integration points. This section will discuss each integration point and explain the purpose for each.

Betting integration

When it comes to Jackpot contributions, unlike normal games, player's do not make direct bets to jackpots. Rather, bets (contributions) are made on behalf of players via the operator's backend system.

Let's imagine a hypothetical casino where the operator has deployed a sitewide jackpot which is available to all players and is active across all casino content available on the site. The jackpot will receive a contribution bet each time a player makes a bet on any of the games on the site.

In order for these contributions to be made on behalf of the player, a simple event processor needs to be deployed that receives player game play / bet events and for each event makes a contribution request to the ThrillPots system.

In most platforms, this can be achieved by building a Kafka, RabbitMQ (or similar) event/stream processor which subscribes to the relevant topic/channel and makes REST API calls for each relevant event received. For platforms that do not have a message or event bus available, these events could be dispatched to the event processor via an alternative RPC mechanism such as REST, gRPC etc. This decision is all up to you, the integrating platform.

To learn more about this part of the integration, go to Event Stream Integration

Wallet Integration

When it comes to the wallet integration for ThrillPots, this integration is almost the same as any game provider integration. The wallet integration covers the following flows:

• Player token authentication
• Single Transactions (Debit & Credit)
• Batch Credit transaction (Multi-player payouts)
• Transaction cancellation

Integration is done against the ThrillGate service and can be performed in either direction (operator-to-provider or provider-to-operator).

To learn more about this part of the integration, go to Wallet Integration

Operator-to-Provider

If you decide to do an operator-to-provider integration, you will need to expose the endpoints required by the ThrillGate Standard Wallet Interface. All documentation can be found in the ThrillGate Standard Wallet Integration API documentation.

If you prefer for ThrillTech to integrate to your wallet API (provider-to-operator integration), you will need to provide the APIs and an integration environment for ThrillTech to develop the integration.

Frontend Integration

The ThrillConnect service is designed to support all frontend integrations. It exposes both a REST API (for end-user functionality like opt-in) as well as a WebSocket event stream for ad-hoc messaging and event broadcasts.

It is suggested to make use of the ThrillConnect JS API middleware layer which can easily be included in your site's code, freeing you up from the integration details and allowing you to focus on the visual and UX of the presentation layer.

To learn more about this part of the integration, go to Frontend Integration

Integrating ThrillPots Overview

The ThrillPots integration is best described as a 3-step process which is comprised of:

1. The event stream integration
2. The wallet integration
3. The frontend integration

We suggest that before you dig into any of the three sections above, that you take the time to read this overview as it contains important information and pre-requisites that are needed for a smooth integration process.

PRE-REQUISITES

The rest of this guide assumes the following:

1. You have the ThrillPots AIO Development container running and available. See this section for information on how to do this.
2. You have a way to communicate with the services in the AIO Container (for example curl or Postman or similar tool)

Authentication and Authorization

Prior to making any calls to the ThrillPots service APIs, you need to authenticate with the ThrillTech platform using credentials that have been provisioned for you.

The ThrillTech platform uses a centralised authentication technology called Thrill-ID which provides governance over both User and Service accounts.

For integration purposes, you will need to provision a Service account (if one has not been provisioned for you yet). To learn more about provisioning accounts, please refer to the Thrill-ID documentation.

For an example of a Service account that would be suitable for the event stream integration service, see here

Setting up the AIO Container

The ThrillPots AIO Container is comprised of all the services necessary to run the ThrillPots platform from a single docker container.

The services made available are:

• ThrillPots Gateway (integrate your event/stream processor here)
• ThrillPots Service (the heart of the jackpot platform)
• ThrillGate (used to integrate with or to wallet APIs)
• ThrillConnect (integrate your frontend with this service)
• BitBridge (used for external data source integrations like exchange rates providers)
• ThrillTech Backoffice
• MongoDB
• Redis

The AIO container was designed to enable developers to deploy the entire ThrillPots stack on their local development machines on in a development environment quickly and easily.

In-Service Swagger UI

Each service provides access to a Swagger-UI for its API. Apart from ThrillConnect, which is an edge service, Swagger-UI support is compiled in to all the services and accessible via the /swagger-ui path.

ThrillConnect Swagger UI

Since ThrillConnect is an edge service and generally made available to the public internet, swagger-ui needs to be enabled via an environment variable.

In order to enable the /swagger-ui endpoint for the ThrillConnect service, you must set the TCS_ENABLE_SWAGGER environment variable to true.

Setting up the AIO Container: Pre-requisites

This short section explains the pre-requisites you will need in order to be able to setup the AIO container.

Pre-requisites

You will need the following software on your development machine:

Mandatory:

• Docker (or alternatively Docker Desktop)
• Postman

Optional:

Some type of MongoDB UI. We recommend you use MongoDB Compass

GitHub Access

You will need to have a GitHub account that has been granted access to the ThrillTech GitHub Organisation. This step is usually done as part of the initial technical kick off. As part of this access, you are granted access to repositories and packages that are needed.

Once you have provided ThrillTech with your Github account and we have added you as a collaborator, you need to have a Github Personal Access Token (classic) with permissions to read packages.

Go to your account's Settings -> Developer Settings -> Personal Access Tokens -> Tokens (classic) and create one.

(Click your avatar circle on the top right part of Github, click "Settings" and then "Developer Settings" is located at the bottom on the right of the menu of your account)

The only right it needs to have is to read packages.

Log in to our package repo and give your github username and the token your just created as password when prompted

  docker login ghcr.io/thrilltech-io

Setting up the AIO Container: Initial Setup

Setting Up

Once you have provided ThrillTech with your Github account and we have added you as a collaborator, you need to have a Github Personal Access Token (classic) with permissions to read packages.

Go to your account's Settings -> Developer Settings -> Personal Access Tokens -> Tokens (classic)nd create one.

(Click your avatar circle on the top right part of Github, click "Settings" and then "Developer Settings" is located at the bottom on the right of the menu of your account)

The only right it needs to have is to read packages.

Log in to our package repo and give your github username and the token your just created as password when prompted:

docker login ghcr.io/thrilltech-io

Once you have successfully authenticated with the repository, you are ready to continue with the steps to getting the ThrillPots Dev Container running:

1. Clone the https://github.com/thrilltech-io/dev-containers repository
2. Go to the /thrillpots folder in the repository and execute: docker compose up -d

NOTE: If you are running on MacOS on Apple Silicon, you may need to enable x86_64/amd64 emulation. Do this by going to Docker Desktop's settings -> General and finding the option called "Use Rosetta for x86_64/amd64 emulation on Apple Silicon" and enable it.

This will download all the necessary packages and run them via Docker Compose. This process may take a few minutes to complete

3. Import the provided Postman collection (ThrillPots AIO Setup.postman_collection.json) which can be found in the repository into your Postman application
4. You will notice that it contains a number of endpoints, all numbered. The numbering indicates the sequence in which you must execute the calls.

5. Execute all the steps in order

Once complete, you will have a ThrillPots system running and configured in 'standalone mode'. This means that you can make contributions and interact with the system, but there will be no external wallet calls made for player authentication or transactions.

In this mode, valid player IDs are in a range: [player_00000 ... player_00999]

As part of the steps, you will also have created a Jackpot Template, and from this template you created a Jackpot instance. Jackpot Instances are the "running jackpots" that players contribute to. You also made a contribution directly to the jackpot.

You would also have created a Source and mapped the Jackpot Instance to the source and successfully made a contribution to the jackpot via the Source

The final step in the setup was the creation of an Internal mock wallet in ThrillGate. In a later section, where wallet integration is discussed, you will change this configuration to allow connectivity to your own wallet service, but for now, this mock wallet implementation is enough to get started with.

ThrillPots Wallet Configuration

IMPORTANT

Please note that when you change the wallet configuration for the ThrillPots service, you MUST restart the ThrillPots service for the changes to take effect.

Setting up the AIO Container: Admin Accounts

By default, the system is configured with an admin account called admin@thrilltech.io. This account has the ability to control all resources for the thrilltech oorganisation. You will have noticed that in all of the setup steps above, the owner_id or brand_id values were either thrilltech or thrilltech:brand1.

The ThrillPots system implements a "resource ownership" model which ensures that jackpot objects are not modifiable by unauthorized accounts.

Have a look at thrilltech:brand1. The first part before the : is the "organisation" or "operator id". The second part after the : is the "organisational unit" or "brand".

Creating a new ThrillPots admin account for a different organisation

If you want to create and manage ThrillPots resources for a different organisation/operator, you will first need to create a new orgnisation and admin account for that organisation. All of these actions are done through Thrill-ID.

The next steps assume that you are authenticated as admin@thrilltech.io (as per Step 0 in the setup steps)

1. Create a new organisation

We first need to register a new organisation in Thrill-ID. For the purposes of this example, lets create a new organisation called "new-operator" which has 2 casino brands: new-mega-casino and new-mega-sportsbook.

To do this, make the following call to Thrill-ID:

POST http://localhost:9000/admin/organisations

Header: Authorization Value: Bearer AUTH_TOKEN_FOR_ADMIN@THRILLTECH.IO

Body:

{
    "id": "new-operator",
    "units": [
        "new-mega-casino",
        "new-mega-sportsbook"
    ],
    "enabled": true,
}

You should receive a 200 OK.

Now we can create the new admin account for the new organisation

2. Create a new admin account

To create a new administrator account for the new-operator organisation we just created, we need to make another call to Thrill-ID, this time to create the actual account:

POST http://localhost:9000/admin/accounts

• Header: Authorization
• Value: Bearer AUTH_TOKEN_FOR_ADMIN@THRILLTECH.IO

Body:

{
    "account_type": "User",
    "username": "admin@new-operator.com",
    "password": "password",
    "org_unit": {
        "org_id": "new-operator"
    },
    "permissions": [
        {
            "system_id": "thrillpots",
            "permissions": [{
                "resource_id": "*",
                "permission": "Admin"
            }]
        }

    ]
}

You should receive a 200 OK along with a response body showing you the newly created account.

3. Test the new admin account

Go back to Step 0 in the setup instructions and change the username and password to the new accounts username and password and try to authenticate. If everything went right, you should receive a new token for the account and can now proceed with managing ThrillPots resources for the new-operator organisation.

Once you are authenticated with the admin account for the new-operator organisation, you will be able to create Jackpot templates, instances, sources etc for the new-operator organisation.

NOTE: In previous versions of the platform, you also needed to configure the operator and brand separately in ThrillPots and ThrillGate. This is no longer needed since all services synchronise themselves with the Organisational structures defined in Thrill-ID

Event Processor Integration

In this section, we will discuss the Event Processor integration component that is required in order to enable the ability to make contributions to jackpots.

In general, this integration component needs to be able to receive the events that will drive jackpot contributions on behalf of users/players.

In a standard ThrillPots-powered system, it is usually gameplay that causes jackpot contributions to be made on behalf of players, but you are not limited to just this single use case.

From a simplistic perspective, the general logic should look something like this:

Authenticate your integration service with ThrillPots Gateway
Subscribe to gameplay/bet events from your event stream
When an event is received from your event stream:
    - Read the properties of the event for game code, player ID and bet amount
    - Make a contribution call to ThrillPots using these (and other values)

From here, it is relatively easy to see how you could expand the use case to create a Deposit jackpot. Lets imagine that the deposit flow was identified by source DEPOSIT. Lets also assume that when a successful deposit has been made by a player, that an event is published by the operator's platform. For argument's sake, lets call this event DEPOSIT_SUCCESS.

If we wanted to create a deposit jackpot, the logic could look as follows:

Subscribe to DEPOSIT_SUCCESS event
When an event is received:
    - Read the properties of the event for the player ID and deposit amount
    - Make a contribution call to ThrillPots using the DEPOSIT source_id and other properties

Sequence Diagram for the Event Processor integration

Authenticating via ThrillPots Gateway

The ThrillPots Gateway service exposes a REST endpoint which your event stream process can authenticate itself with Thrill-ID. The endpoint is POST /authenticate/service and accepts a payload which contains the connecting service's username and password.

If authentication is successful, you will receive a response which contains token which must be used as a Bearer token in subsequent API requests to the ThrillPots Gateway service. Service tokens do not expire and therefore you do not need to be concerned with refreshing your token once it has been received.

See here for a Service account that you can provision for your Event Processor integration service.

Additional Information

If your event processor service is processing gameplay bet events, you should remember to filter out any and all events related to Jackpot Contributions as this could create loop of contributions on behalf of players

NOTE: For new integrations, we highly recommend that you integrate using the v2 Contribution API

Contributing to Jackpots

Now that you are processing events from your platform, you want to be able to make Contributions on behalf of players to the jackpot. The process of contributing is quite straight forward and does not require your service to be aware of player opt-in status. You will however need to decide which jackpot to contribute to and this can be done in one of two ways:

• Contribute by source
• Contribute direct to jackpot

Sources

A Source can be thought of as an operator-defined identifier for a user journey, a group of games, or even a single game. You can read more about Sources here,

Example: Sitewide Jackpot

If you wanted to create a site-wide jackpot for your casino vertical, you could create a Source named casino-sitewide, map a jackpot to the source and then send all contributions to that specific Source.

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "casino-sitewide",
    "gameround_id": "1",
    "currency": "EUR",
    "base_wager": 1
}

Example: Deposit Jackpot

If you wanted to create a deposit jackpot, you can create a source called deposit, map the relevant jackpot to the source and then send all deposit-based contributions ot that source

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "deposit",
    "gameround_id": "DEPOSIT_TX_ID",
    "currency": "EUR",
    "base_wager": 1
}

Example: Game Group Jackpot

If you wanted to create a jackpot for a specific set of games, for example, a jackpot for all egyptian themed games, you can create a source called egyptian-games and use that for contributions each time a player bets into a game that is egyption themed. This would naturally require your integration service to know which games are matched to which Game Group source.

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "egyptian-games",
    "gameround_id": "1",
    "currency": "EUR",
    "base_wager": 1
}

Example: Game Specific Jackpots

If you want to split your liquidity by game title, you can create sources that correspond to the game codes of games in your system. Each source would need a jackpot mapped to it, but once that is done, you are able to make contributions to the source based on the game code of the base game bet.

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "provider-game-code",
    "gameround_id": "1",
    "currency": "EUR",
    "base_wager": 1
}

Direct to Jackpot Contribution

An alternative to using sources is to make contributions directly to Jackpot Instances by their ID. For example, if you have created a Jackpot instance, you will have its ID available to you. This ID will not change over the lifetime of the jackpot. Making contributions directly to a Jackpot ID incurs less processing cost, but may also reduce the flexibility you may have in changing which jackpot players contribute to based on the content or user flows.

The only difference in the contribution payload is that the source_id is replaced with an instance_id field as seen below:

{
    "instance_id": "0a1cfeea-5b07-4f2b-b2f1-2e4cd2aa991d",
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "MT",
    "gameround_id": "1000",
    "base_wager": 2,
    "currency": "EUR"
}

Idempotent Contributions

If you require the ThrillPots system to prevent duplicate contributions being processed, then you can include the optional idempotency_key on your Contribution Request. The value of the idempotency_key must be a unique value generated by your system (for example a random UUID).

    {
      "token": "token_00001",
      "brand_id": "thrilltech:brand1",
      "player_id": "player_00001",
      "player_country": "UK",
      "source_id": "casino-sitewide",
      "gameround_id": "1",
      "currency": "EUR",
      "base_wager": 1,
      "idempotency_key": "unique_value_generated_by_your_system"
    }

Synchronous vs Asynchronous contribution

The default contribution mechanism is synchronous. However, depending on your system architecture (and system load), you may prefer to make use of asynchronous contribution mechanics. In order to make asynchronous contributions, you need to provide a webhook that the ThrillPots system can call once the result of a contribution has been determined.

In order to make a contribution asynchronously, you simple need to add a callback property to either of the contribution payloads above to specify the webhook to call and which results you are interested in receiving.

The structure of the callback property is as follows:

{
    "web_hook": "https://your.host/webhook",
    "win_result_only": false
}

The web_hook field indicates the fully qualified HTTP path to your webhook and the win_result_only property indicates whether the webhook should only receive win results or all contribution results.

Therefore, an asynchronous contribution for a sitewide casino jackpot would look like this:

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "casino-sitewide",
    "gameround_id": "1",
    "currency": "EUR",
    "base_wager": 1,
    "callback": {
        "web_hook": "https://your.host/webhook",
        "win_result_only": false
    }
}

When making an asynchronous contribution, the ThrillPots system will either return 200 OK with a JSON payload that contains a trace_id for the request when it has successfully accepted the contribution request for processing, or you will receive an error due to the request being malformed.

Any contribution request errors will be send to the webhook. The structure of the webhook payload is defined as follows:

Successful contribution result

{
    "type": "data",
    "contribution_amount": Number,
    "contribution_currency": String,
    "gameround_id": String,
    "instance_id": String,
    "metadata": null | Object,
    "tickets_awarded": null | Number,
    "timestamp": Number,
    "win_amount": Number,
    "win_pot_id": null | String,
    "win_withheld": Boolean
}

Error result

{
    "type": "error",
    "status_code": Number,
    "code": String,
    "message": String,
}

The data portion will either be a ContributionResult structure or an Error structure. You can find more information on these structures in the API documentation.

Examples of payloads sent to the web hook

Contribution Result

{
    "type": "data",
    "contribution_amount": 0.1,
    "contribution_currency": "EUR",
    "gameround_id": "cc83c1cc-6260-44fc-822b-d3c03acf2d89",
    "instance_id": "a49ff35f-6ecd-491f-b373-85e6caabacf1",
    "metadata": null,
    "tickets_awarded": null,
    "timestamp": 1715714218408,
    "win_amount": 0,
    "win_pot_id": null,
    "win_withheld": false
}

Error Result

{
    "type": "error",
    "status_code": 404,
    "code": "GAME_NOT_FOUND",
    "message": "sitewide-casino2",
}

Contribution Request Errors

A contribution request may result in a direct or a downstream error. A direct error is an error that is the result of the ThrillPots system return an error to the contribution request itself. A downstream error is an error that is propogated to the contribution request caller from a downstream system, such as ThrillGate or the operator wallet itself.

List of Direct Errors

For Direct Errors, you can expect:

Passing Metadata

If you need to pass contextual metadata from your event processor to your wallet, you can do so by adding a metadata field to the Contribution Request. This data will be passed through the system and attached to transaction requests to your wallet.

The metadata field can be any valid JSON value, for example:

Metadata containing an Object:

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "casino-sitewide",
    "gameround_id": "1",
    "currency": "EUR",
    "base_wager": 1,
    "metadata": {
        "value1": "some value",
        "value2": 1234
    }
}

Metadata containing a String:

{
    "token": "token_00001",
    "brand_id": "thrilltech:brand1",
    "player_id": "player_00001",
    "player_country": "UK",
    "source_id": "casino-sitewide",
    "gameround_id": "1",
    "currency": "EUR",
    "base_wager": 1,
    "metadata": "This is an arbitrary string value"
}

Event metadata

If you need to attach contextual metadata from your event processor to any subsequent JackpotWinEvent , you can do so by adding a event_metadata field to the Contribution Request. This data will be passed through the system and attached any resulting JackpotWinEvent under metadata.

The event_metadata field can be any valid JSON value, for example:

{
  	"instance_id": "ac2aad1d-16b6-4e9b-9e9a-d94f705a38f7",
  	"token": "token_00001",
  	"brand_id": "thrilltech:brand1",
  	"player_id": "player_00001",
  	"player_country": "MT",
  	"gameround_id": "1",
  	"base_wager": 1,
  	"currency": "EUR",
  	"event_metadata": {
			"some": "data"
  	}
}

Will result in a JackpotWinEvent with metadata.

  {
    "event_type": "JackpotWinEvent",
    "event_id": "8b4025fa-b4e7-4bd3-9e8c-3e95a1a2611d",
    "data": {
        "brand_id": "thrilltech:brand1",
        "player_id": "player_00001",
        "source_id": null,
        "instance_id": "ac2aad1d-16b6-4e9b-9e9a-d94f705a38f7",
        "jackpot_name": "QuickHit Instance",
        "jackpot_currency": "EUR",
        "timestamp": 1732010393528,
        "win_pot_id": "major",
        "win_amount": 100.05624999999992,
        "currency_multipliers": {
            "brand_id": "default",
            "base_currency": "EUR",
            "multipliers": {
                "AMD": 430.0904,
        },
        "win_withheld": false,
        "seed_deficit": 99.68125,
        "community_winners": null,
        "games_in_jackpot": [],
        "seed": 100.0,
        "metadata": {
            "some": "data"
        }
    }
  }

Contributing to Jackpots v2

The v2 Contribution API introduces a structured way to submit both source contributions and direct jackpot contributions within a single endpoint. It also enables advanced features such as linked jackpots and bet contexts.

• More information on linked jackpot instances can be found here

Key Enhancements Over V1

• Unified Contribution Model: Supports both source contributions and direct to instance contributions in the same request.
• Linked Jackpot Support: Contributions automatically propagate to all directly linked instances.
• Structured Data Format: Requests follow a more structured schema, ensuring consistency and extendability.
• Expanded Response Structure:
  • Synchronous contributions return an array of results for all contributions made.
  • Asynchronous contributions trigger multiple webhook events, one per contribution.

Propagation Rules

A contribution applies to the target instance (or instance behind source) as well as all instances directly linked to it . Only the links defined for the target instance are honored.

Failure Handling

• If the contribution to the main instance fails, contributions to linked instances will not be attempted.
• If a linked instance contribution fails (e.g., due to missing opt-in or validation failure), other linked instances will still be processed normally.

Opt-in Requirement

Opt-ins do not propagate automatically. If a linked instance requires explicit opt-in and the user has not opted in, the contribution fails for that instance.

API Request structure

{
    // Contribution target
    "target": {
        // Contribution target type, can be either "source" or "instance"
        "type": "source",
        // Contribution target identifier
        // eg. "sitewide-casino" in case of source contribution
        // eg "bdfa6295-d5a5-4c54-98bf-046355ce0252" in case of direct contribution to jackpot
        "id": "sitewide-casino"
    },
    // Jackpot instance owner identifier (operator id)
    "owner_id": "thrilltech",
    // Details of the contributing player
    "player": {
        // Player identifier
        "id": "player_00001",
        // Player authentication token
        "token": "token_00001",
        // Player country
        "country": "UK",
        // Player brand identifier
        "brand_id": "brand1",
        // Any segments that the player might be part of
        "segments": ["vip-1", "regular"],
    },
    // Base game wager
    "base_wager": {
        // Base wager currency
        "currency": "EUR",
        // Base wager value
        "value": 1
    },
    // The contribution source that caused the contribution to happen.
    // For example, if a player made a bet on a game, this would be the game's gameround ID.
    // If a player made a successful deposit, this would be the deposit's identifier.
    // This field is stored by ThrillPots and is used a back-reference to the original user action
    // that caused the contribution to happen.
    "source": {
        // Type of the contribution source. Defaults to `gameround` but can be any value you choose
        "type": "gameround",
        // Identifier of the contribution source
        "id": "gameround_id_1"
    },
    // Opaque data object that contains pass-through data for the caller.
    // The content of this property will be sent back on the JackpotContributionResponse to this request.
    "metadata": {},
    // Opaque data object that contains pass-through data for the caller.
    // The content of this property will be attached to any resulting events. ( win events at that stage )
    "event_metadata": {},
    // Optional contribution request parameters. Each field in this field is optional as well.
    "options": {
        // Optional identifier of the vertical from which the contribution request originated
        "vertical_id": "slots",
        // Optional boolean specifying whether linked jackpots should be honored
        "allow_linked_contributions": true,
        // If you would like ThrillPots to not process duplicate contributions, then specify a unique
        // `idempotency_key` here
        "idempotency_key": "random_uuid_value",
        // Specify the webhook to call and which results you are interested in receiving
        "callback": {
            "web_hook": "https://your.host/webhook",
            "win_result_only": false
        }
    },
}

Synchronous Contribution

If you do not specify a callback in the options.callback field, your contribution request will be processed synchronously. In this case, the response will be an array of JackpotContributionResponse structures. Normally, the array will only contain 1 result, however when the initial jackpot is linked to other jackpots, the array will contain more than one element, one for each jackpot that was linked.

• Returns results for the target jackpot instance and all of its linked instances.
• Result structure remains the same with the only difference it being an array.

[
    {
        "instance_id": "bdfa6295-d5a5-4c54-98bf-046355ce0252",
        "timestamp": 1739972162307,
        "gameround_id": "bb2a5277-1f00-47cf-b62c-9f639ddff146",
        "win_amount": 0.0,
        "win_pot_id": null,
        "tickets_awarded": null,
        "win_withheld": false,
        "contribution_currency": "EUR",
        "contribution_amount": 0.0775,
        "metadata": null
    },
    {
        "instance_id": "3c90cb1e-a594-437e-a695-e76acb0e6809",
        "timestamp": 1739972162394,
        "gameround_id": "7eab0af4-1477-44d9-88f0-a9b7763a6d30",
        "win_amount": 0.0,
        "win_pot_id": null,
        "tickets_awarded": null,
        "win_withheld": false,
        "contribution_currency": "EUR",
        "contribution_amount": 0.1,
        "metadata": null
    }
]

• If contribution to a linked instance fails (e.g., due to missing opt-in or regulatory restrictions), the response details which instances succeeded and which failed.

[
    {
        "instance_id": "bdfa6295-d5a5-4c54-98bf-046355ce0252",
        "timestamp": 1739972093142,
        "gameround_id": "0860e92b-6d75-45ab-a520-39ab511e18c1",
        "win_amount": 0.0,
        "win_pot_id": null,
        "tickets_awarded": null,
        "win_withheld": false,
        "contribution_currency": "EUR",
        "contribution_amount": 0.0775,
        "metadata": null
    },
    {
        "status_code": 400,
        "code": "CONTRIBUTION_REJECTED",
        "message": "PlayerNotOptedIn"
    }
]

Asynchronous Contributions & Webhooks

For asynchronous contributions, the API does not return immediate results. Instead, a webhook event is triggered for each contribution, providing its final outcome.

• win_result_only Option
  • If win_result_only is enabled, the webhook will only be triggered for contributions that result in a win.
  • If disabled (default behavior), a webhook is sent for every contribution, regardless of the outcome.
  • The webhook payload structure remains unchanged from v1 contributions.

{
    "type": "data",
    "instance_id": "bdfa6295-d5a5-4c54-98bf-046355ce0252",
    "timestamp": 1739972634263,
    "gameround_id": "0174c60b-f827-4e9c-8f66-8d5444732071",
    "win_amount": 0.0,
    "win_pot_id": null,
    "tickets_awarded": null,
    "win_withheld": false,
    "contribution_currency": "EUR",
    "contribution_amount": 0.0775,
    "metadata": null
}

OAS and Swagger documentation

For more details on using this functionality, refer to ThrillPots Service and ThrillPots Gateway API documentation

Contribution Sources

Contribution Sources are a concept in ThrillPots that allow operators create well-known identifiers for one or more Jackpot Instances. A contribution source is bound to an operator and brand ID.

Contribution Sources are valid targets/identifiers for jackpot contribution bets (as described in the Contributing to Jackpots section).

Why use sources instead of Jackpot Instance IDs

Sources provide a mechanism of indirection to Jackpot Instances. Since a Source will usually have a well-known and human-defined identifier, and can represent one or more Jackpot Instances at any point in time, they provide a very convenient way for Integrating services and frontends to work with Jackpot Instances.

For example, instead of hard coding a specific Jackpot Instance ID into your frontend or backend services, you can simply configure the more human-readable source_id and use the Source to determine at runtime which Jackpot Instance ID is being used. This is especially useful when Jackpot models are changed over time since your integrated product will not need to be modified unless there is a fundamental structural change to the jackpot itself (which is rarely the case).

Example

An early, but very common use-case Contribution Source can be seen below, where a Source has been created for Operator thrilltech, Brand brand1 and is the source for the "site wide casino jackpot".

In this case, the contribution flow would look like this:

┌──────────────────────────────┐
│Contribution to Source Request│   (POST https://thrillpots_gateway_host/jackpots/contribute/source)
└──────────────┬───────────────┘
               │
               │
               │
               ▼
           ┌────────┐
           │ Source │
           └────────┘
               │
               │
               │
               ▼
      ┌──────────────────┐
      │ Jackpot Instance │
      └──────────────────┘

Under the covers (in the data), this Contribution Source will most probably look something like this:

{
  "owner_id": "thrilltech:brand1",
  "source_name": "Casino Sitewide Source",
  "source_id": "sitewide-casino",
  "jackpots": [
    {
      "priority": {
        "$numberLong": "0"
      },
      "owner_id": "thrilltech:brand1",
      "instance_id": "12231b6a-a774-4a93-8f16-f8af9aee2076"
    }
  ]
}

The jackpots array in this Contribution contains a single Jackpot Instance ID because in this case, there is only one Jackpot Instance required. We will discuss use cases where having multiple Jackpot Instances in this array can be useful.

Creating a Contribution Source

To create a Contribution Source, we follow a 2 step process:

1. Create the new source
2. Assign the desired Jackpot Instance to the Source

1. Create the new source

To create a source, we use the POST /config/sources endpoint on ThrillPots Service (link to API).

An example to create a "Site-wide Jackpot" source for the thrilltech:brand1 operator-casino would look like this:

POST http://<thrillpots-service-host>/config/sources

Payload

[
    {
        "owner_id": "thrilltech:brand1",
        "source_name": "Casino Sitewide Source",
        "source_id": "sitewide-casino"
    }
]

FYI: If you have downloaded the ThrillPots AIO Setup Postman collection, an example of this step will be in the Basic Setup > Create a Source endpoint.

2. Assign the desired Jackpot Instance to the Source

Once you have created a source, you can now assign a pre-existing Jackpot Instance to the source. This can be done using the POST /config/sources/assignjackpot endpoint on the ThrillPots Service (link to API).

POST http://<thrillpots-service-host>/config/sources/assignjackpot

Payload

{
    "owner_id": "thrilltech:brand1",
    "source_id": ["sitewide-casino"],
    "instance_id": "{{instance_id}}"
}

Retrieving the Jackpot Instance from a source

To retrieve that relevant Jackpot Instance for a specific source, you can use the following methods:

ThrillPots Gateway

GET /jackpots/instances/source/:source_id/brand/:brand_id?player_id=:player_id

The parameters in the url above are:

ThrillConnect (used by the Frontend)

GET /v1/thrillpots/instances/source/:source_id/brand/:brand_id?player_id=:player_id

The parameters in the url above are the same as for ThrillPots Gateway:

Retrieving all sources in the System

To retrieve a list of sources for a specific operator brand, you can use one of the following methods:

ThrillPots Gateway

GET /sources?owner_id=:brand_id

The brand_id parameter in the URL is once again comprised of the operator_id:brand_id pair which identifies a specific brand. If any sources have been configured for the operator_id:brand_id specified, they will be returned in a response which contains a list of Source JSON objects and will look similar to this example:

[
    {
        "owner_id": "thrilltech:brand1",
        "source_name": "Casino Sitewide Source",
        "source_id": "sitewide-casino",
        "jackpots": [
            {
                "priority": 0,
                "owner_id": "thrilltech:brand1",
                "instance_id": "12231b6a-a774-4a93-8f16-f8af9aee2076"
            }
        ]
    }
]

ThrillConnect (used by the Frontend)

GET /v1/thrillpots/sources?owner_id=:brand_id

As in the ThrillPots Gateway example above, the brand_id parameter in the URL is once again comprised of the operator_id:brand_id pair which identifies a specific brand. The response payload will look exactly the same as the response from the ThrillPots Gateway service above.

ThrillPots Events

ThrillPots publishes a number of events which your integration service can subscribe to. There are a number of reasons you may want to consume these events, for example:

• Synthesizing related Kafka/RabbitMQ events
• Storing the events for BI / Analysis purposes

The following events are currently published by ThrillPots Gateway:

• JackpotUpdateEvent - contains the latest jackpot values for the specified Jackpot Instance
• Reference

{
    "event_type": "JackpotUpdateEvent",
    "event_id": "d6f05820-1da2-4152-bcba-6c0186f6cd77"
    "data": {
        "id": "jackpot instance ID",
        "status": String,
        "jackpot_type": "Jackpot" | "Raffle",
        "currency": String,
        "allowed_brands": [String],
        "allowed_sources": [String],
        "pots": [
            {
                "id": String,
                "is_progressive": Boolean,
                "current_value": Number
            }
        ],
        "timestamp_start": Number | null,
        "timestamp_end": Number | null
        "last_updated": Number
    }
}

• JackpotWinEvent - contains the details of a jackpot win
• Reference

{
    "event_type": "JackpotWinEvent",
    "event_id": "3fe809f4-c94f-4950-9b86-5f2d0b8f604f"
    "data": {
        "brand_id": String,
        "player_id": String,
        "source_id": String | null,
        "instance_id": String,
        "jackpot_name": String,
        "timestamp": Number,
        "win_pot_id": String,
        "win_amount": Number,
        "currency_multipliers": {
            "brand_id": String,
            "base_currency": String,
            "multipliers": {
                "EUR": Number,
                "GBP": Number,
                "ZAR": Number,
                ...
                "NZD": Number,
                "SEK": Number
            }
        }
        "games_in_jackpot": [String],
        "seed": Number,
        "win_withheld": Boolean,
        "seed_deficit": Number,
        "community_winners": null | [{
            "player_id": String,
            "brand_id": String,
            "currency": String,
            "win_amount": Number
        }],
		"metadata": null | Object,
    }
}

• RaffleWinEvent - contains the details of a Raffle Win
• Reference

{
    "brand_id": String,
    "instance_id": String,
    "jackpot_name": String,
    "jackpot_currency": String,
    "currency_multipliers": {
        "brand_id": String,
        "base_currency": String,
        "multipliers": {
            "EUR": Number,
            "GBP": Number,
            "ZAR": Number,
            ...
            "NZD": Number,
            "SEK": Number
        }
    }
    "timestamp": Number,
    "winners": [
        {
            "player_id": String,
            "brand_id": String,
            "currency": String,
            "win_amount": Number
        }
    ],
    "win_withheld": bool
}

• OptInEvent - contains the details of a player opt-in or opt-out into a Jackpot Instance Reference

{
    "event_type": "OptInEvent",
    "event_id": "27045bf8-78d2-4f99-97f1-e7d2e3aa434d"
    "data": {
        "instance_id": String,
        "player_id": String,
        "player_brand_id": String,
        "preferred_contribution_value": Number,
        "preferred_contribution_currency": String.
        "opted_in": Boolean,
        "requested_optin": Boolean,
        "contribution_preferences: {
            "EUR": Number | null,
            "USD": Number | null
            ..
        },
        "last_updated": Integer
    }
}

• CommunityPayoutErrorEvent - sent in case of an error that is encountered when processing community payouts Reference

{
    "event_type": "CommunityPayoutErrorEvent",
    "event_id": "c034a751-cf91-4722-bc89-a2f8af472805"
    "data": {
        "instance_id": String,
        "gameround_id": String,
        "tx_credit_id": String,
        "failed_payouts": [
            {
                "player_id": String,
                "brand_id": String,
                "currency": String,
                "win_amount": Number
            }
        ]
    }
}

• RafflePayoutErrorEvent - sent in case of an error that is encountered when processing raffle payouts Reference

{
    "event_type": "RafflePayoutErrorEvent",
    "event_id": "e981296b-199f-4454-b4ec-b3f36910c2cc"
    "data": {
        "instance_id": String,
        "failed_payouts": [
            {
                "player_id": String,
                "brand_id": String,
                "currency": String,
                "win_amount": Number
            }
        ]
    }
}

The ThrillPots events are published via the WebSocket endpoint /events.

Authenticating the Websocket connection to receive events

Once you have established a WebSocket connection from your event processor service to ThrillPots Gateway, you will need to send an Authenticate message which contains your Thrill-ID JWT token to authenticate your service to receive events.

{
    "action": {
        "Authenticate": {
            "auth_token": "{{thrill-id-jwt}}"
        }
    }
}

If the authentication fails, the connection will be closed. Once you have authenticated, you should start receiving the events from the ThrillPots service.

Wallet Integration

Introduction

When integrating ThrillPots to your wallet, you will need to implement what is known as the "Standard Wallet API". This API has been defined by ThrillTech and is what our ThrillGate services uses to communicate with your backend to process:

• Player Authentication
• Transactions
• Transaction cancellations
• Batch transactions# Wallet Integration

ThrillPots Wallet Configuration

IMPORTANT

Please note that when you change the wallet configuration for the ThrillPots service, you MUST restart the ThrillPots service for the changes to take effect. In this section, we will discuss how ThrillPots performs player authentication and jackpot contribution transactions.

When running in a non-development environment (such as staging or production), ThrillPots uses the ThrillGate Service as an integration layer to an operator's wallet API.

NOTE:

ThrillPots also supports an internal, in-memory wallet for development or isolated testing purposes. This wallet is enabled by default in the AIO development container

Types of Wallet Integrations

There are two types of wallet integrations that can be developed:

• Provider-to-Operator integration
• Operator-to-Provider integration (Standard Wallet Integration)

This section is been written for operators that have chosen to do an Operator-to-Provider integration. For a Provider-to-Operator integration, ThrillTech are responsible for implementing the integration to your wallet API and that topic is out of scope for this book.

• Batch transaction cancellations

All communications from ThrillGate are conducted over secure SSL REST calls to your system.

As part of all calls to your system, ThrillGate sends an HMAC in the X-Server-Authorization header which is calculated from the body of the request only. You can use this HMAC value to verify that the request is coming from the expected ThrillGate server.

NOTE: During integration you will receive the secret key that you can use to verify the HMAC value with.

Enabling Wallet Integration Mode in the AIO Container

In order to configure the container to support external wallet integration mode, some additional API calls need to be made.

In the provided Postman collection, you will find a folder called Wallet Integration Mode. In this folder you will find additional API calls that you need to make in order to configure the container to run in this mode.

The first API call (1. Create Wallet Configuration) makes a call to the ThrillGate service and sets up the "Standard Wallet API" connnector.

It is very important that you do NOT change the details in Step 2a or 2b as these are specific for the AIO container.

PLEASE NOTE:

When building your wallet integration, the ThrillGate service will attempt to connect to your wallet service on your localhost:8201. This is configured via Docker networking as:

Host: "host.docker.internal"
Port: 8201

You can change the port, but we would recommend not changing the host unless you are absolutely sure you know what you are doing.

Once you have executed step 1, you can Enable or Disable the external wallet mode using steps 2a or 2b respectively.

Once you have completed the configuration, you will need to restart the ThrillPots service in the AIO container.

IMPORTANT

Each time you change the wallet configuration of ThrillPots, you must restart the ThrillPots Service for the configuration changes to take effect

Standard Wallet Integration

What is the Standard Wallet?

The Standard Wallet is a REST API definition (designed by ThrillTech) which an operator needs to implement support for. The ThrillGate service uses the Standard Wallet API (as a client) to communicate with the operator's wallet to perform the following actions:

• Player token authentication
• Debit / Credit transactions (single)
• Credit transaction batches
• Transaction cancellation

Standard Wallet Sequence flows

Below is a sequence diagram of the expected data flow between ThrillGate and the operator wallet API:

Configuring a Standard Wallet Integration in ThrillGate

To configure the ThrillGate Service to connect to your Standard Wallet API compliant service, you need to configure a Wallet resource.

To configure a wallet:

• URL: POST http://localhost:8100/admin/wallets
• Headers:
  • Authorization: Thrill ID Bearer token
• Body:

{
    "id": "Brand1Wallet",
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "wallet_type": "StandardWallet",
    "connection_details": {
        "protocol": "http",
        "host": "host.docker.internal",
        "port": 8201
    },
    "endpoints": {
        "auth": {
            "POST": "/wallet/authenticate"
        },
        "balance": {
            "GET": "/wallet/balance"
        },
        "cancel_bet": {
            "DELETE": "/wallet/cancel"
        },
        "transaction": {
            "POST": "/wallet/transaction"
        },
        "transaction_batch": {
            "POST": "/wallet/transaction/batch"
        },
        "cancel_batch": {
            "DELETE": "/wallet/transaction/batch"
        }
    },
    "config": {
        "secret_key": "12345",
        "accept_zero_value_credits": true,
        "must_close_gamerounds": false
    }
}

NOTE: If you need to change the definition of the endpoints, feel free to do so. Make sure that you use the correct HTTP verb and specify the endpoints as needed by your system.

Next Steps

Once you have understood the purpose of each of the Standard Wallet API calls as well as the flows around transaction and transaction batch handling, you are ready to start integrating the Standard Wallet API into your system. Refer to the provided API reference documentation and OpenAPI specs that have been provided to you.

Standard Wallet API: Player Authentication

In order for the ThrillPots system to take wagers (debit the player's wallet) and payout winnings (credit the player's wallet), it needs to be able to authenticate the player with the operator wallet.

This is done by calling the Standard Wallet's auth endpoint, passing in the provided player token and game code to the operator wallet and receiving the required player details (including the token that should be used for transaction calls)

This is done by ThrillGate calling the endpoint defined in endpoints.auth of the Standard Wallet's configuration. An example call's payload would look as follows:

{
    "operator_id": "your_operator_id",
    "brand_id": "your_brand_id",
    "player_token": "token_00001",
    "game_code": "AwesomeJackpotGameCode",
    "currency": "EUR"
}

If successful, the operator wallet must respond with a valid session token and player details that can be used for future transaction calls for this player.

Response example:

{
    "id": "player_00001",
    "token": "session_token_00001",
    "currency": "EUR",
    "balance": 100001927.79,
    "operator_id": "thrilltech",
    "brand_id": "brand1",
    "nickname": null,
    "gender": "?",
    "country": "MT",
    "jurisdiction": null,
    "segments": null
}

Standard Wallet API: Transactions

Transactions

Once the player token has been authenticated, the ThrillPots system can start making transaction calls through ThrillGate.

In standard operation, the first transaction call will be a Debit transaction request to fetch funds from a player's wallet for the Jackpot Contribution bet. This call is also intended to open the game round for the jackpot contribution.

If successful, ThrillPots will process the jackpot contribution and determine if a win occurred.

The next transaction call that will be made will be a Credit transaction request. This call is intended to pay any winnings to the player account and to close the game round that was opened with the Debit transaction.

Transaction Errors

If an error occurs while executing transactions with the operator wallet, ThrillGate and ThrillPots cooperate to ensure that the transaction error is handled correctly.

When an error occurs, ThrillGate will attempt to retry the transaction request a set number of times. If all retries fail, the error will be sent to ThrillPots for further handling.

If there are certain wallet errors that you do not wish ThrillGate to perform its retry logic, you can configure that as part of the wallet configuration in ThrillGate.

Please see the ThrillGate section on Configuring Wallet Error Behaviour for more information on how to configure ThrillGate's wallet error handling.

Once an error has been sent back to ThrillPots, ThrillPots will decide whether a transaction needs to be cancelled or not. Transaction cancellation is discussed next.

Transaction Failure Handling

In certain situations (as described in the errors section above), it is necessary for transactions to be cancelled or put into a Pending state.

NOTE: ThrillPots will only cancel Debit transaction

Debit transactions

In the case of a failed Debit transaction, ThrillPots will send a cancellation request for the Debit transaction using the Debit transaction ID.

Credit transactions

A credit transaction will never be cancelled. If it fails after a certain number of retries, ThrillGate will make the transaction as pending and will continue to retry sending the transaction to the operator's wallet. This will continue for a fairly long period of time (configurable). If the transaction fails after all the configured attempts, it will be marked as Withheld and will require manual reconciliation by the operator via the Backoffice.

Transaction Batches (Credit only)

ThrillPots uses Transaction Batch requests to communicate payouts to multiple players.

These types of payouts are only relevant to jackpots that are either:

• Multi-player payouts (community payouts)
• Raffle jackpot payouts

In both situations, since multiple players are considered winners from a single jackpot win, ThrillPots needs a way to credit wins to multiple players. Since these players are not guaranteed to be online at the time of the win, ThrillPots will not have access to any session token information for all the winners.

Transaction Batches are used in these special situations to communicate a set of credit operations that need to be applied to multiple players accounts.

Although unlikely, it is possible that not all the specified player accounts will be able to be credited with the winnings. Such a situation may arise if, for example, the player account has been banned/blocked or is self-excluded at the time of the jackpot win.

In these cases, the operator wallet is expected to flag the player account as an exception and continue to pay the remaining players in the transaction batch.

It is not considered an error if a player account in a transaction batch cannot be paid. The operator wallet should simply indicate this exception in the response and attempt to pay all other players.

Transaction Batch Failures

Since Transaction Batches are only applicable to Credit transactions, the same retry -> pending failure flow as described above is applied.

There is another limited set of errors that require Transaction Batches to be retried as Pending transactions.

These errors are typically (but not limited to) errors such as network errors and timeouts. When an error occurs that leads ThrillGate to not be sure whether the operator's wallet has handled the transaction batch request, the request will first be retried, but after failing a specific number of times, the transaction batch will be marked as pending and continue to be retried in the background.

Frontend Integration

The final piece of the ThrillPots integration puzzle is the frontend integration. The frontend is responsible for displaying the Jackpot Ticker widget, showing players what the value of the various pots within the Jackpot are, the opt-in widget, allowing players to opt-in or opt-out of participation in the jackpot and so on.

The ThrillConnect Service has been specifically developed to provide an API and event stream over WebSockets to frontend clients to be able to interact with the ThrillPots system.

Integration Options

When integrating the frontend, there are two options that you can take:

1. Use the existing libraries/components that ThrillTech has built to ease the effort of frontend integration:
   • ThrillConnect JS Client
   • Animation Driver
2. Develop your own integration with ThrillConnect and your own animation layer for the win animations

The sections below will detail the low level integration approach to help you understand how things work. You can then decide which of the options mentioned above you wish to take.

Sequence Diagram for the frontend to ThrillConnect integration

Integration Flow in detail

Fetching a Jackpot's details

One of the first things your frontend will most likely need to do is to retrieve jackpot details for your jackpot widget to display.

If you have followed the section on settings up the AIO container, you would have created a Source called sitewide-casino.

If you haven't gone through the process of setting up a source, we suggest that you review and understand sources and how they are used before continuing

To retrieve the jackpot for the sitewide-casino source, you will need to call:

GET /v1/thrillpots/instances/source/:source_id/brand/:brand_id?player_id=:player_id

replacing the :source_id and :brand_id values with the appropriate values that have been configured. If you used the default values from the Postman collection, you can use sitewide-casino for the source_id and thrilltech:brand1 for the brand_id.

If the player is already logged in, you can also pass the ID of the player via the query parameter player_id. Doing so will ensure that the player's opt-in status is returned in the jackpot instance information.

Establishing a WebSocket connection

In order to receive ThrillPots events and be able to opt players in or out of the jackpot, you will need to establish a websocket connection.

Once a player is logged into an operator's site, you can establish a WebSocket connection with ThrillConnect, passing in the player's session token.

NOTE

WebSocket connections are protected and can only be established by logged in players to prevent unauthorized and potentially dangerous abuse by attackers. Requiring a player a valid player session token in order to establish a WebSocket connection is a security-driven decision

To establish a WebSocket connection with ThrillConnect, open a WebSocket to:

/v1/events/{operator_id}/{brand_id}?token=PLAYER_TOKEN&currency=PLAYER_CURRENCY

ThrillConnect will authenticate the token (the Player session token) from the query parameters with the operator's platform via ThrillGate. If the token is valid, the websocket connection will be established. If the token is invalid, the connection will receive a 403 FORBIDDEN error.

Subscribing to ThrillPots events

Once you have successfully established a WebSocket connection, you can now subscribe to ThrillPots events. This is done by sending a subscription request via the WebSocket to ThrillConnect. See below for the SubscribeRequest message that should be sent to subscribe to all ThrillPots events:

{
    "SubscribeRequest": {
        "events": [{
            "source": "thrillpots",
            "event_type": "*"
        }]
    }
}

If you would like to subscribe to only certain events, you can do so by explicitly specifying the events by source one-by-one.

ThrillPots currently publishes the folliowing event types:

• JackpotUpdateEvent
• WinEvent
• RaffleWinEvent
• OptInEvent

For more information about the structure of each of these events, see ThrillPots Event Structures

Player Opt-in / Opt-out

To opt a player in or out of a jackpot, you must send a PlayerOptInRequest message via the WebSocket connection.

Below are a few examples of opting a player in and out of a jackpot instance (please note, you will need to have the jackpot instance ID):

Opting in

{
    "PlayerOptInRequest": {
        "instance_id": "8dcc9f5a-f1c5-466f-83e9-928277d8bfb7",
        "player_country": "MT",
        "opt_in": true
    }
}

Opting in with a preferred contribution value of 0.20

{
    "PlayerOptInRequest": {
        "instance_id": "8dcc9f5a-f1c5-466f-83e9-928277d8bfb7",
        "player_country": "MT",
        "opt_in": true,
        "contribution_value": 0.2
    }
}

Opting out of a Jackpot

{
    "PlayerOptInRequest": {
        "instance_id": "8dcc9f5a-f1c5-466f-83e9-928277d8bfb7",
        "player_country": "MT",
        "opt_in": false
    }
}

Opting in with a preferred contribution value and preferred contribution currency

{
    "PlayerOptInRequest": {
        "instance_id": "8dcc9f5a-f1c5-466f-83e9-928277d8bfb7",
        "player_country": "MT",
        "opt_in": true,
        "contribution_value": 0.2
        "contribution_currency": "USD"
    }
}

Opting out from a preferred contribution currency

{
    "PlayerOptInRequest": {
        "instance_id": "8dcc9f5a-f1c5-466f-83e9-928277d8bfb7",
        "player_country": "MT",
        "opt_in": false,
        "contribution_currency": "USD"
    }
}

Retrieving Exchange Rates

You may need to convert the values of a jackpot instance from the Jackpot currency to a player's currency. To help facilitate this, ThrillConnect exposes a currency endpoint which allows you to fetch the exchange rates used by ThrillPots.

To retrieve the 202408-1 exchange rates, you can call:

GET /v1/currencies

Retrieving a player's raffle ticket count

If player's are contributing to a Raffle jackpot, you may want to show the player how many tickets they have earned so far in the raffle. You can retrieve the player's current ticket count by requesting it via the WebSocket connection:

To retrieve a player's ticket count, send a PlayerRaffleTicketsRequest message:

{
    "player_id": String,
    "instance_id": String,
    "brand_id": String
}

The instance_id is the instance ID of the Raffle jackpot, and the brand_id is in the format operator_id:brand_id.

If the request can be serviced, you should received a PlayerRaffleTicketsResponse message back:

{
    "msg_type": "Message",
    "source": "thrillpots",
    "msg_name": "PlayerRaffleTicketResponse",
    "operator_id": "OPERATOR_ID",
    "brand_id": "BRAND_ID",
    "player_id": "PLAYER_ID",
    "data": {
        "ticket_count": 4
    },
    "timestamp": 1711452762485
}

If there was an error processing the request, you will receive an Error message in response which will contain the message name that errored, as well as any relevant error details. For example:

{
    "msg_type": "Error",
    "source": "thrillpots",
    "msg_name": "PlayerRaffleTicketRequest",
    "operator_id": "OPERATOR_ID",
    "brand_id": "BRAND_ID",
    "player_id": "PLAYER_ID",
    "data": {
        "status_code": 404,
        "code": "",
        "message": "Error 404 Not Found from http://localhost:8084/instances/raffle/e0dee1ae-6231-458a-ad6d-4dc0c941e5c3/tickets/player_00001/brand/thrilltech:brand1"
    },
    "timestamp": 1711452757807
}

In this case, the request Jackpot instance ID could not be found.

ThrillConnect JS Client

ThrillConnect Client is the glue that connects your Portal and ThrillTech systems to provide seamless experience for your players. It is designed with minimialistic, yet powerful API, that can be easily consumed and covers all the narrow and tricky edgecases of the frontend integration. It's purpose is to make your frontend development trivial and expose the full API surface with minimum effort.

On this page you can find all the relevant details on how to use the Client, as well as examples and use cases.

Client version will be aligned with service version and just like that you'll be subscribed to all the latest and greatest features of our platform.

Source

Source code is avaiable for review & fork for all ThrilTech customers. You can find the client at https://github.com/thrilltech-io/connect-client.

Initialization

Client constructor needs the host address and BrandContext. Player context can optionally be passed on initialization or later on via authenticate method. Additionally one can specify dev options, like the use of unsecure http/ws and client internal logs for dev convenience.
All the events of interest must be passed on to the constructor in the events array so that client can subscribe to relevant systems on the WS channel.

Player context

Player context type provides all necessary player details for establishing the WSS connection and interacting with the Jackpots from player perspective.

type PlayerContext = {
    id: string,
    token: string,
    currency: string,
    country: string,
}

Initialization without player context

Prior to having a valid player session and auth token, one can initialize the client without PlayerContext. In this limited mode the WS events will not be available and only public REST endpoints can be used to make requests. ( see API section for what is available )

import { ThrillConnect, ConnectEvents } from "./thrillconnect.js"

const client = new ThrillConnect({
    host: "localhost:11000",
    brand: {
        operator_id: "thrilltech",
        brand_id: "brand1",
    },
    dev: {
        secure: false
    },
    events: [
        ConnectEvents.JackpotUpdateEvent,
        ConnectEvents.RaffleWinEvent,
        ConnectEvents.JackpotWinEvent,
        ConnectEvents.OptInEvent,
    ]
})

Later on, once we have player details, we can authenticate and subscribe to full functionality of the client.

client.authenticate({
    id: "player_id_token_00001",
    token: "token_00001",
    country: "USA",
    currency: "USD",
})

Initialization with player context

Alternatively, if player details are known from the start, those can be passed directly to the client constructor.

const client = new ThrillConnect({
    host: "localhost:11000",
    player: {
        id: "player_00001",
        token: "token_00001",
        country: "USA",
        currency: "USD",
    },
    brand: {
        operator_id: "thrilltech",
        brand_id: "brand1",
    },
    dev: {
        secure: false
    },
    events: [
        ConnectEvents.JackpotUpdateEvent,
        ConnectEvents.RaffleWinEvent,
        ConnectEvents.JackpotWinEvent,
        ConnectEvents.OptInEvent,
    ]
})

API

Following is a list of all the available methods on connect client.

Adding an event listener

	client.on(ConnectEvent, handler)

Adding an once off event listener

	client.once(ConnectEvent, handler)

Removing an event listener

	client.off(ConnectEvent, handler)

Passing player context

	client.authenticate(PlayerContext)

Fetching the currency multipliers

	const multipliers = await client.request().getCurrencies()

Fetching the list of defined sources for the provided BrandContext

	const sources = await client.request().getSources()

Getting the Jackpot instance that maps to a source

	const sourceId = "sitewide-jackpot"
	const instance = await client.request().getJackpotForSource(sourceId)

Getting the player OptIn status for a source

Note: PlayerContext is required for this request.

	const sourceId = "sitewide-jackpot"
	const status = await client.request().getOptInStatusForSource(sourceId)

Opting in/out from a source

Note: PlayerContext is required for this request. This request uses the authenticated WS channel. When jackpot allows for variable contribution, preferred contribution value can be passed as 3 parameter.

	const sourceId = "sitewide-jackpot"
	const optIn = true
	const preferredContributionValue = undefined

	client.request().optIntoSource(sourceId, optIn, preferredContributionValue)

Opting in/out from an instance

Note: PlayerContext is required for this request. This request uses the authenticated WS channel. When jackpot allows for variable contribution, preferred contribution value can be passed as 3 parameter.

	const instanceId = "dd7243ea-9992-47ae-a2a6-531b3f0e2197"
	const optIn = true
	const preferredContributionValue = undefined

	client.request().optIntoInstance(instanceId, optIn, preferredContributionValue)

Events

Client receives events via the WS connection. In order to receive an event, it needs to explicitly be listed in the list of events in the Client constructor. All the available events are listed in ConnectEvents.

import { ConnectEvents } from "./thrillconnect.js"

function updateTickers(e:JackpotUpdateEvent) {
    console.log(e.status)
}
// subscribe to Jackpot updates
client.on(ConnectEvents.JackpotUpdateEvent, updateTickers)
// unsubscribe from Jackpot updates
client.off(ConnectEvents.JackpotUpdateEvent, updateTickers)

withSource helper

Jackpot source serves as alias for the instance, however properly handling the events, as well as parts of the API requires frontend to keep a reference to the instance identifier. To address this inconvinience, connect-client now supports internal caching of instance ID. Source bound client internally filters events and only fires those matching the jackpot instance id corresponding to the source.

const sourceBoundClient = await client.withSource("put-source-id-here")

await sourceBoundClient?.getJackpot()
await sourceBoundClient?.getTickers()
await sourceBoundClient?.getOptInStatus()
await sourceBoundClient?.optIn(true, 50)

sourceBoundClient?.on(ConnectEvents.JackpotUpdateEvent, handleUpdate)

Animation Driver

ThrillTech supplies a default set of Jackpot win animations to enrich the player experience during a Jackpot win. The animations driver is a JS library that takes care of win animations loading and playback. Animations are easily customizable and the driver allows for flexible cusomizations of the playback.

Source

Source code is avaiable for review & fork for all ThrilTech customers. You can find the driver at https://github.com/thrilltech-io/animations-driver.

Overview

The JS driver exposes two functions:

• preload(config, tier, muted) - loads the required assets per pased configuration object. When muted, sounds will not be loaded.
• run(config, tier, amount, muted) - starts the animation sequence defined in the configuration. Run will do load if assets are not already loaded.

The preload function is intended to provide separation of the loading phase, so that in case of unreasonably slow connection, stale loading can be detected and acted upon (for example using a fallback alert / win message if assets load didnt complete in a certain period).

Mute state cannot be controlled after the animation is run. The current sound preference should be passed to the run ( and optionally preload ) and based on that the defined in configuration sfx are either loaded or not.

Usage

import { preload, run } from "./main.js"

const config = "/configs/example.json"
const tier = "super"
const amount = 10000
const muted = false

preload(config, tier, muted).then(()=>{
    run(config, tier, amount, muted)
})

Configuration

See example configurations in ./public/configs in the driver repository.

Following is a full possible configuration with all settings commented inline.

{
    "dom": {
        // optional - skip "top" section if no header is required
        "top": {
            // id of top container
            "id": "top-container",
            // messages to display during presentation phase
            "message": {
                "id":"top-message",
                // message during wheel spin
                "wheel": "Stop the wheel and win BIG! BIG!",
                // message during tickup
                "tickup": "Congratulations!"
            }
        },
        // optional - skip "bottom" section if no footer is required
        "bottom": {
            // id of bottom container
            "id": "bottom-container",
            // action button
            "button": {
                // id of the action button
                "id": "action-button",
                // actions during wheel phase
                "wheel": {
                    "stop": "STOP THE WHEEL",
                    "skip": "SKIP THE WHEEL"
                },
                // actions during tickup phase
                "tickup": {
                    "skip": "SKIP TICKUP"
                },
                // actions after tickup
                "end": {
                    "close": "CLOSE"
                }
            }
        },
        // enable touch controls during phase
        "touch": {
            // touch during wheel acts as stop / skip
            "wheel": {
                "stop": true,
                "skip": true
            },
            // touch during tickup acts as skip
            "tickup": true
        }
    },
    // ticker skin and font settings -
    // skin provided and customised by thrilltech
    "ticker": {
        "skin": "/ticker/Win_BG.skel",
        "font": "/fonts/rubik.woff",
        "fontFamily": "rubik",
        // maximum font size for the tickup
        "maxFontSize": 80,

        // https://developer.mozilla.org/en-US/docs/Web/JavaScript/Reference/Global_Objects/Intl/NumberFormat
        // the currency for the win amount as per ISO 4217 currency codes
        // optional, leave empty for no currency or monetary amount format
        "currency":"JPY",
        // A string with a BCP 47 language tag, optional
        "currencyFormat":"en-US"
    },
    // wheel skin and segments settings -
    // skin provided and customised by thrilltech
    "wheel": {
        "rotate": 0,
        "base": "/wheel/Wheel_of_Fortune.skel",
        // wheel has 8 segments, following is the order of tiers per segments
        "segments": [
            "mini",
            "super",
            "mini",
            "epic",
            "mini",
            "super",
            "epic",
            "super"
        ],
        // map of segment textures
        "skins": {
            "mini": "/skins/demo/mini.png",
            "super": "/skins/demo/super.png",
            "epic": "/skins/demo/epic.png"
        }
    },
    // jackpot animation skin -
    // skin provided and customised by thrilltech
    "pots": {
        "mini": {
            // path of the spine export containing the mini tier animation
            "source": "/pots/mini/Thrillpot.skel",
            // prefix of the animation for this tier
            "prefix": "",
            // sound clips for all animation phases
            "sfx": {
                "intro": ["/sfx/base/mini/intro.mp3"],
                "particles": ["/sfx/base/mini/confetti.mp3"],
                "tickup_start": ["/sfx/base/mini/tickup-start.mp3"],
                "tickup_loop": ["/sfx/base/mini/tickup-loop.mp3"],
                "outro": ["/sfx/base/mini/outro.mp3]"
            }
        },
        "super": {
            // path of the spine export containing the mini tier animation
            "source": "/pots/super/Thrillpot.skel",
            // prefix of the animation for this tier
            "prefix": "",
            // sound clips for all animation phases
            "sfx": {
                "intro": ["/sfx/base/super/intro.mp3"],
                "particles": ["/sfx/base/super/confetti.mp3"],
                "tickup_start": ["/sfx/base/super/tickup-start.mp3"],
                "tickup_loop": ["/sfx/base/super/tickup-loop.mp3"],
                "outro": ["/sfx/base/super/outro.mp3]"
            }
        },
        "epic": {
            // path of the spine export containing the mini tier animation
            "source": "/pots/epic/Thrillpot.skel",
            // prefix of the animation for this tier
            "prefix": "",
            // sound clips for all animation phases
            "sfx": {
                "intro": ["/sfx/base/epic/intro.mp3"],
                "particles": ["/sfx/base/epic/confetti.mp3"],
                "tickup_start": ["/sfx/base/epic/tickup-start.mp3"],
                "tickup_loop": ["/sfx/base/epic/tickup-loop.mp3"],
                "outro": ["/sfx/base/epic/outro.mp3]"
            }
        },
    },
    // particles animation skin -
    // skin provided and customised by thrilltech
    "particles": {
        "mini": {
            "source": "/particles/confetti/Thrillpot.skel",
            "prefix": ""
        },
        "super": {
            "source": "/particles/confetti/Thrillpot.skel",
            "prefix": ""
        },
        "epic": {
            "source": "/particles/confetti/Thrillpot.skel",
            "prefix": ""
        }
    }
}

SFX

Config contains sound definitions for various phases of the animation. All sounds are optional. Sounds per animation phase are defined as an array. All elements of the phase array refer to the same sound effect. The intention is to provide multiple sfx formats and the runtime will automatically pick the one supported on the client system. Recommended formats to use are webm, wav and mp3. wav has the widest support accross devices, but is not as optimal as webm and mp3 in terms of filesize.

"sfx": {
    "intro": ["/sfx/base/epic/intro.webm", "/sfx/base/epic/intro.wav"],
    "particles": ["/sfx/base/epic/confetti.webm", "/sfx/base/epic/confetti.wav"],
    "tickup_start": ["/sfx/base/epic/tickup-start.webm", "/sfx/base/epic/tickup-start.wav"],
    "tickup_loop": ["/sfx/base/epic/tickup-loop.webm", "/sfx/base/epic/tickup-loop.wav"],
    "outro": ["/sfx/base/epic/outro.webm", "/sfx/base/epic/outro.wav"]
}

Metrics

The ThrillPots system exposes Prometheus metrics per service via the /metrics endpoint.

Below is the list of metrics exposed per service:

ThrillPots Gateway

ThrillPots Service

Thrillpots Gateway

OpenAPI Spec: Download Open

Swagger API: Download Open

ThrillPots Service

OpenAPI Spec: Download Open

Swagger API: Download Open

ThrillGate

OpenAPI Spec: Download Open

Swagger API: Download Open

ThrillConnect

OpenAPI Spec: Download Open

Swagger API: Download Open

Thrill-ID

OpenAPI Spec: Download Open

Swagger API: Download Open

BitBridge

OpenAPI Spec: Download Open

Swagger API: Download Open

ThrillOffice

OpenAPI Spec: Download Open

Swagger API: Download Open

Multi-Currency Support

The ThrillPots Platform provides advanced multi-currency support. It uses bespoke a bespoke system of algorithms known as the Always Fair Multi-Currency system to provide operators with fine grained control over the multi-currency configuration aspects of their jackpots.

The Basics

At a basic level, every Jackpot has a base currency. This is the currency that the jackpot operates in at the lowest level.

In order to process contributions for players that may be using wallet currencies that are different from the jackpot's base currency, the platform uses exchange rates that are updated frequently by the system.

In this basic scenario, all contributions are based on the jackpot's base currency.

Example

A Jackpot is configured to have a base currency of EUR and accept a minimum contribution of €0.10. An opted-in player is using GBP as their wallet currency.

We know that EUR:GBP is not 1:1. For the purposes of this example, we will assume an exchange rate of 1:0.85.

Therefore, the GBP account player will be contributing a minimum of €0.10 to the jackpot, but in their transaction history, they will correctly see £0.085 being deducted from their account.

In this simple example, although the GBP player does not see an aesthetically pleasing bet amount for each contribution, they are wagering the correct amount into the jackpot. There are a few downsides with this approach, one of which is that the contribution amount in GBP may fluctuate over time depending on the prevailing exchange rate.

Always Fair Multi-currency Support

The Always Fair Multi-currency system allowed operators to define both minimum and maximum contributions on a per supported currency basis without compromising on the fairness and integrity of their jackpot maths.

With the system, the operator can specify more appealing and intuitive minimum (and maximum) contribution values as follows:

While this table of Jackpot Contribution sizes may look much better than if we simply used exchange rates to calculate the contribution value, a question of fairness does need to be raised.

What is the problem?

Lets imagine a EUR player is wagering €0.10 into a jackpot while a JPY player is wagering 10 JPY. Based on the above configuration, this will be accepted by the system. But what about fairness. If we simply "accepted" bets of different sizes into the jackpot, the JPY player would have an unfair advantage over the EUR player since the real world value of 10 JPY is not equal to €0.10 (based on the exchange rate at the time of writing, 10 JPY = ~€0.06). This would mean that there would be greater value to be contributing in JPY than in EUR.

This is where the Always Fair technology comes into play.

What does Always Fair actually do?

The Always Fair Multi-Currency system ensures that the maths of the jackpot is scaled proportionally to the currency being used for contributions. Therefore, in the example above, the Always Fair algorithms ensures that the JPY player has their probabilities of hitting the jackpot scaled based on the value of their contribution in relation to the base currency of the jackpot. (Yes, we know thats a lot!)

While the detailed workings of the algorithm are beyond the scope of this document, here are the important take aways about what the Always Fair Multi-currency system enables:

• Allowed minimum and maximum contribution values to bet set per currency
• Ensuring that regardless of currency, contributions are always processed fairly - no player will receive an unfair advantage

Multi-Currency Opt-ins

The system supports two distinct modes of operation when it comes to player opt-ins.

1. Simple Opt-in/Opt-out

In this mode (which is default), if a player opts-in with Currency A, they are opted in. If they are able to change their currency to Currency B, they will still be opted in. If the Jackpot has a minimum contribution size defined for the player's currency (Currency B), then the contribution will be based on that configured minimum. If the jackpot does not have a minimum contribution defined for Currency B, the players contribution will be the value of minimum contribution of the jackpot's base currency.

If the jackpot does support Currency B as an alternate currency and the player opts out while using Currency B, they will also be opted out for Currency A.

2. Per-Currency Opt-In/Opt-out

In this mode, players are required to opt-in on a per currency basis. For example, if Player A opts in while using Currency A, but later on changes to using Currency B, they will not be considered opted in while using Currency B. In this mode, the player will need to explicitly opt-in for Currency B as well.

This logic extends to opting out as well. If a player has opted in for Currency A and separately for Currency B and then layer opts out for Currency B, they are still considered opted in (but only for Currency A). This is an important factor when it comes to community payout jackpots where only opted-in players are considered when picking the community winners.

Environment Variables

Each service has a list of environment variables which define its configuration for runtime. Use this reference to understand what each environment variable does, what it is used for and the possible values it can contain.

Quick Links

• ThrillPots Gateway
• ThrillPots Service
• ThrillGate Service
• ThrillConnect Service
• Thrill-ID Service
• BitBridge Service
• ThrillOffice Service

ThrillPots Gateway

Back to Top

ThrillPots Service

Back to Top

ThrillGate Service

Back to Top

ThrillConnect Service

Back to Top

Thrill-ID Service

Back to Top

BitBridge Service

Back to Top

ThrillOffice Service

Back to Top

ThrillPots Event Structures

This section provides the data definitions (in JSON) for each of the ThrillPots events.

Event: JackpotUpdateEvent

{
    "id": String,
    "jackpot_type": "Jackpot" | "Raffle",
    "currency": String,
    "pots": [PotTicker],
    "allowed_brands": [String],
    "allowed_sources": [String],
    "status": String,
    "timestamp_start": Number | null,
    "timestamp_end": Number | null,
    "last_updated": Number
}

References:

• PotTicker

Event: WinEvent

{
    "brand_id": String,
    "player_id": String,
    "source_id": String,
    "instance_id": String,
    "jackpot_name": String,
    "jackpot_currency": String,
    "timestamp": Number,
    "win_pot_id": String,
        "currency_multipliers": {
            "brand_id": String,
            "base_currency": String,
            "multipliers": {
                "EUR": Number,
                "GBP": Number,
                "ZAR": Number,
                ...
                "NZD": Number,
                "SEK": Number
            }
        }
    "win_withheld": bool,
    "community_winners": [PayoutRecord],
    "games_in_jackpot": [String],
    "seed": Number,
	"metadata": null | Object,
}

References:

• CurrencyValue
• PayoutRecord

Event: RaffleWinEvent

{
    "brand_id": String,
    "instance_id": String,
    "jackpot_name": String,
    "jackpot_currency": String,
    "currency_multipliers": {
        "brand_id": String,
        "base_currency": String,
        "multipliers": {
            "EUR": Number,
            "GBP": Number,
            "ZAR": Number,
            ...
            "NZD": Number,
            "SEK": Number
        }
    }
    "timestamp": Number,
    "winners": [
        {
            "player_id": String,
            "brand_id": String,
            "currency": String,
            "win_amount": Number
        }
    ],
    "win_withheld": bool
}

References:

• CurrencyValue

The winners field contains an array of tuples. The structure of each tuples is (String, CurrencyValue). The first element in the tuple contains the ID of a winning player and the second element contains the amount that the player won.

Event: OptInEvent

{
    "instance_id": String,
    "player_id": String,
    "ext_player_id": String,
    "player_brand_id": String,
    "preferred_contribution_value": Number,
    "contribution_count": Number,
    "contribution_value": Number,
    "opted_in": Boolean,
    "last_updated": Number,
}

Event: CommunityPayoutErrorEvent

{
    "instance_id": String,
    "gameround_id": String,
    "tx_credit_id": String,
    "failed_payouts": [
        {
            "player_id": String,
            "brand_id": String,
            "currency": String,
            "win_amount": Number
        }
    ]
}

Event: RafflePayoutErrorEvent

{
    "instance_id": String,
    "failed_payouts": [
        {
            "player_id": String,
            "brand_id": String,
            "currency": String,
            "win_amount": Number
        }
    ]
}

Structure References

PotTicker

{
    "id": String,
    "is_progressive": Boolean,
    "current_value": Number,
    "community_split": Number | null
}

CurrencyValue

{
    "currency": String,
    "value": Number
}

PayoutRecord

{
    "player_id": String,
    "brand_id": String,
    "currency": String,
    "win_amount": Number,
    "reason": String,
}

Linked Jackpots

This feature allows jackpot instances to be linked together so that a contribution to one instance automatically results in a contribution to all linked instances. It is particularly useful in scenarios where multiple jackpots exist within a single game, for example Daily, Weekly, and Monthly raffles.

Previously, contributions had to be submitted individually for each jackpot instance. With this feature, links can be predefined, allowing a single request to result in a contribution to all associated instances.

API Version Compatability

Linked instances are supported only by the v2 contribution APIs, as this feature introduces a breaking change in the synchronous contribution response structure.

Automatic Contribution Propagation

A contribution to an instance is automatically applied to all directly linked jackpots. Only the links defined for the target instance (the instance being contributed to) are honored.

Failure Handling

• If the contribution to the main instance fails, contributions to linked instances will not be attempted.
• If a linked instance contribution fails (e.g., due to missing opt-in or validation failure), other linked instances will still be processed normally.

Opt-in Requirement

Opt-ins are not automatically propagated to linked instances. If a linked instance requires explicit opt-in, and the opt-in has not occurred, the contribution to that instance will fail with an error.

Example Scenarios

• Scenario 1: Weekly and Monthly raffles are linked to Daily raffle.
  • A contribution to Daily raffle propagates to Daily, Weekly, and Monthly.
• Scenario 2: Weekly is linked to Daily, and Monthly is linked to Weekly.
  • A contribution to Daily applies to Daily and Weekly, but not Monthly, since Monthly is not directly linked to Daily.
• Scenario 3: Weekly requires explicit opt-in, and the user has not opted in.
  • A contribution to Daily would result in an error for Weekly, but other linked instances (e.g., Monthly) would still process normally.

Managing Instance Links

Instance links are defined in linked_instances collection in thrillpots service database and can be managed via the following CRUD APIs:

• Retrieve links for an instance
  • Returns all linked jackpots defined for a given instance
• Set links for an instance
  • Updates an instance's links based on the provided input.
• Delete links for an instance
  • Removes all existing links for a given instance.

OAS and Swagger documentation

For more details on using this functionality, refer to the API documentation

NOTE: This is early documentation for the scheduling system and the documentation will be further extended over time with additional examples and more details

Advanced Scheduling

The ThrillPots system provides a relatively sophisticated sub-system which allows you to create schedules for your jackpot products.

It is important to understand what a schedule is in the context of ThrillPots.

At its core, a schedule is always bound to a Jackpot Instance. A schedule can be as simple as defining the date and time that a jackpot starts at, or defining an end date and time for jackpot.

Here are some interesting use cases that can be solved with schedules as well:

• Happy Hour Jackpot: Creating a jackpot that only accepts contributions during 17:00 and 18:00
• Promotional Jackpots: Creating a jackpot that only accepts contributions at peak times of site activity or to encourage players during low activity times
• Weekend Jackpots: Creating a jackpot that is only available on weekends

Schedules become even more powerful when used together with Raffle Jackpots. Raffle Jackpots are jackpots that resolve at the end of a predefined period of time. While players participate in the Raffle Jackpot by way of contribution (as with any other jackpot), raffle jackpots issue tickets to players based on either their Contribution or the base wager that they make into games.

Recurrence Rulesets

All the rules for the scheduling system revolve around "recurrence rules". Currently, recurrence rules are implemented for "Daily" and "Weekly" rulesets.

Daily rules

Daily rules define a set of hours within which the jackpot is available in. Traditionally, jackpot contributions are allowed during all hours of the day, but lets imagine that you wanted to create a jackpot that was only available during your site's "Happy Hour" which was between the hours of 7pm to 9pm UTC.

For such a rule to exist, you would only need to define a Daily recurrence rule which stipulated that the hours of 19:00 to 21:00 UTC were valid.

Weekly rules

Taking the example from above, lets imagine that we wanted to further constrain the available days of the raffle to be from Monday to Friday (no weekend contributions allowed!). In this case, we would create a "Weekly" ruleset which define the following days as being valid: Monday through to Friday.

As a last minute change, business might want to allow contributions to happen on a Saturday, but only between 08:00 UTC to 20:00 UTC. To allow this specificity of ruleset, we can apply an additional override for Saturday for those specific hours at the Weekly schedule level.

Technical Example

For a technical example of what a complete schedule as described above would look like, the following JSON structure accurately describes the ruleset. For arguments sake, we will define the schedule to start on the 1st of January 2024 UTC, with no end to the schedule.

To summarise, we will be creating a schedule that:

• Allows contributions to occur Monday, Tuesday, Wednesday, Thursday, Friday and Saturday
• From Monday to Friday, contributions will be allowed between 19:00:00 UTC and 21:00:00 UTC
• On Saturdays, contributions will be allowed between 08:00:00 UTC and 20:00:00 UTC

{
	"timestamp_start": 1704067200000,
	// No `timestamp_end` is specified since the schedule has no end
	"recurrence_rules": [
		{
			"frequency": {
				"Daily": {
					"hours": [
						[
							{ "hour": 19, "minute": 0, "sec": 0 }.
							{ "hour": 21, "minute": 0, "sec": 0 }
						]
					]
				}
			},
			"interval": 1, // 1 means "every day". 2 would mean "every second day"
		},
		{
			"frequency": {
				"Weekly": {
					"days": [
						["Mon", null].
						["Tue", null],
						["Wed", null],
						["Thu", null],
						["Fri", null],
						["Sat", {
							"Daily": {
								"hours": [
									[
										{ "hour": 8, "minute": 0, "sec": 0 },
										{ "hour": 20, "minute": 0, "sec": 0 }
									]
								]
							}
						}]
					]
				}
			}
		}
	]
}

As can be seen from this example, when defining the Weekly rule, each day of validity needs to be specified, along with any overrides to the underlying Daily rules that may exist.

Order of Precendence

It is important to note that any hourly overrides present in the Weekly ruleset will take precedence over those specified in the Daily rules.

How Scheduled Jackpots work

When a schedule is applied to a normal Jackpot Instance, the system performs some rudimentary initial checks (making sure that when the jackpot is created with a schedule in the future, that the status is correctly set to Pending).

Once the Jackpot Instance is Active, the applied schedule defines the periods of time during which contributions will be accepted by the Jackpot Instance. When the schedule is not accepting contributions, the Jackpot Instance will continue to be Active (this behaviour may change in the future).

How Scheduled Raffles work

When instantiating Raffle Jackpots, a schedule must be provided during instantiation time

The reason for this is due to the fact that raffles are fundamentally time-based entities with at least a start time and duration-per-raffle.

Raffles have an explicit duration which is defined as part of the Raffle Rules. Durations can be defined in units of Seconds, Minutes, Hours, Days or Weeks.

Raffles that have a schedule that is longer than a raffles duration are considered "recurring raffles" while raffles that have a schedule equal to their duration are considered "once-off raffles".

Lets examime a few examples to explore this concept:

Once off Raffles

Lets imagine a scenario where an operator wants to run a once-off raffle for the Festive season (Xmas) period which start from 00:00:00 UTC on the 1st of December 2024 and the raffle resolves (pays out) at 09:00:00 UTC on the 25th of December 2024.

Additional requirements for the raffle are that the raffle should only accept contributions between the hours of 8am CET until the end of each day.

In order to create a schedule for this type of raffle, we need to create rules that specify the hourly restrictions as well as the start and end of the raffle.

Example

{
	// Sunday, 1 December 2024 00:00:00
	"timestamp_start": 1733011200000,
	// Wednesday, 25 December 2024 09:00:00
	"timestamp_end": 1735117200000
	"recurrence_rules": [
		{
			"frequency": {
				"Daily": {
					"hours": [
						[
							{ "hour": 8, "minute": 0, "sec": 0 }.
							{ "hour": 23, "minute": 59, "sec": 59 }
						]
					]
				}
			},
			"interval": 1,
		}
	]
}

As can be seen in the example, the timestamp_start and timestamp_end have been set to the period of the Festive Season (December 1st, 2024 to December 25th 2024 respectively) and the hours of availability are set from 08:00:00 UTC to 23:59:59 UTC.

Since the jackpot is available on all days through the period, there is no need to define the Weekly ruleset.

In addition to the schedule, the raffle will also need to be configured to run for the duration of the schedule. In this case, the duration will be 24 days and 9 hours.

NOTE In general, you as an operator do not need to worry about the duration configuration as this is configured as part of the Jackpot template by the ThrillTech Jackpot Model design team and not something you as an operator need to worry about.

Daily Raffles

In this example, we will be configuring a Raffle jackpot that is available on all days of the week and will resolve (pay prizes to players) at 10pm UTC (22:00:00 UTC) each day. The raffle will start at 00:00:00 of each day and end when it resolves daily.

Example:

In this example, the raffle started on August 1st, 2024 at 00:00:00 UTC:

{
	// Thursday, 1 August 2024 00:00:00
	"timestamp_start": 1722470400000,
	"recurrence_rules": [
		{
			"frequency": {
				"Daily": {
					"hours": [
						[
							{ "hour": 0, "minute": 0, "sec": 0 }.
							{ "hour": 22, "minute": 0, "sec": 0 }
						]
					]
				}
			},
			"interval": 1,
		}
	]
}

In addition to the schedule, the raffle's duration will be defined to last 22 hours.

ThrillPots: Common Tasks / SOPs

** IMPORTANT NOTE **

This section only applies to Self-Hosted clients. SaaS customers will need to speak to their technical point-of-contact or customer success representative to request configuration changes to their service

This section will provide some Standard Operator Procedures for how to achieving various common tasks (both basic and advanced) within the ThrillPots system.

Basic Tasks

This section outlines various basic tasks that will be useful to you during the operation of the ThrillPots System.

Add a brand to the System

This process requires you to have a valid Thrill-ID token which can retrieved by authenticating with Thrill-ID. For more information, see the Thrill-ID section.

Overview

1. Add the new brand to the relevant organisation in Thrill-ID
2. Authenticate to retrieve a new token
3. Add the new brand to the relevant jackpot instance(s)

Example Data

• New brand ID: my-new-brand
• Existing brand IDs: ["brand1", "brand2"]
• Organisation ID: my-organisation
• Existing Jackpot Instance ID: 321e9e1b-8e7f-4329-bace-b8ec20b7543a

Steps

We need to add the brand to the relevant Organisation in Thrill-ID so that accounts associated with that organisation become aware of the new brand.

1. Add the new brand to the relevant organisation in Thrill-ID

• Service: Thrill-ID
• Method: PUT
• Path: /admin/organisations/my-organisation
• Content-Type: application/json
• Body:

{
	"units": [
		"brand1",
		"brand2",
		"my-new-brand"
	]
}

2. Authenticate to retrieve a new token

• Service: Thrill-ID
• Method: POST
• Path: https://thrillid.yourorg.com/accounts/auth
• Content-Type: application/json
• Body:

{
	"username": "example-account@yourorg.com",
	"password": "some_really_random_password"
}

Upon successful authentication, the response will look as follows (although the value of the tokens and access entities will be probably be different) and will contain the new brand that you added:

{
    "token": "eyJhbGciOiJIUzI1NiJ9...KydTfNYUSZFDEVNrQnWtKXNX_QYJ46RHn9tLu9qu5n",
    "refresh_token": "eyJhbGciOiJUzI1NiJ9...4lsmg2MWa3TGh6J_g51Q",
    "access_to": {
        "org_id": "my-organisation",
        "unit_ids": [
            "brand1",
            "brand2",
			"my-new-brand"
        ]
    }
}

4. Add the new brand to the relevant jackpot instance(s)

• Service: ThrillPots Service
• Method: POST
• Path: /instances/allowed_brand
• Content-Type: application/json
• Body:

{
    "instance_id": "321e9e1b-8e7f-4329-bace-b8ec20b7543a",
    "brand_id": "my-organisation:my-new-brand"
}

Create a new Jackpot Template and Jackpot Instance

This process requires you to have a valid Thrill-ID token which can retrieved by authenticating with Thrill-ID. For more information, see the Thrill-ID section.

Overview

1. Create a new Jackpot Template
2. Publish the Jackpot Template
3. Instantiate a Jackpot Instance from the Jackpot Template

Example Data

• Operator ID: my-operator
• Brand ID: my-brand

Steps

NOTE: The Operator and Brand must already exist in the system

1. Create a new Jackpot Template

• Service: ThrillPots Service
• Method: POST
• Path: /templates
• Content-Type: application/json
• Body:

{
    "name": "Quick Hit Template for Developers",
    "owner_id": "my-operator:my-brand",
    "currency": "EUR",
    "contribution_rules": {
        "opt_in_required": true,
        "contribution_type": {
            "Fixed": 0.1
        },
        "operator_contribution_percentage": 0
    },
    "house_hold_contribution": {
        "Percentage": 0.3
    },
    "win_selector_strategy": "Highest",
    "pots": [
        {
            "id": "minor",
            "contribution": {
                "Percentage": 0.25
            },
            "seed_contribution": {
                "Percentage": 0.85
            },
            "seed_strategy": {
                "initial_seed_value": 10,
                "min_reseed_value": 10,
                "fund_strategy": "CollectToMinReseed",
                "reseed_strategy": "Full"
            },
            "max_instantiation_count": null,
            "is_progressive": true,
            "supports_external_trigger": false,
            "pot_types": [{
                "HitRate": {
                    "max_magic_number": 5,
                    "cost_per_attempt": 0.1
                }
            }],
            "criteria": null,
            "max_pot_value": null
        },
        {
            "id": "major",
            "contribution": {
                "Percentage": 0.25
            },
            "seed_contribution": {
                "Percentage": 0.85
            },
            "seed_strategy": {
                "initial_seed_value": 100,
                "min_reseed_value": 100,
                "fund_strategy": "CollectToMinReseed",
                "reseed_strategy": "Full"
            },
            "max_instantiation_count": null,
            "is_progressive": true,
            "supports_external_trigger": false,
            "pot_types": [{
                "HitRate": {
                    "max_magic_number": 25,
                    "cost_per_attempt": 0.1
                }
            }],
            "criteria": null,
            "max_pot_value": null
        },
        {
            "id": "mega",
            "contribution": {
                "Percentage": 0.2
            },
            "seed_contribution": {
                "Percentage": 0.85
            },
            "seed_strategy": {
                "initial_seed_value": 1000,
                "min_reseed_value": 1000,
                "fund_strategy": "CollectToMinReseed",
                "reseed_strategy": "Full"
            },
            "max_instantiation_count": null,
            "reseed_amount": null,
            "is_progressive": true,
            "supports_external_trigger": false,
            "pot_types": [{
                "HitRate": {
                    "max_magic_number": 50,
                    "cost_per_attempt": 0.1
                }
            }],
            "criteria": null,
            "max_pot_value": null
        }
    ]
}

The response to this request, if successful, will contain the newly created template. Take a note of the id field for the next steps (We will refer to this as template-id)

NOTE If you want to control the ID assigned to the Jackpot Template, you can specify it by adding an id field to the root of the JSON object and giving it a custom identifier.

2. Publish the Jackpot Template

• Service: ThrillPots Service
• Method: POST
• Path: /templates/publish
• Content-Type: application/json
• Body:

{
    "owner_id": "my-operator",
    "template_id": "template-id",
    "publish": true
}

3. Instantiate a Jackpot Instance from the Jackpot Template

• Service: ThrillPots Service
• Method: POST
• Path: /templates/instantiate
• Content-Type: application/json
• Body:

{
    "template_owner_id": "my-operator",
    "template_id":  "template-id",
    "instance_owner_id": "my-operator",
    "instance_name": "New Jackpot Instance"
}

The response to this call will contain the details of the newly created Jackpot Instance. Take a note of the id field as this is the Jackpot Instance ID and is used in other calls like Adding a new Contribution Source

Add a new Contribution Source

This process requires you to have a valid Thrill-ID token which can retrieved by authenticating with Thrill-ID. For more information, see the Thrill-ID section.

Overview

1. Create a Contribution Source
2. Assign a Jackpot Instance to the Contribution Source

Example Data

• Operator ID: my-operator
• Brand ID: my-brand
• New source ID: my-new-source
• Existing Jackpot Instance ID: 321e9e1b-8e7f-4329-bace-b8ec20b7543a

Steps

NOTE: The Jackpot Instance, Operator and Brand must already exist in the system

1. Create a Contribution Source

• Service: ThrillPots Service
• Method: POST
• Path: /config/sources
• Content-Type: application/json
• Body:

[
    {
        "owner_id": "my-operator:my-brand",
        "source_name": "My New Source",
        "source_id": "my-new-source"
    }
]

2. Assign a Jackpot Instance to the Contribution Source

• Service: ThrillPots Service
• Method: POST
• Path: /config/sources/assignjackpot
• Content-Type: application/json
• Body:

{
    "owner_id": "my-operator:my-brand",
    "source_id": ["my-new-source"],
    "instance_id": "321e9e1b-8e7f-4329-bace-b8ec20b7543a"
}

Switching Jackpot Models

Jackpot model switching API handles the creation of new jackpot instances from a template combined with the process of transfering pot values, optins, sources, etc. from an existing one, while doing a number of validations on whether the result of the switch is appropriate.

This process requires you to have a valid Thrill-ID token which can retrieved by authenticating with Thrill-ID. For more information, see the Thrill-ID section.

Overview

1. Create a new Jackpot Template
2. Publish the Jackpot Template
3. Switch existing jackpot to the new model

Example Data

• Operator ID: my-operator
• Brand ID: my-brand
• Existing Jackpot Instance ID: 321e9e1b-8e7f-4329-bace-b8ec20b7543a
• New Jackpot Template ID: d4b6b464-79a7-4c2e-8982-b5781fc49020

Steps

NOTE: The Operator and Brand must already exist in the system

1. Create a new Jackpot Template

NOTE: Make sure to have the initial seed values for pots you are transfering money to set to zero. If not, an error will occur when attempting to switch models

2. Publish the Jackpot Template

3. Switch existing jackpot to the new model

• Service: ThrillPots Service
• Method: POST
• Path: /instances/switchmodel
• Content-Type: application/json
• Body:

{
    "source_instance_id": "321e9e1b-8e7f-4329-bace-b8ec20b7543a",
    "template_id": "d4b6b464-79a7-4c2e-8982-b5781fc49020",
    "template_owner_id": "my-operator:my-brand",
    "target_instance_owner_id": "my-operator:my-brand",
    "target_instance_name": "Example Instance 2",
    "pot_rules": [{
        "source_pot": "minor",
        "target_pot": {
            "minor": 1
        }
    }, {
        "source_pot": "major",
        "target_pot": {
            "minor": 0.05
            "major": 0.95
        }
    }, {
        "source_pot": "mega",
        "target_pot": {
            "minor": 0.2,
            "major": 0.1,
            "mega": 0.7
        }
    }],
    "transfer_optins": true,
    "reason": "Redistributing pot values",
    "dry_run": true
}

NOTES:

• Model switching does not support Raffle type jackpots;
• Transfer to pots with non zero initial seed is not allowed and will result in an error;
• All source pots must have a target and the whole pot amount value must be transferred;
• Transfer of opt-ins can only happen if the jackpot shape is not changed (number of pots, pot names, etc.);
• No changes will be persisted if the dry_run flag is set;

General Services

Thrill-ID

Thrill-ID is a centralised authentication and authorization rights used by the entire ThrillTech technology ecosystem. It manages authentication and authorisation for both User and Service accounts.

There are 3 main sub-systems within the Thrill-ID service:

• Systems
• Organisations
• Accounts

Systems describe the ThrillTech systems which comprise the ThrillTech technology platform (for example ThrillPots, Thrill-ID, ThrillPots Gateway, ThrillGate are all "systems"). Each system exposes its own unique set of Resources which are defined as part of the system.

Organisations define the organisations and units to which Accounts are related. Within the iGaming realm, an Organisation describes the operator and its underlying brands. Accounts can then be bound to either the Organisation as a whole, or a brand/organisational unit.

For example, lets take an example of an Operator called MegaBet which has 2 brands, namely MegaSportsBet and MegaCasinoBet. This organisation structure is defined as follows:

{
    "id": "megabet",
    "units": [
        "megasportsbet",
        "megacasinobet"
    ],
    "enabled": true
}

Finally, an Account describes either a User or Service account which can access and interact with the ThrillTech platform. Accounts can be restricted to specific System interactions, or have broad permissions across a number of System types. Accounts can be restricted not only to specific systems, but also to a subset of each system's exposed Resources.

IMPORTANT For the next sections, assume that all calls need to be authenticated. Authentication is done by passing your issued JWT token as a Bearer token in the Authorization header.

Creating a new Organisation in Thrill-ID

To create a new organisation in Thrill-ID, we use the POST /admin/organisations endpoint on Thrill-ID.

Example:

Request: POST http://localhost:9000/admin/organisations

Body:

{
    "id": "new_org_id",
    "enabled": true,
    "units": [
        "org_unit1",
        "org_unit2"
    ]
}

Once your new organisation is created, you are able to create user accounts for that organisation. It is important to note that if the organisation does not exist, attempts at creating accounts for the organisation will fail

Example: Backoffice User Account

A backoffice user account for user jackpot-manager@megabet.com which has access to both brands would most like have Write access to the ThrillPots system.

An example of such an account could look as follows:

Request: POST http://localhost:9000/admin/accounts

Body:

{
    "account_type": "User",
    "username": "jackpot-manager@megabet.com",
    "password": "password of your choosing",
    "org_unit": {
        "org_id": "megabet"
    },
    "permissions": [
        {
            "system_id": "thrillpots",
            "permissions": [
                {
                    "resource_id": "Instances",
                    "permission": "Write"
                },
                {
                    "resource_id": "Reports",
                    "permission": "Read"
                }
            ]
        }
    ],
    "enabled": true
}

Example: ThrillPots Integration Service Account

Now lets have a look at what a service account would look like if the service was intended to integrate with the ThrillPots Gateway service. This account will need Write access to jackpot Instances as well as Config access for the defined sources.

Request: POST http://localhost:9000/admin/accounts

Body:

{
    "account_type": "Service",
    "username": "thrillpots-integration-service@megabet.com",
    "password": "password of your choosing",
    "org_unit": {
        "org_id": "megabet"
    },
    "permissions": [
        {
            "system_id": "thrillpots",
            "permissions": [
                {
                    "resource_id": "Instances",
                    "permission": "Write"
                },
                {
                    "resource_id": "Config",
                    "permission": "Read"
                }
            ]
        }
    ],
    "enabled": true
}

Thrill-ID: Authenticating

In order to communicate with most APIs within the ThrillTech system you will need an authenticated token issued by Thrill-ID.

This section assumes that you have either been provided an account or have created an account as shown in the previous section.

Once you have the username and password for a valid account created in Thrill-ID, you will need the authenticate that account with Thrill-ID to retrieve a Bearer token for future use.

Example: Authenticating

In this example, we will assume that you have created an account with the following credentials:

username: "example-account@yourorg.com"
password: "some_really_random_password"

In order to authenticate with Thrill-ID and retrieve the account's token for use with other APIs, you need to make a call to POST /accounts/auth. For example, if the Thrill-ID service is hosted at https://thrillid.yourorg.com, the call would look like this:

• Request: POST https://thrillid.yourorg.com/accounts/auth
• Content-Type: application/json
• Body:

{
	"username": "example-account@yourorg.com",
	"password": "some_really_random_password"
}

Upon successful authentication, the response will look as follows (although the value of the tokens and access entities will be probably be different):

{
    "token": "eyJhbGciOiJIUzI1NiJ9...KydTfNYUSZFDEVNrQnWtKXNX_QYJ46RHn9tLu9qu5n",
    "refresh_token": "eyJhbGciOiJUzI1NiJ9...4lsmg2MWa3TGh6J_g51Q",
    "access_to": {
        "org_id": "thrilltech",
        "unit_ids": [
            "brand1",
            "brand2",
        ]
    }
}

Response Details

Using the Bearer Token

Once you have authenticated with Thrill-ID, you can pass the received token to future API calls within the ThrillTech system by setting the Authorization header to contain the token as a Bearer token, for example:

Authorization: Bearer eyJhbGciOiJIUzI1NiJ9...KydTfNYUSZFDEVNrQnWtKXNX_QYJ46RHn9tLu9qu5n

Refreshing tokens

To refresh a token for a User account, you can use the POST /accounts/refresh endpoint. Simply pass in the current token and refresh_token that you received from the initial authentication call and you will receive updated, valid tokens:

Example

• Request: POST https://thrillid.yourorg.com/accounts/refresh
• Content-Type: application/json
• Body:

{
	"token": "eyJhbGciOiJIUzI1NiJ9...KydTfNYUSZFDEVNrQnWtKXNX_QYJ46RHn9tLu9qu5n",
	"refresh_token": "eyJhbGciOiJUzI1NiJ9...4lsmg2MWa3TGh6J_g51Q"
}

If successful, the response will be the same as when you authenticated (just with new tokens):

{
    "token": "eyJhbGciOiJIUzI1NiJ9...KydTfNYUSZFDEVNrQnWtKXNX_QYJ46RHn9tLu9qu5n",
    "refresh_token": "eyJhbGciOiJUzI1NiJ9...4lsmg2MWa3TGh6J_g51Q",
    "access_to": {
        "org_id": "thrilltech",
        "unit_ids": [
            "brand1",
            "brand2",
        ]
    }
}

ThrillConnect Service

The ThrillConnect Service is designed to be an "edge" service, meaning that it can be deployed to the edge of your hosting environment and service requests from your frontend(s) as well as other services (both internal or 3rd party).

ThrillConnect provides the following API interfaces for your frontend to use:

• REST API (for information retrieval purposes)
• Authenticate WebSocket interface (for authenticated requests and ad-hoc event delivery)

ThrillConnect: ThrillPots REST API

ThrillConnect provides a REST API for your applications (frontend or otherwise) to safely retrieve information about jackpots that are running in the environment.

Retrieving a Jackpot for a particular Source

If you want to retrieve a jackpot for a specific source_id, you can call the following endpoint:

GET /v1/thrillpots/instances/source/:source_id/brand/:brand_id

This request will use the provided parameters to retrieve the most appropriate jackpot for the source_id, brand_id, player_id and country_code combination.

If you specific the player_id, you will also receive the opt-in status for that player in the response.

HINT: Once you have retrieved the Jackpot for a source, you can use the id of the Jackpot instance for when you need to opt a player in or out

Retrieving Currency Exchange Rates

If you need to retrieve the active exchange rates in use by the ThrillPots system, you can call the currencies endpoint:

GET /v1/currencies

This will retrieve the current exchange rates from the base currency of the system, for example:

{
    "last_updated": 1715126401000,
    "base_currency": "EUR",
    "multipliers": {
        "EUR": 1.0,
        "USD": 1.0762,
        "GBP": 0.8592,
        "CAD": 1.4753,
        "PLN": 4.311,
        ...
        "NZD": 1.7921,
        "AUD": 1.6303,
        "RON": 4.9753,
        "SGD": 1.4567,
        "SEK": 11.6761,
    }
}

Retrieving ThrillPots Sources

You can retrieve all configured sources for a specific brand by using:

GET /v1/thrillpots/sources?owner_id=XXX

The response to this query, if any sources have been configured for the owner_id will look something like this:

[
    {
        "owner_id": "thrilltech:brand1",
        "source_name": "site-wide",
        "source_id": "site-wide-source",
        "jackpots": [
            {
                "priority": 0,
                "owner_id": "thrilltech",
                "instance_id": "209cc142-ccb2-4e28-a763-0a031b560d74"
            }
        ]
    },
    {
        "owner_id": "thrilltech:brand1",
        "source_name": "Deposit jackpot",
        "source_id": "deposit-source",
        "jackpots": [
            {
                "priority": 0,
                "owner_id": "thrilltech",
                "instance_id": "0a031b56-4e28-a763-ccb2-2090d74cc142"
            }
        ]
    }
]

ThrillConnect: WebSocket API

ThrillConnect exposes an authenticated WebSocket API for use by your frontend or service applications.

Connecting to the WebSocket endpoint

In order to connect to the ThrillConnect WebSocket endpoint, create a WebSocket client and connect to:

ws://thrillconnect_service_host/v1/events/:operator_id/:brand_id

Example

ws://thrillconnect_service_host/v1/events/casino-group/awesome-brand?token=session_token_00001&currency=USD

Once a connection is established, ThrillConnect will attempt to authenticate the player using the token provided with your wallet/account system. This authentication will take place using the Authentication endpoint via ThrillGate.

If authentication is successful, the connection will remain open. If authentication fails, the connection will be closed with a 401 error.

WS Message Structure
